TP-6071 3/00 5Section 1 Specifications
1.7 Service Views
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
21
22
23
24
25
9
28
29
Service Side
Non-Service Side
14/15.5/23/24EOZ
11.5/13/19/20EFOZ
13/20EOZ
11/16/17.5EFOZ
26
14
20
27
HX-250000
1. Controller
2. Start/stop switch
3. DC circuit breaker
4. Hourmeter
5. Optional circuit breaker location
6. Customer load lead access connection (back of controller)
7. Remote start/stop and meter connector
(located on the back of the controller)
8. Mixing elbow (water outlet/exhaust outlet)
9. Air intake silencer
10. Lifting eye
11. Coolant overflow bottle
12. Pressure cap (coolant fill)
13. Fuel filter/separator
14. High water temp. shutdown sender (optional)
15. Fuel return line
16. Fuel injection pump
17. Belt guard
18. Oil fill
19. Seawater pump (water inlet)
20. Oil pressure sender (optional)
21. Oil drain valve and hose
22. Governor lever
23. Lube oil filter
24. Oil check
25. Fuel feed pump
26. Fuel inlet
27. High exhaust temp. shutdown switch
28. Heat exchanger drain
29. Heat exchanger
Not Shown
: Air intake heater (optional preheat kit required to make air intake heater functional).

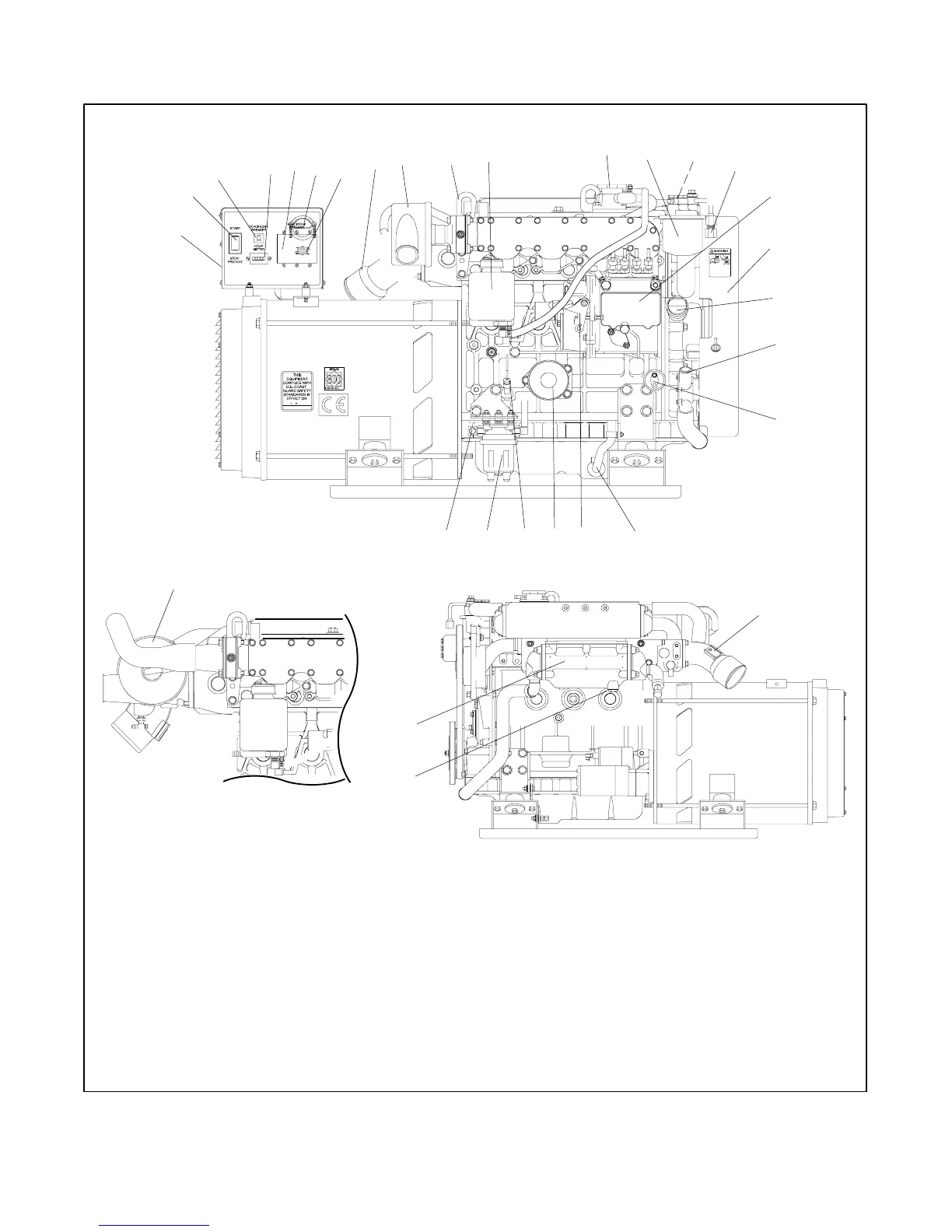

Figure 1-2 Service Views, Typical
