TP-6803 6/15 29Section 1 Installation
tp6803
PIM
RXT ATS
Generator Set
Notes:
D See Figure 1-17 for terminal block location on generator set.
Check the decal on the generator set for terminal block
connections.
D See Section 1.10.2, Cable Specifications (3 runs with 1 module
each shown).
D See Figure 1-24 for communication connection detail (A and B,
PWR and COM).
D Use splices or wire nuts to collect multiple leads for connection to
the generator set terminal block. See Figure 1-27.
Terminal
Block
Load
Shed
Kit

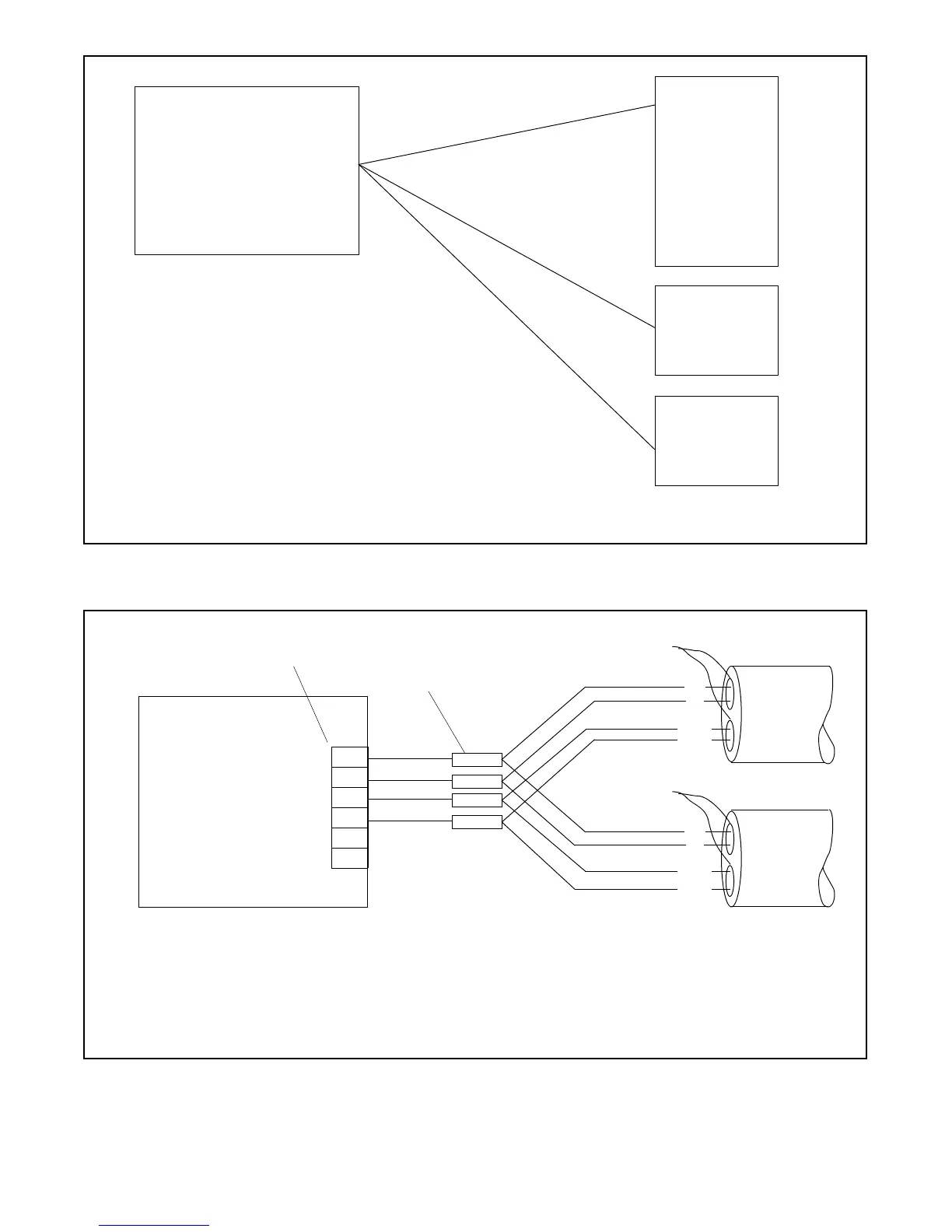

Figure 1-26 Accessory Module Connections (three cable runs with one module each)
2
tp6803
1. Generator Set Terminal Block. See the dimension drawings in Section 3 for location. Check the decal on the generator set for terminal
block connections.
2. Splice.
3. Connect all of the shield leads on this end to GROUND at the generator set.
Generator Set
COM
PWR
B
A
3
COM
PWR
B
A
SHIELDED
CABLE
A
B
COM
PWR
3
4
RBUS
12 VDC
1
3
SHIELDED
CABLE
Figure 1-27 Multiple Connections to the Generator Set
