TP-6803 6/15 Appendix 69
Appendix B Electrical Lead Entry Template
Use the full-scale drawing in Figure 1 to mark the openings for the electrical conduit, if desired. Two 13 mm (0.5 inch)
holes are also shown for the fuel regulator vent tubes, used only on 20 kW models. See Section 1.9.2 for more
information.
GM78090-B
SCALE: 1:1
Note: Dimensions are in mm.
Two 13 mm holes are needed for 20 kW models only.

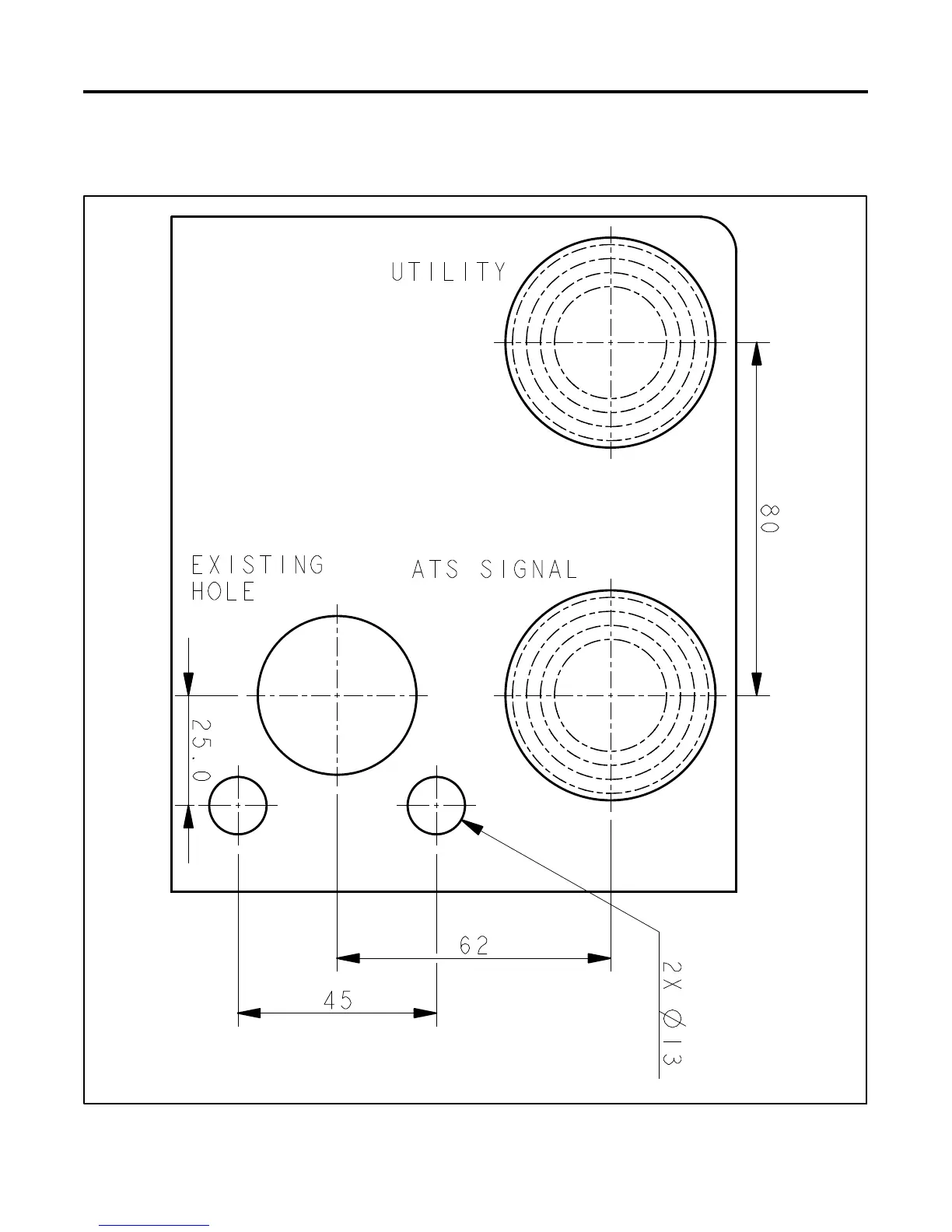

Figure 1 Template, Drilled or Punched Openings for Regulator Vent Tubes (20 kW only) and Electrical Conduit
