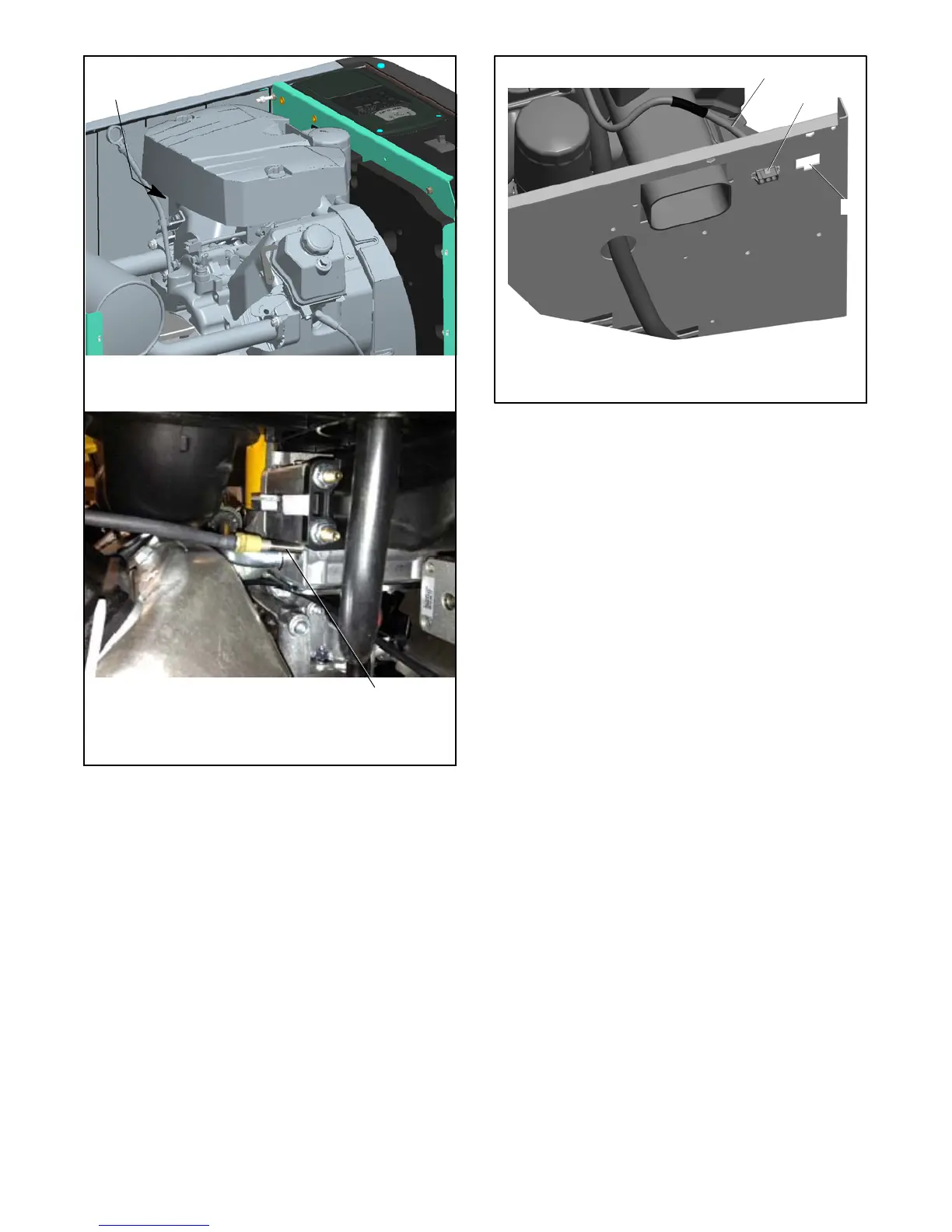

1. Carburetor heater location under air cleaner. Insert from the
back of the generator set.
2. Carburetor heater
Detail view:
Figure 2-11 Carburetor Heater Location on 2 0 kW
Models
2
GM57969-C
1. 240 VAC carburetor heater power cord
2. 240 VAC connector installed in bulkhead knockout
3. 120VAC receptacle location (for reference)
1
3
Figure 2-12 240 Volt Power Connection for
Carburetor Heaters
