Kohler 38RCLB

TP-6907 5/16 97Section 7 Disassembly/Reassembly
1. Air cleaner
2. Crankcase vent hose
3. Fuel intake hose
4. Fuel vacuum hose
5. ECM connections
6. HEGO sensor connections
7. Exhaust flange
8. Coolant hose
9. Air intake elbow
1
2
6
5
3
7
8
4
9
8

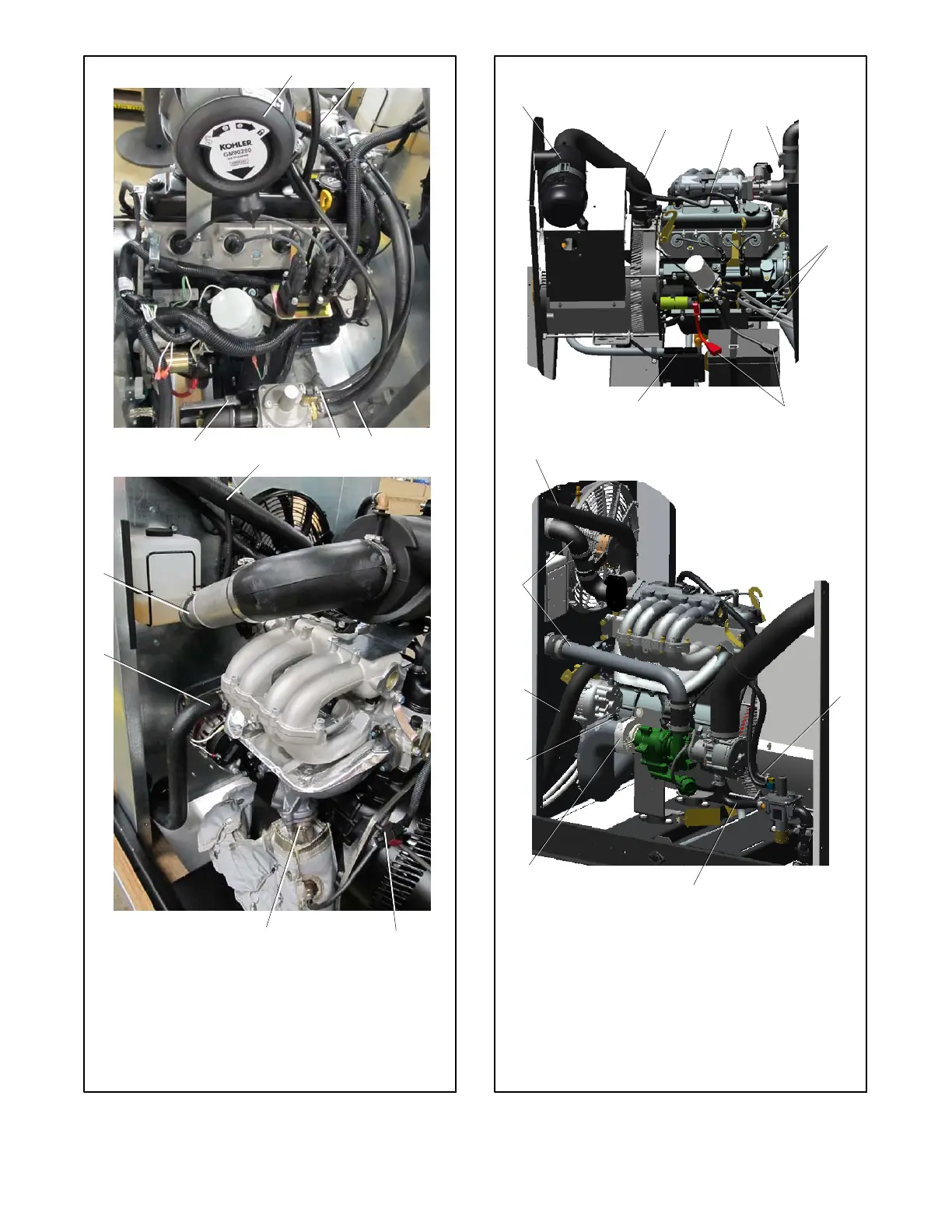

Figure 7-6 Engine Components, 24RCL
1. Air cleaner
2. Air intake elbow
3. Crankcase vent hose
4. MAP sensor
5. Oil cooler hoses
6. Battery cables
7. ECM connections
8. Fuel vacuum hose
9. Fuel intake hose
10. Exhaust flange
11. HEGO sensor
12. Coolant hoses
13. Coolant hoses, charge air cooler
1
idadv8663
3
6
7
5
12
10
13
12
11
8
9
2
4
Figure 7-7 Engine Components, 30RCL/38RCLB
