TP-6137 5/0358 Section 10 Generator and Engine Disassembly/Reassembly
Note: It is possible to connect the output leads in
various positions for different volt configurations.
Marks the leads for correct reconnection.

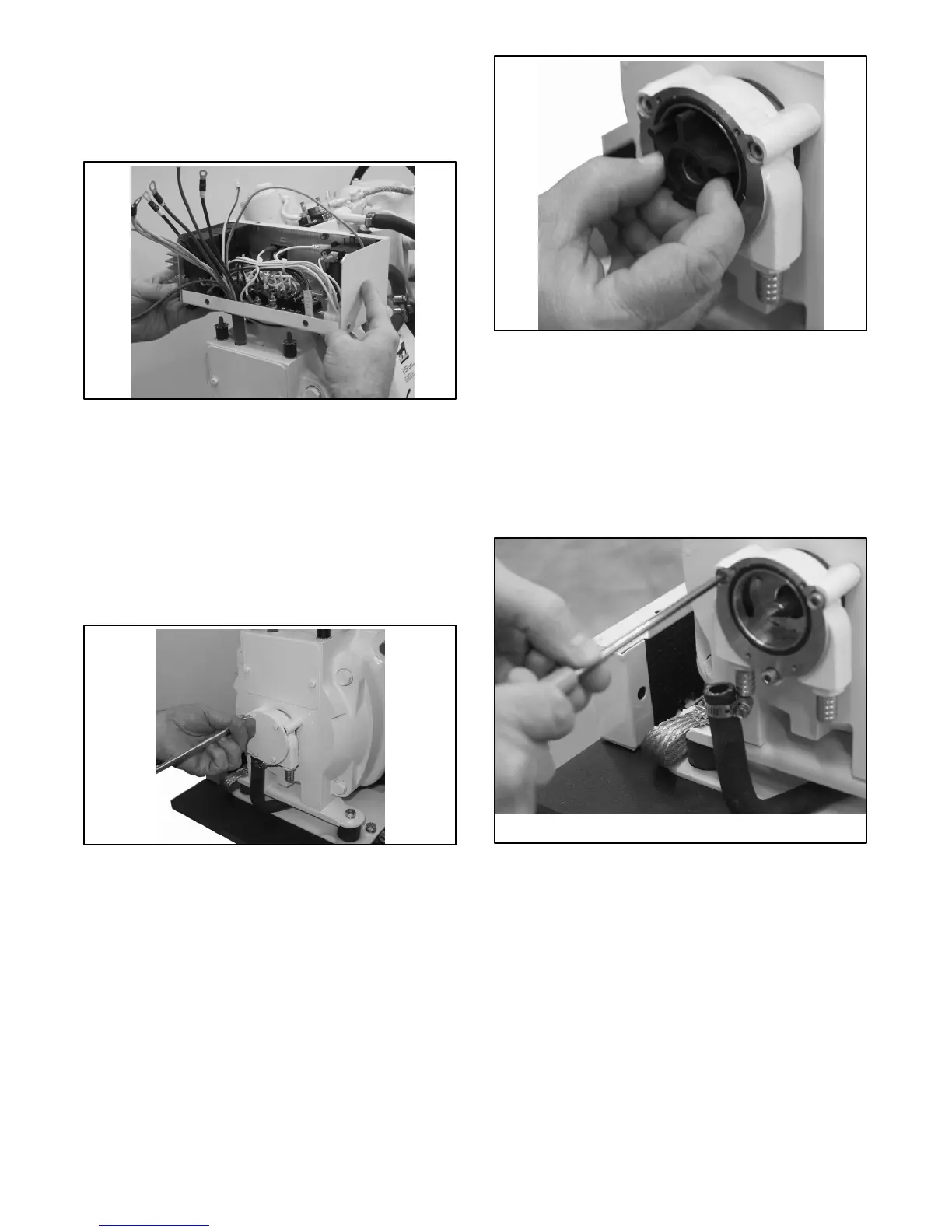

3. Carefully lift the controller box. See Figure 10-5.
Figure 10-5 Controller Box Removal
Seawater Pump Cover Removal
1. Using a 7 mm socket wrench, release the four
M4 x 8 screws from the seawater pump cover. See
Figure 10-6.
Note: Remove the entire seawater pump every time
alternator disassembly is required in order to
check electrical components.
Figure 10-6 Seawater Pump Cover Removal
Seawater Pump Impeller Removal
1. Carefully remove the seawater pump impeller from
its housing. See Figure 10-7.
Figure 10-7 Seawater Pump Impeller
Seawater Pump Housing Removal
1. After disconnecting the inlet and outer water tubes
from the seawater pump housing, loosen the three
M5 x 40 socket screws with a 4 mm setscrew
wrench.
2. Remove the housing from the alternator.
1. Seawater pump housing
1
Figure 10-8 Seawater Pump Housing
