TP-6137 5/0378 Section 10 Generator and Engine Disassembly/Reassembly

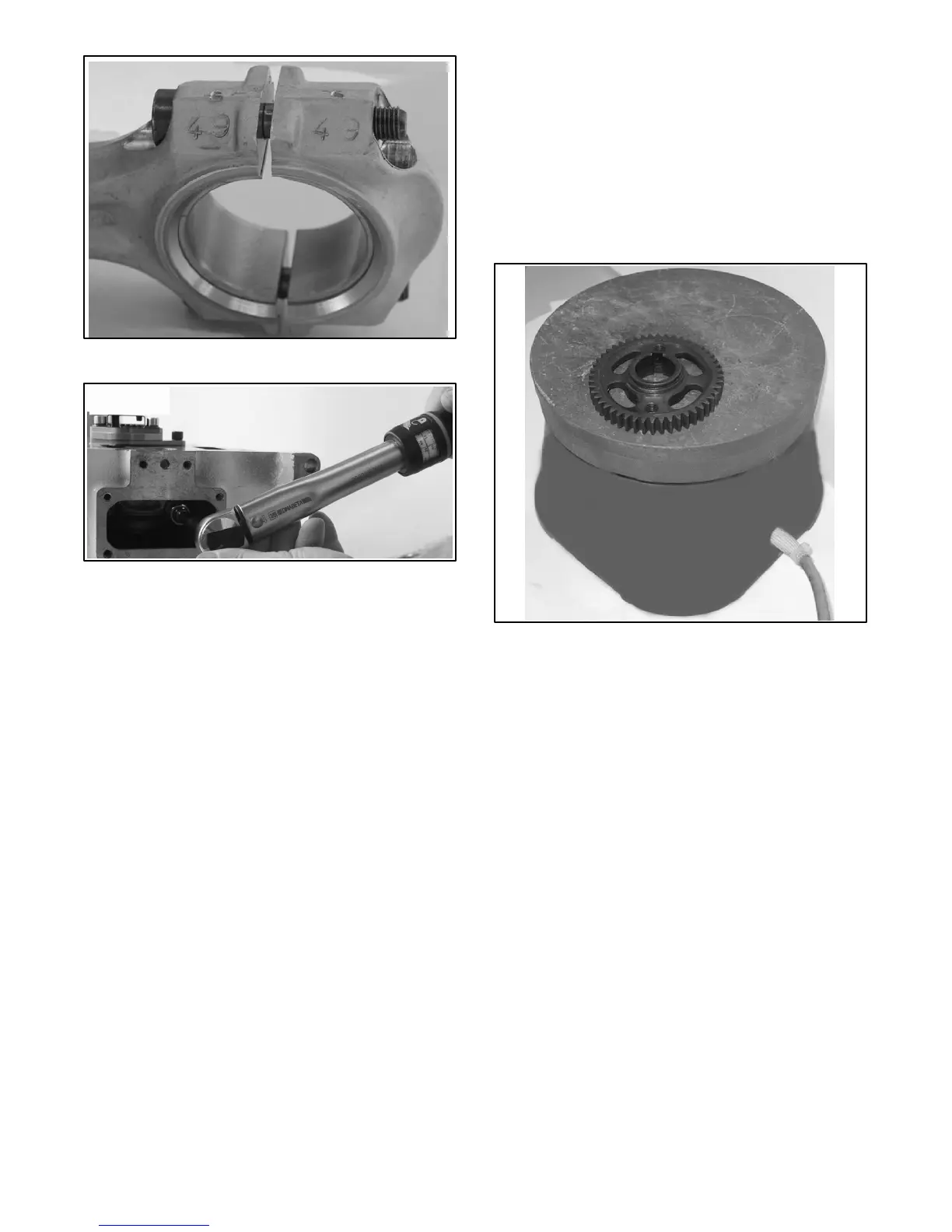

Figure 10-68 Connecting Rod
Figure 10-69 Connecting Rod
8. Install the oil cooler and screws torqued to the
specified value. See Section 1.5.
Camshaft Gear
1. Put the camshaft gear wheel in an oil bath or an
electric heater plate at a temperature of 90--100_ C
(95--210_ F). See Figure 10-70.
2. Using a socket and hydraulic press, push the gear
in its seat on the camshaft.
Note: For a correct gear adjustment timing, the chisel
mark on the gear must face the camshaft side.
Figure 10-70 Camshaft Gear
