TP-5393 9/93 Specifications 1-7
Controller
The Kohler relay controller has a rocker-type
momentarycontactSTART-STOPswitchforoperating
the set at the controller. Also included is a connector
for attaching a remote start/stop switch located inside
thevehicle. See Figure 1-1. The green GENERATOR
ON lamp on the optional remote control panel will light
whenever the generator is running. If the generator
set has automatically stopped due to low oil pressure,
3 1/2 psi ± 1 1/2 psi (24.1kPa) or less,the cause must
be eliminated before the set can be restarted.
1-905

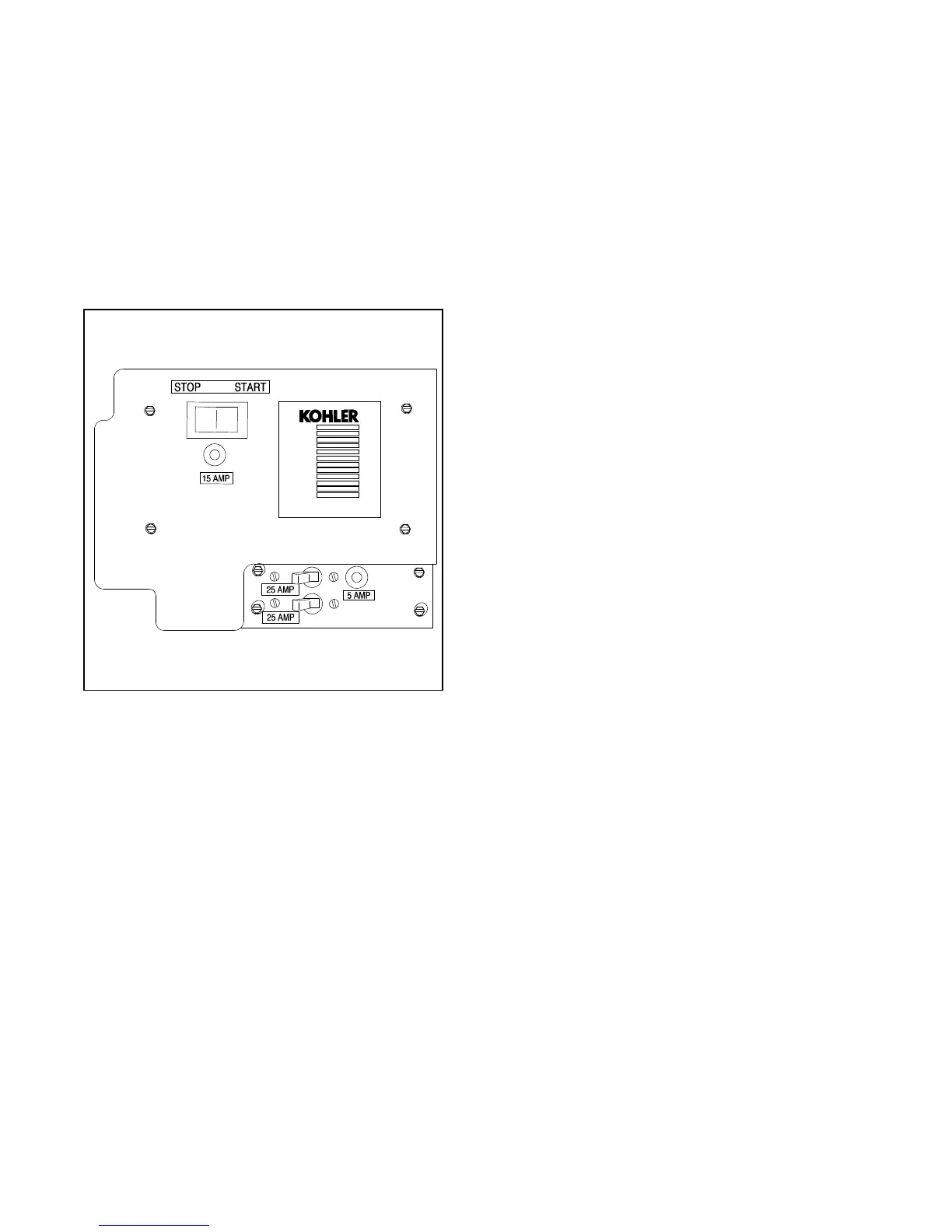

Figure 1-1. Controller
