Kohler 5CKM - Page 77

TP-5393 9/93 Installation 6-21
DX-277000-G
Muffler
Outlet
(278735)
Muffler
Outlet
(278997)
Muffler
Outlet
(278733)
Muffler
Outlet (278963)
Muffler
Outlet
(278734)
Exhaust Gasket (278320)
Screw
(X-6217-1) qty. 2
Muffler
Outlet
(278997)
Muffler
Outlet (278735)
Muffler
278621 Spark Arrestor
(Attach to end of tail pipe.)
Drill Screw
(X-794-3)
Muffler
Outlet
(278733)
Muffler
Outlet
(278963)
Muffler
Outlet
(278734)
Muffler
Outlet
(278963)
U-Clamp
(X-722-8)
Exhaust
Adapter
(278524)
Screw
(X-6217-2)
qty. 2
Kits:
PA-278640—muffler 278734
PA-278641—muffler 278735
PA-278761—muffler 278733
PA-278964—muffler 278963
PA-278998—muffler 278997

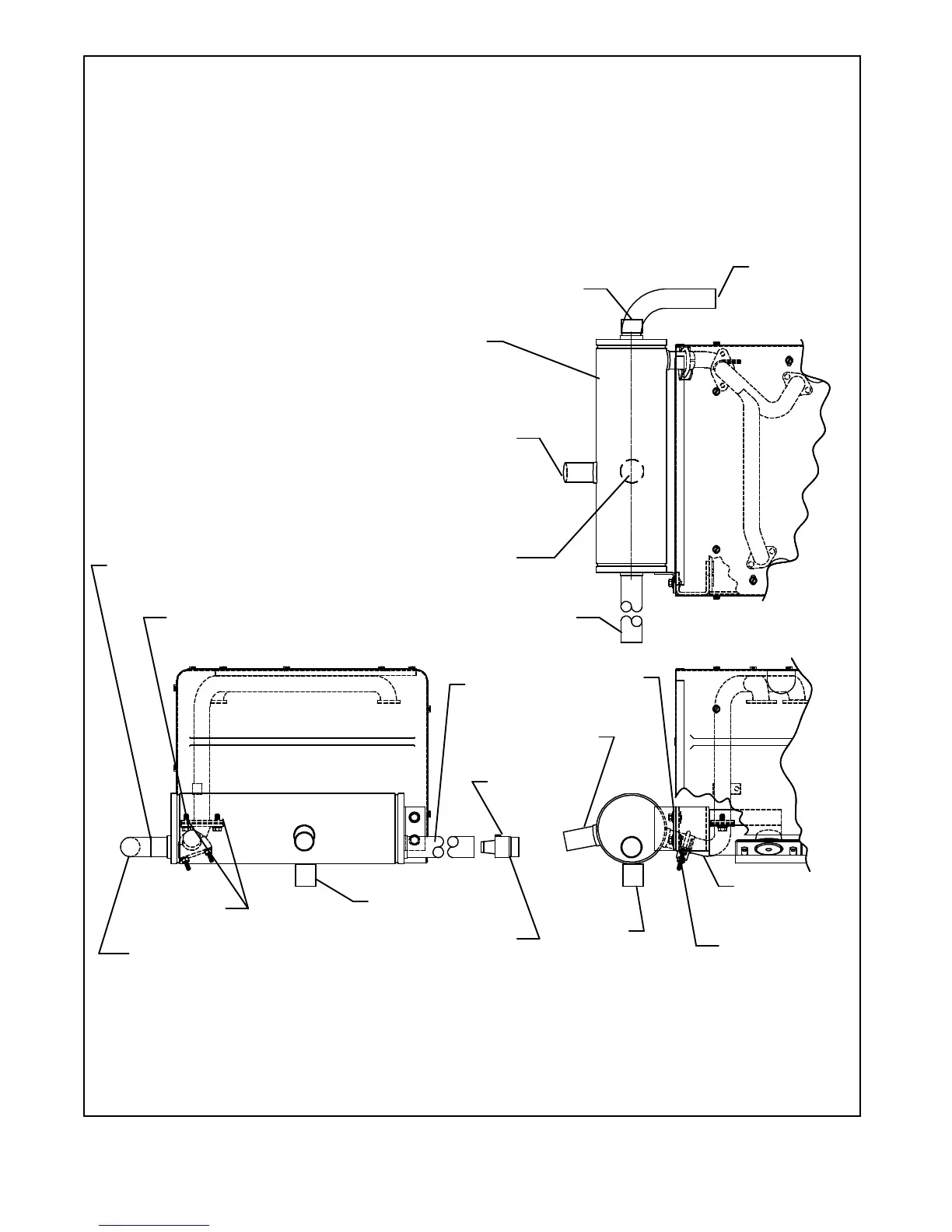

Figure 6-23. Exhaust Systems For 4/5 kW Generator Sets Mounted Below Floor
