6-26 Installation TP-5393 9/93
Remote Switch Assembly Digital Hourmeter
PAA-239419
Remote Switch
Harness
Part No. Length Connectors
PA-278682 3 Ft. 6-Pin, In-line male plug
PA-278681 1 Ft. Pigtail Leads
PA-278728 30 Ft. Both Ends
PA-278729 40 Ft. Both Ends
PA-278730 15 Ft. Both Ends
1
2
3
4
+
1
2
3
4
5
1. Requires a 4-pin (four square) to 6-pin (in-line) wiring harness
adapter for connection to the generator set.
2. Hourmeter
3. Top
4. On Light
5. Rocker Switch

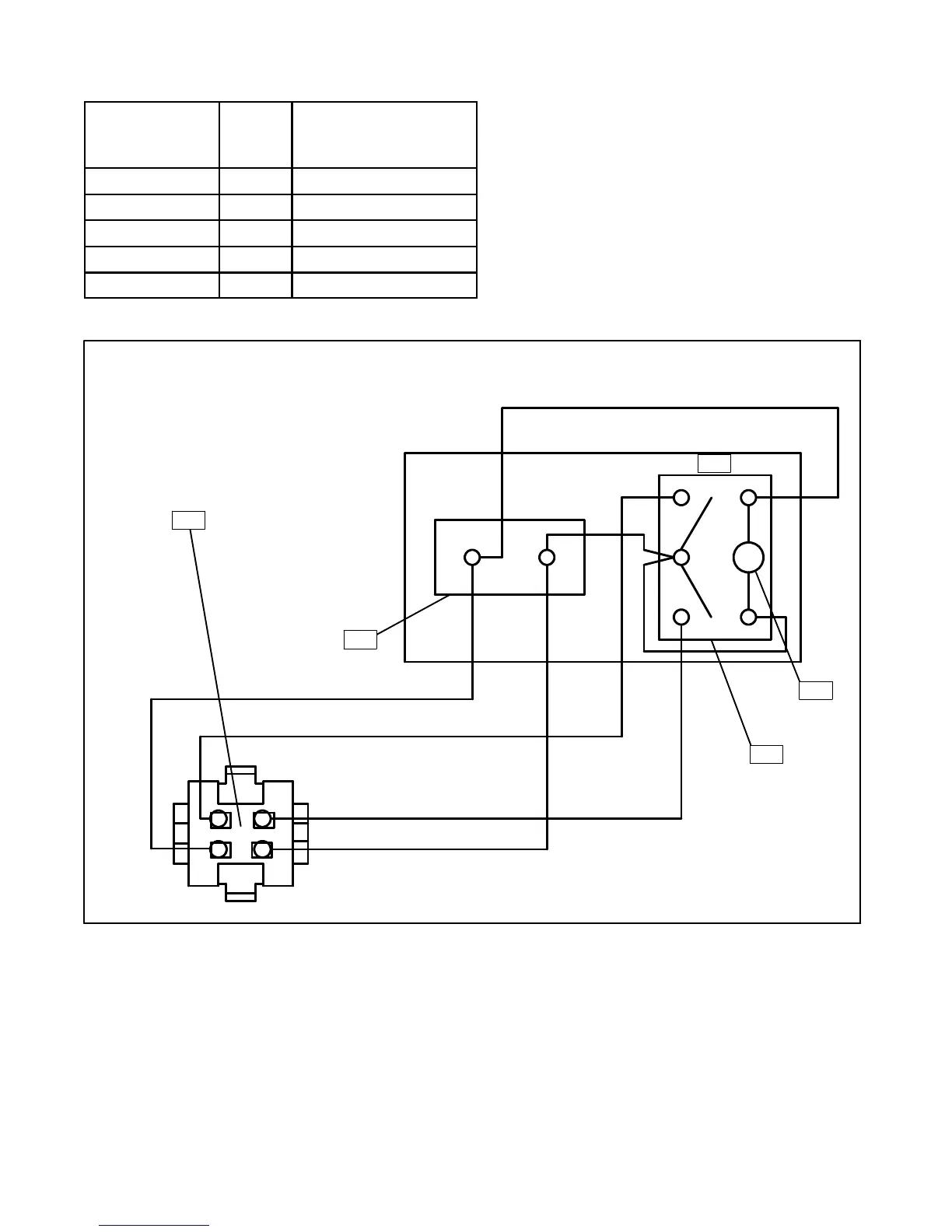

Figure 6-28. Remote Control Panel Wiring
