TP-6255 7/0682 Section 9 Generator Disassembly/Reassembly
22. Install a sling capable of handling the weight of the
stator housing on the stator housing. See
Figure 9-8.
23. Use a two-jaw puller to pull the end bracket/stator
assembly from the bearing on the rotor s haft. See
Figure 9-8.
24. Remove the s tator assembly from the rotor.
Remove or rotate the fan guard, if necessary, to
clear the vibromounts.
25. Mark the fan’s position on the rotor/drive disc
assembly with a permanent marker.
26. Remove the four screws with spacers and the four
screws without spacers. See Figure 9-9.
27. Remove the fan and fan spacers. See Figure 9-9.
28. Remove the eight bolts and remove the drive
disc/rotor assembly from the engine flywheel. See
Figure 9-10.
29. Clamp the rotor in a soft-jaw vise. Remove the eight
bolts and remove the drive disc assembly from the
rotor. See F igure 9-11.
558867
2
1. Sling
2. Fan guard
3. Two-jaw puller
1
3

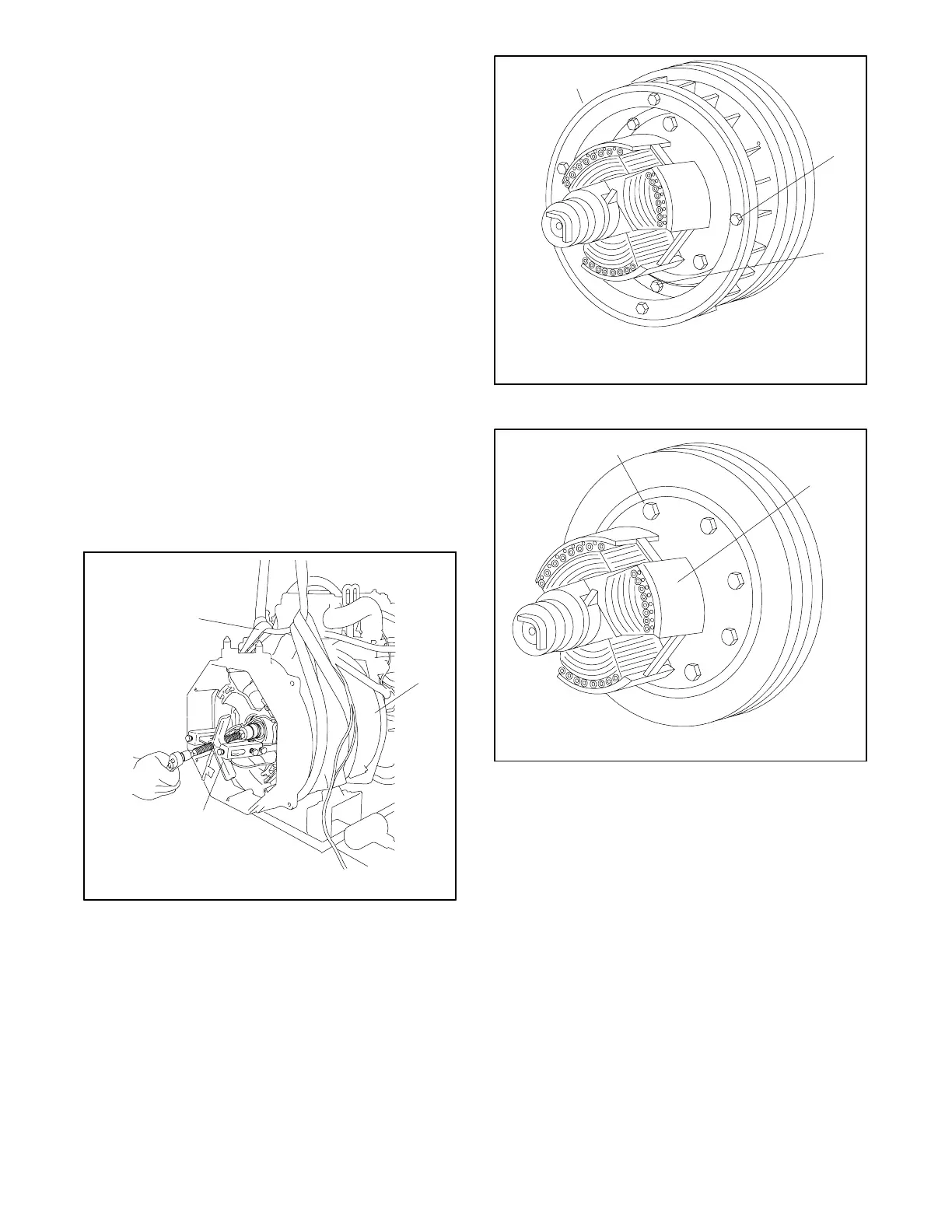

Figure 9-8 Stator Assembly Removal
558868
1
2
3
1. Fan
2. Screws with spacers (4)
3. Screws without spacers (4)
Figure 9-9 Fan Removal
558869
1. Bolts (8)
2. Rotor assembly
1
2
Figure 9-10 Disc/Rotor Assembly
