TP-6255 7/06 27Section 3 Intake and Exhaust System
TP-6071-32
1
2
3
4
5
6
7

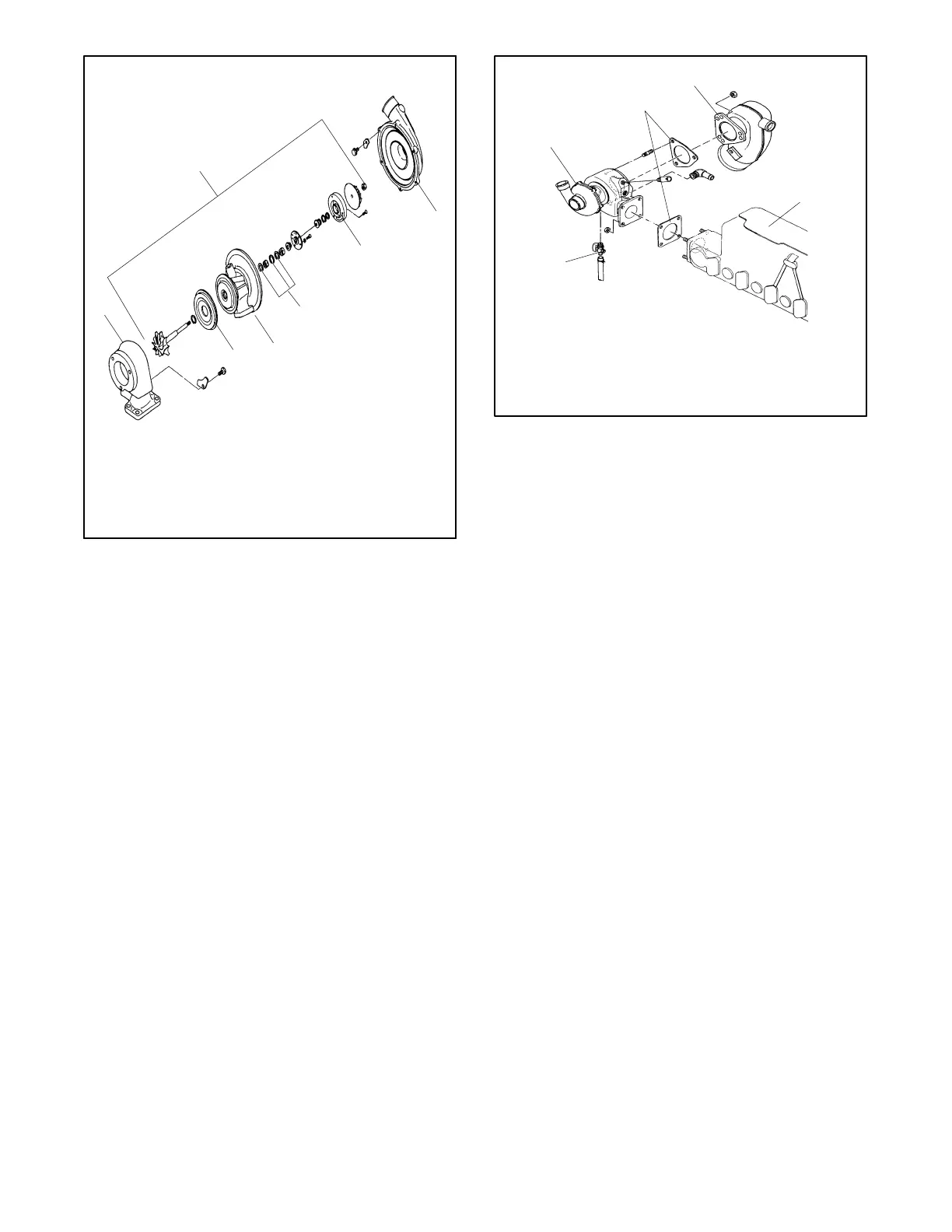

1. Compressor housing
2. Rotor assembly (turbo)
3. Housing assembly (blower)
4. Plate assembly (seal)
5. Circlips
6. Housing assembly (bearing)
7. Heat protector
Figure 3-3 Turbocharger Inspection
1
2
3
4
5
TP-6071-32
1. Turbocharger assembly
2. Gaskets
3. Exhaust elbow
4. Exhaust manifold
5. Petcock PT 1/8
Figure 3-4 Turbocharger Components, Typical
