TP-6252 2/0814 Section 1 Service Views
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working on the generator set.
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
WARNING
Sound Shield Equipped Models: For access to the
generator set to perform regular maintenance, remove
the sound shield doors and roof.
Sound Shield Roof and Door Removal
1. Open the service-side door.
2. Release the two quarter-turn fasteners located
underneath the roof. See Figure 1-2.
3. Lift up the roof.
4. Slide the roof towards the service side of the unit for
removal.
5. Open the front, rear, and non-service side doors as
needed.
1
1. Sound shield roof
2. Quarter-turn fastener
3. Alternator-end door
4. Service-side door
5. Front rail
6. Engine-end door
2
2
4
3
5 6

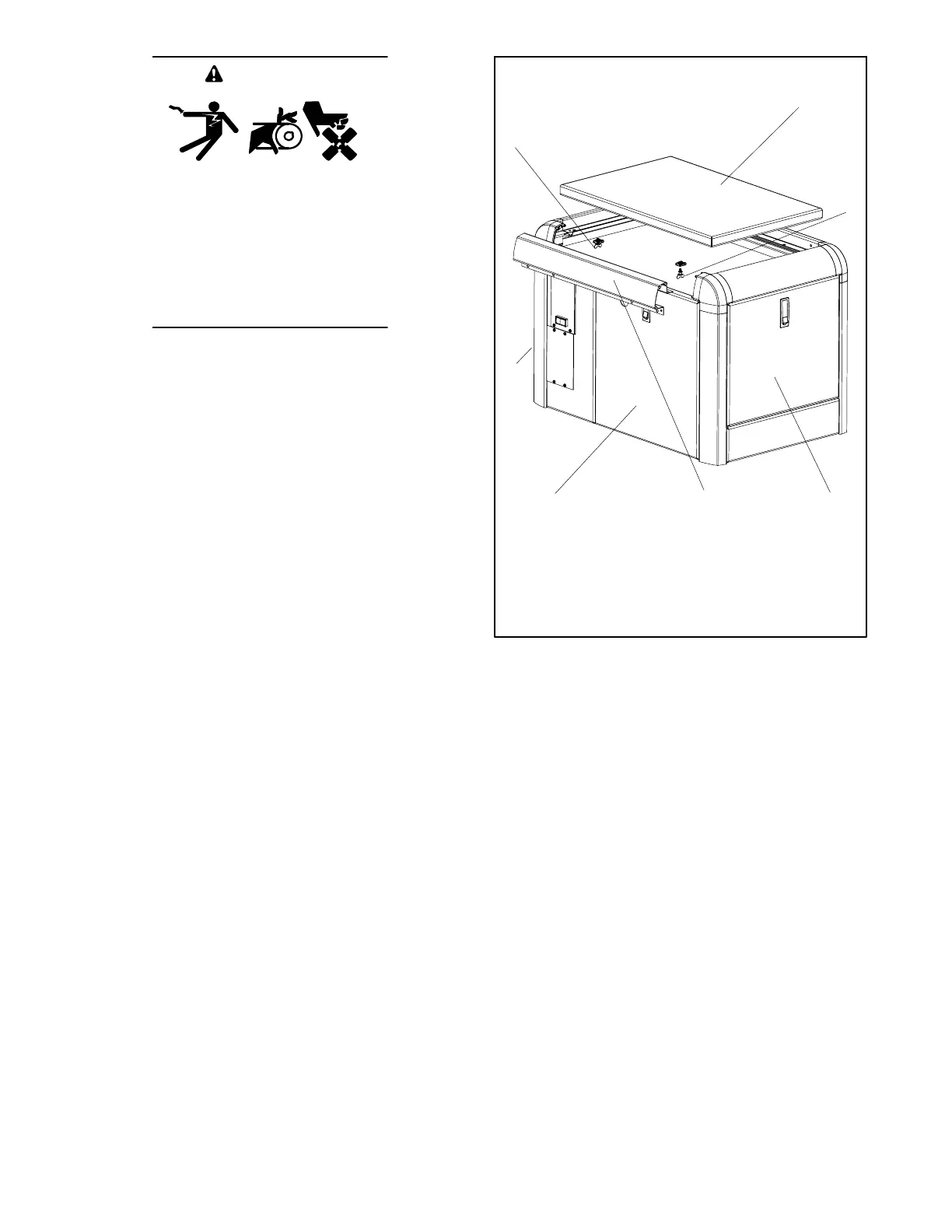

Figure 1-2 Sound Shield Roof Removal
