TP-6252 2/08 13Section 1 Service Views
Section 1 Service Views
1. ADC 2100 Control
2. Run-Off/Reset-Auto switch
3. Nameplate
4. Mixing elbow (water outlet/exhaust outlet), far side
5. Air intake silencer/cleaner
6. Lifting eye
7. Coolant overflow bottle (location varies by model)
8. Fuel f eed pump
9. Oil check/dipstick
10. Coolant pressure cap
11. Coolant overflow tube
12. Oil fill (engine top)
13. Lube oil filter
14. Fuel f ilter
15. Oil fill (front gear cover)
16. Seawater pump and water inlet
17. Oil drain valve and hose
18. Strain r elief for the load lead cable
19. Alternator cooling air inlet
20. AC circuit breaker panel
21. Anticorrosion zinc anode (seawater drain) (all models except
13--24EOZD & 11--20EFOZD models)
22. Belt guard
23. V-belts
24. Engine coolant drain (all models except 13--24EOZD &
11--20EFOZD models)
25. Heat exchanger (all models except 13--24EOZD &
11--20EFOZD models)
26. Heat exchanger (13--24EOZD & 11--20EFOZD models, internal
to exhaust manifold)
27. Seawater drain (13--24EOZD & 11--20EFOZD models)
28. Engine coolant drain (13--24EOZD & 11--20EFOZD models)
1 6 12
15
14
16
13
25
24
21
17
8 97 11105
18
3 4
2322 ADV-6843-
2
2019
26 2827
13--24EOZD & 11--20EFOZD Models
Non Service-Side View
GM30645D-

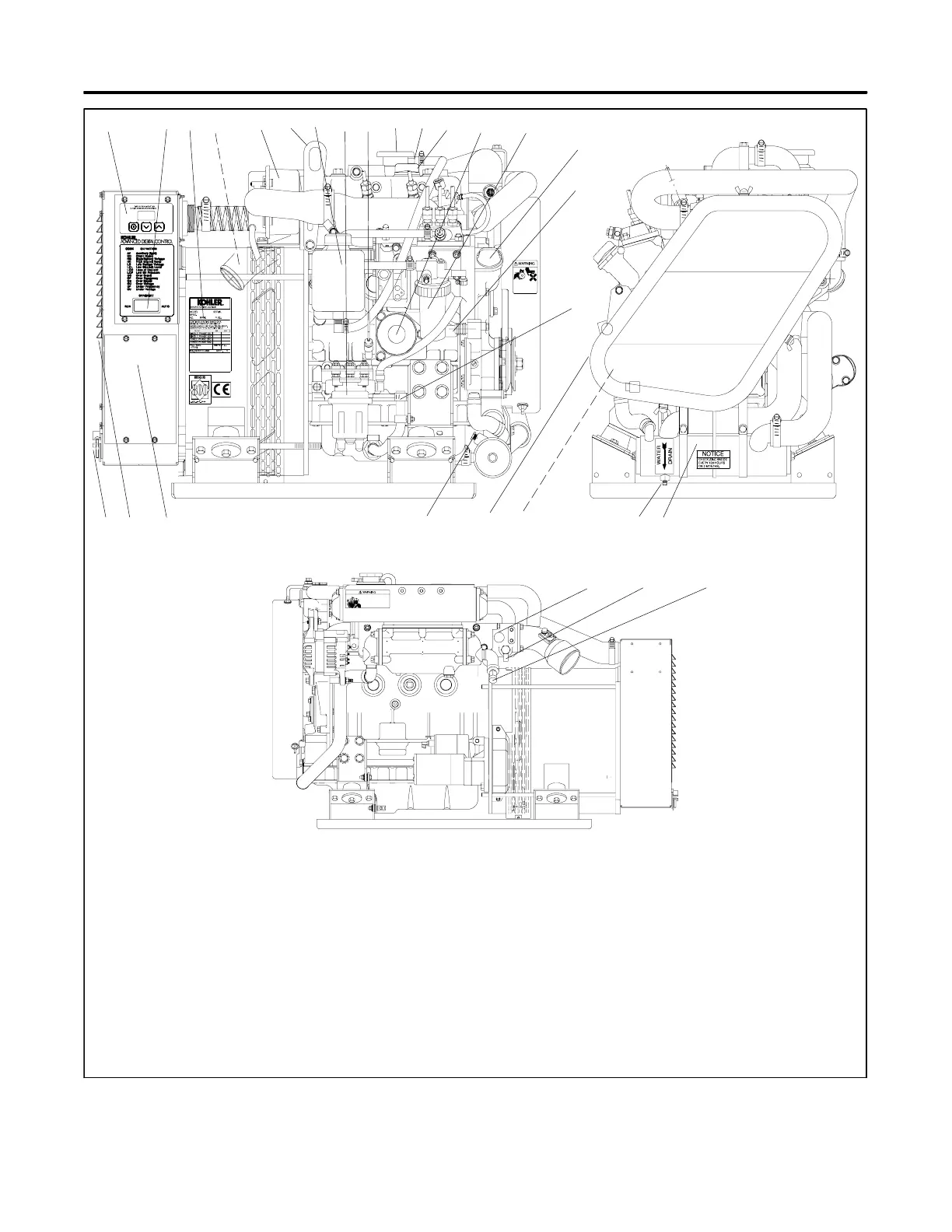

Figure 1-1 Service Views—Typical (8EOZD Model Shown Unless Noted)
Note:
Consult installation drawings in the spec sheet or installation manual for fuel and battery connection points. Consult an authorized
distributor/dealer or the service manual for items not shown.
