TP-6053 7/04 3Section 1 Specifications
A-358000A-A
1
24567 89
12
13
14
15
1617181920212223
25 28
30
31
32
29
33
103
11
24
27
1. Start/stop switch
2. Controller
3. Nameplate
4. Hourmeter
5. DC circuit breaker
6. AC circuit breaker
7. Air cleaner
8. Coolant recovery bottle
9. Pressure cap
10. Fuel return connection
11. High water temperature shutdown switch
12. Oil fill
13. Seawater pump (water inlet)
14. V-belts
15. Heat exchanger
16. Coolant drain (fresh water)
17. Anticorrosion zinc anode
18. Fuel filter
19. Oil filter
20. Oil drain valve and hose
21. Fuel feed pump
22. Oil check
23. Fuel inlet connection
24. Low oil pressure safety shutdown switch
25. Wet exhaust manifold
26. Thermostat
27. AC load lead connector
28. Remote start connector
29. High exhaust temperature safety shutdown switch
30. Mixing elbow
31. Engine starter
32. Water temperature sender
33. Battery charging alternator
26

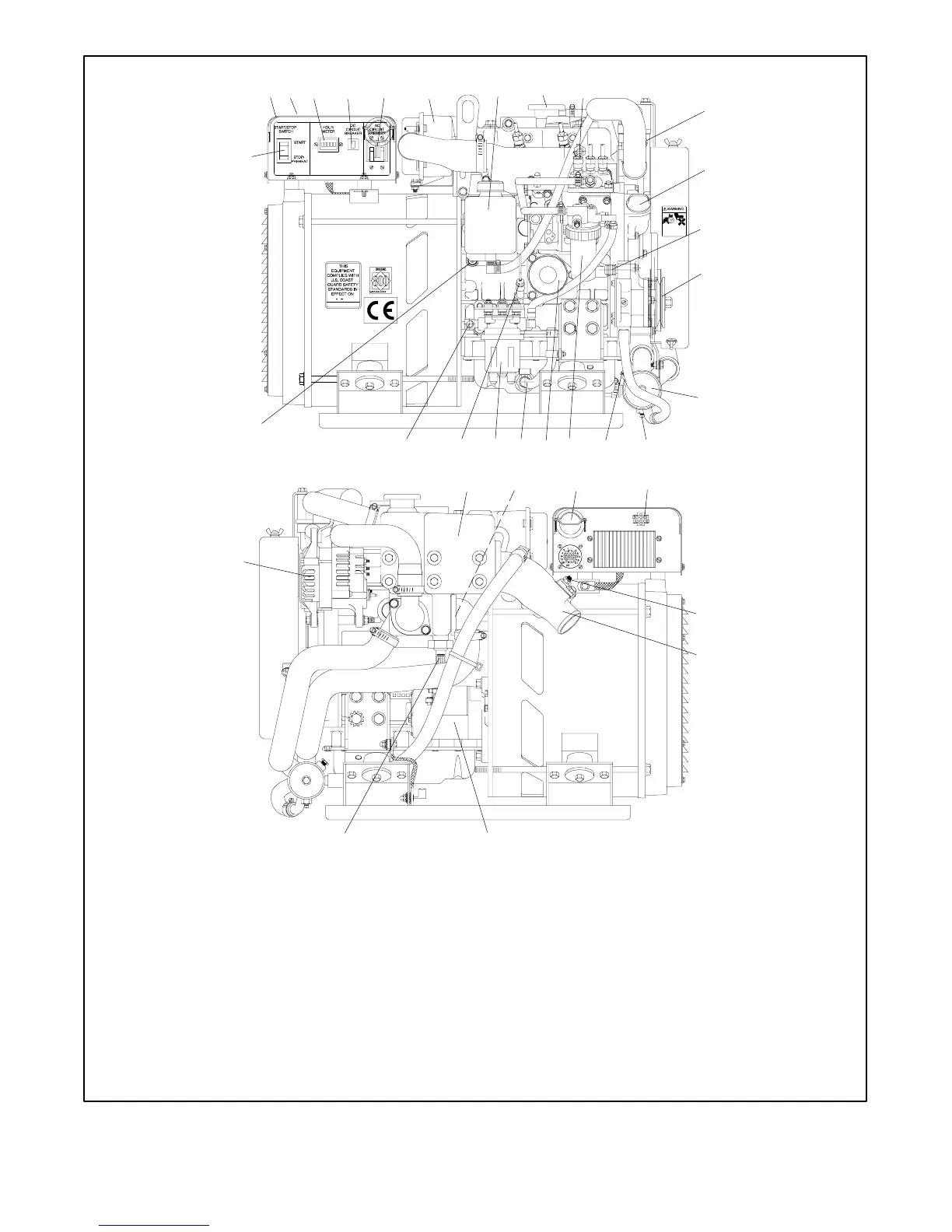

Figure 1-2 Generator Set Service View (8EOZ/6.5EFOZ)
