TP-6053 7/044 Section 1 Specifications
A-358000A-A
1
2
4567 9 1011
13
14
151617181920
21
26
27
28
29
23
11
303132
33
34
83
22
25
12
1. Start/stop switch
2. Controller
3. Nameplate
4. Hourmeter
5. DC circuit breaker
6. AC circuit breaker
7. Air cleaner
8. Coolant overflow bottle
9. Low oil pressure safety shutdown switch
10. Pressure cap
11. Oil fill
12. High water temperature safety shutdown switch
13. V-belts
14. Seawater pump (water inlet)
15. Fuel filter
16. Oil drain valve and hose
17. Oil filter
18. Fuel feed pump
19. Fuel inlet connection
20. Oil check
21. Coolant drain (fresh water)
22. Fuel return
23. Wet exhaust manifold
24. Thermostat
25. AC load lead connector
26. Remote start connector
27. High exhaust temperature safety shutdown switch
28. Mixing elbow
29. Anticorrosion zinc anode
30. Engine starter
31. Heat exchanger
32. Coolant drain (fresh water)
33. Water temperature sender
34. Battery charging alternator
24

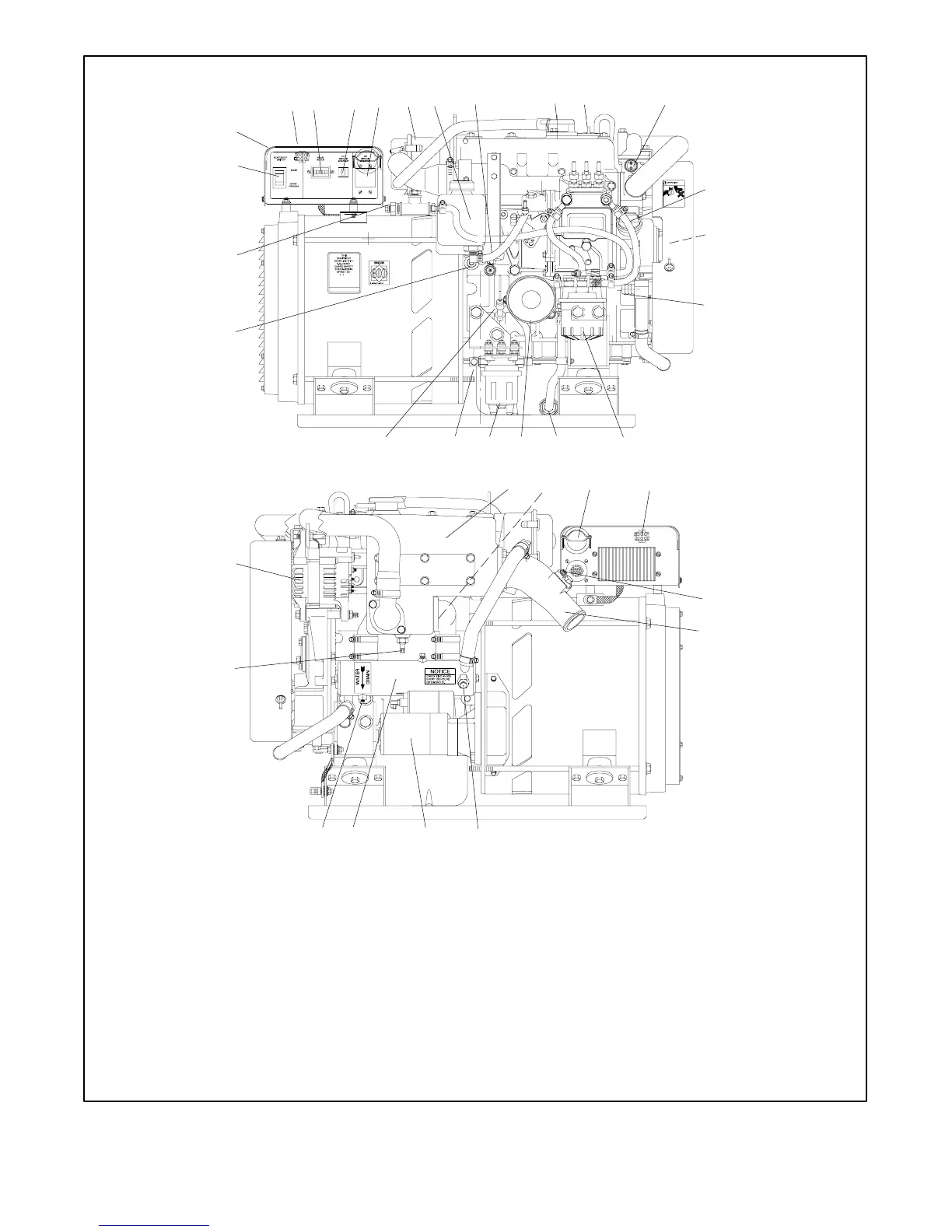

Figure 1-3 Generator Set Service View (9/10EOZ and 8/9EFOZ)
