TP-6774 2/14a 93Section 9 Generator Disassembly/Reassembly
1
GM76137
1. Junction box
2. Preheat relays (qty. 2) located inside junction box
3. F1, F2, and F3 fuses (qty. 3)
4. Fuse holders (qty. 3)
5. Line circuit breaker cover plate
6. GRD lead connection
7. LO lead connection
8. Cable connector
9. Bushing
10. Vibromounts (qty. 4)
11. Junction box controller panel
12. Screws and washers (qty. 4)
13. Advanced Digital Control IId
14. Battery charging module (shown removed from inside of the
junction box)
6
7
10
2
5
4
3
9
8
11
12
13
14

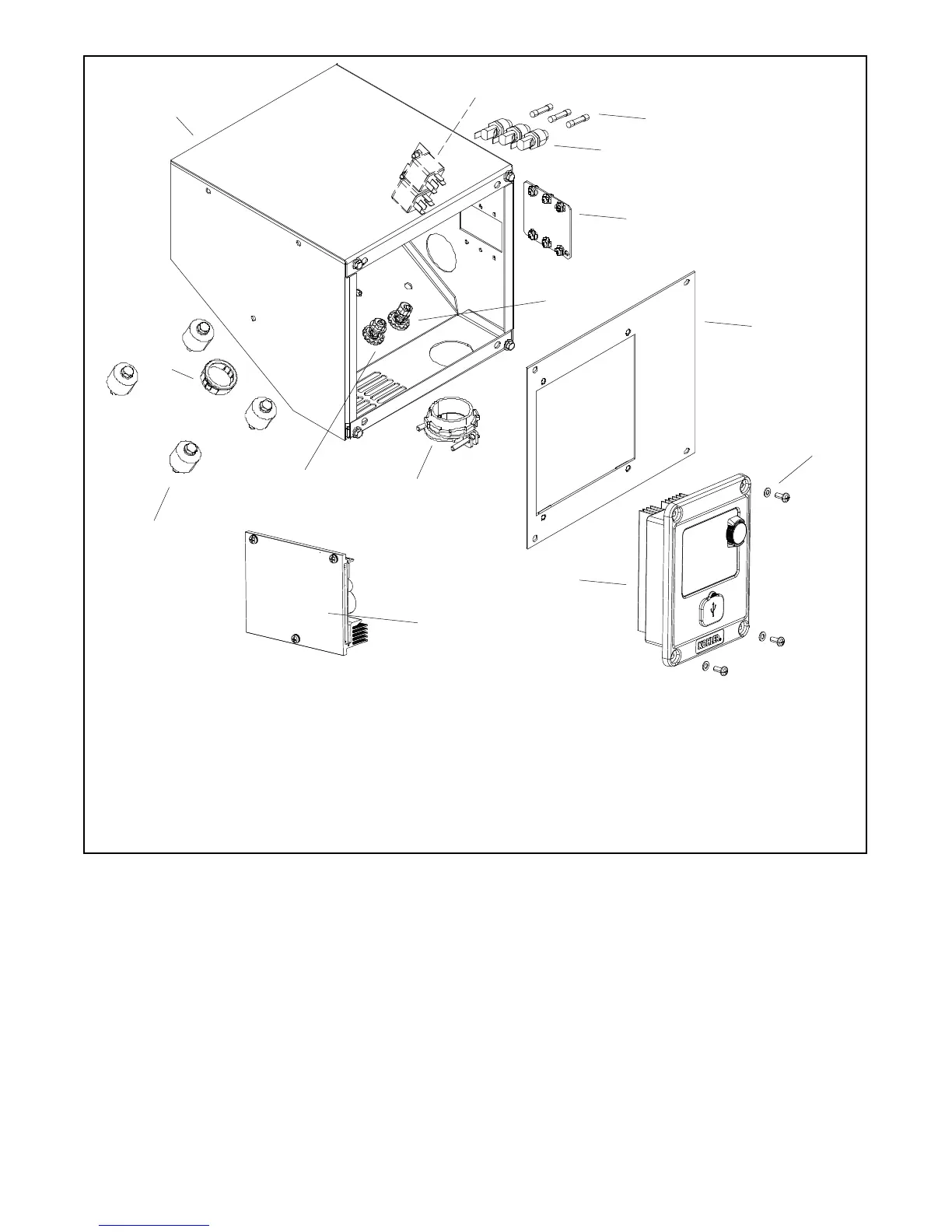

Figure 9-4 Advanced Digital Control IId (ADC IId) and Junction Box Detail
