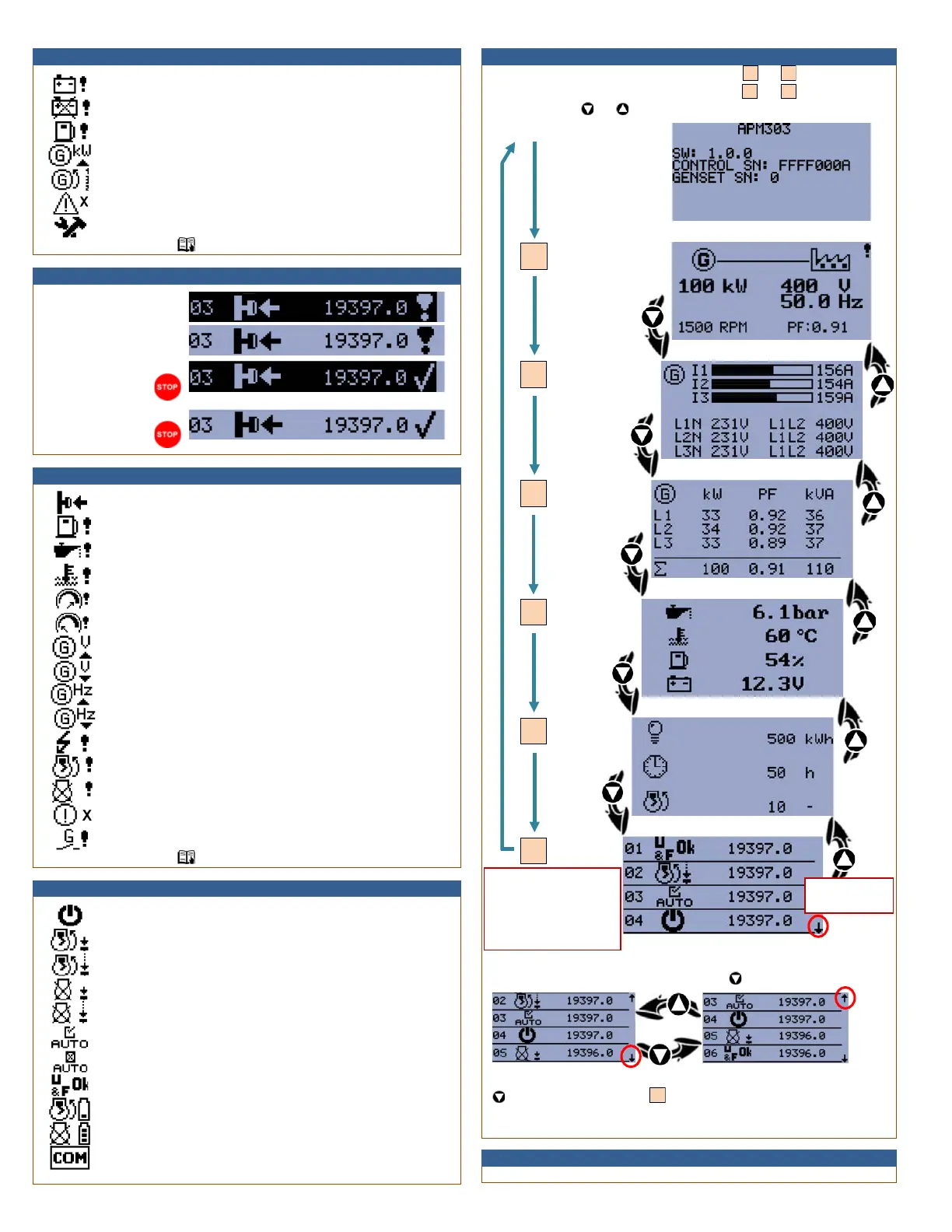

APM303 - QUICK START GUIDE page 2/2
Battery voltage low or charging alternator not working
flat battery
low fuel level
GS overload
alternator phase rotation
alarm input no. x (x=1, 2 or 3)
GS maintenance to be carried out (non-contractual)
activation conditions, see user manual, operator level
10 - Active and inactive faults - Clearing
active, cleared
after pressing
inactive, cleared
after pressing
emergency stop
low fuel level
low oil pressure
coolant temperature high
speed too high
speed too low
max. alternator voltage (59)
min. alternator voltage (27)
max. alternator frequency (81H)
min. alternator frequency (81L)
alternator short circuit (50/51)
GS failure to start
GS failure to stop
fault input no.
(
=
,
or
)
Circ. breaker pos. inconsistent
activation conditions, see user manual, operator level
The APM303 is powered on
start up in MANUAL mode
start up in AUTO mode
stop in
mode
stop in
mode
AUTO mode is activated
AUTO mode is deactivated
GS stabilised
automatic start when battery low
automatic stop after battery recharge
Modbus order received (see Modbus manual)
13 - Displaying the different screens
Automatic scrolling through 7 screens ( to + INIT).
Manual scrolling through 6 screens ( to ), by pressing
repeatedly on or .
INIT
main ()
currents & voltages ()
power levels ()
mechanical values ()
counters ()()
12 - Events and anomalies
When
is fixed (after 4 seconds), the list of events and
anomalies can be viewed by pressing .
When the no. 12
appears at the bottom of the screen, pressing
again displays screen .
() non-contractual indications () RESET not possible
14 - Dual output report pack (optional)
"general alarm and fault" and "GS ready to take load"
5
possible if
visible in automatic
scrolling if:
-alarm active
-fault active
-fault not acknowledged
