Specifi cations
10 24 690 01 Rev. KKohlerEngines.com

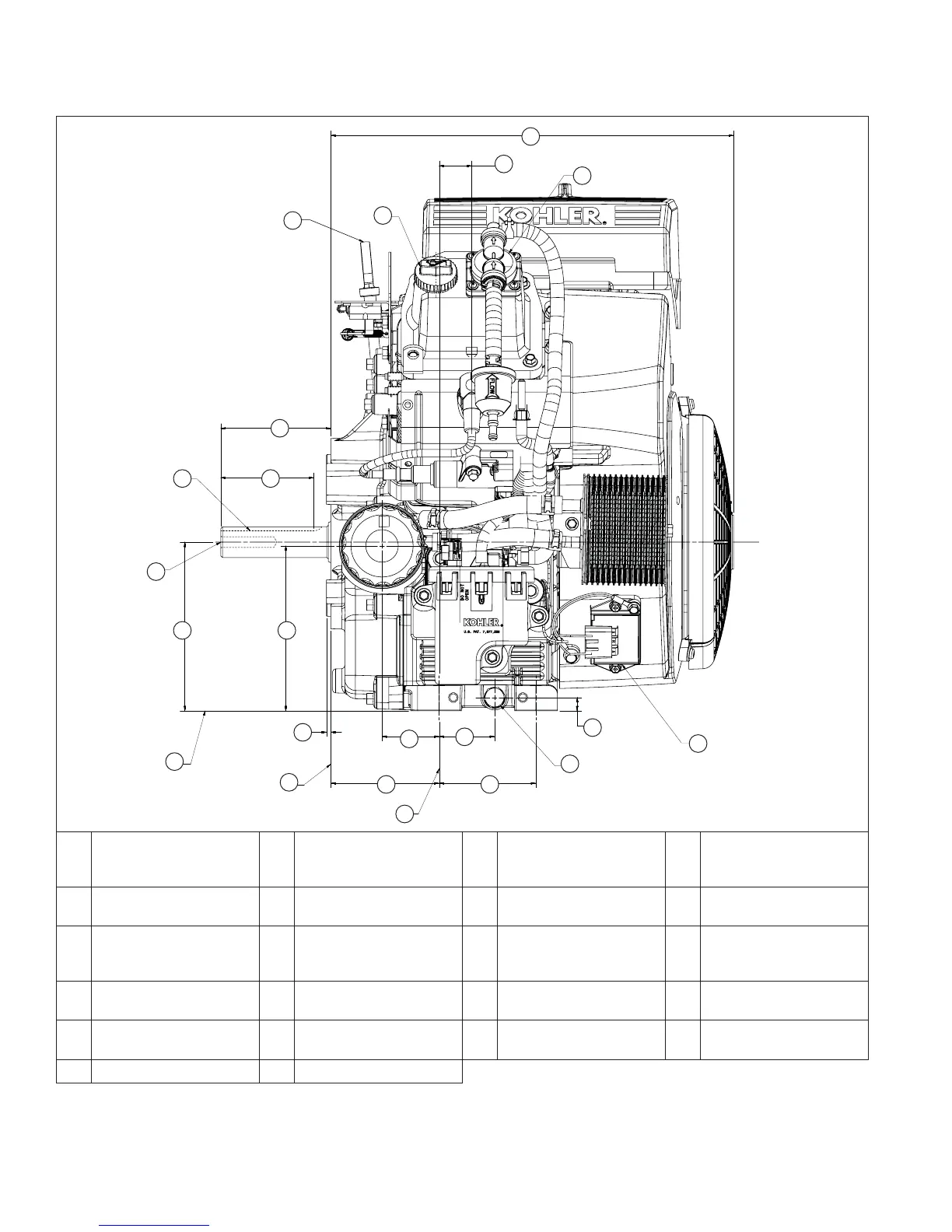

Engine Dimensions with Low-Profi le Air Cleaner-Oil Filter Side
A
B
C
D
E
F
GH
I
J K
L
M
N
O
P
R
Q
S
V
T
U
A
371.44 mm
(14.624 in.)
B
30.0 mm (1.181 in.)
Spark Plug Center
Line
C Fuel Pump D Oil Fill
E Dipstick F 101.38 mm (3.992 in.) G
85.50 mm (3.366 in.)
Keyway
H 1/4 in. Square Keyway
I
7/16-20 UNF 2B in.
38.10 mm (1.5 in.)
Deep
J 155.58 mm (6.125 in.) K
152.08 mm (5.987 in.)
Oil Filter
L
Engine Mounting
Surface
M Mounting Surface N
4.00 mm (0.157 in.)
Pilot
O
Center Line Mounting
Hole "A"
P 100.0 mm (3.937 in.)
Q
52.75 mm (2.077 in.)
Oil Filter
R 51.0 mm (2.008 in.) S 89.0 mm (3.504 in.) T
Oil Drain Plug
3/8 in. NPT
U 12.28 mm (0.483 in.) V Rectifi er-Regulator
