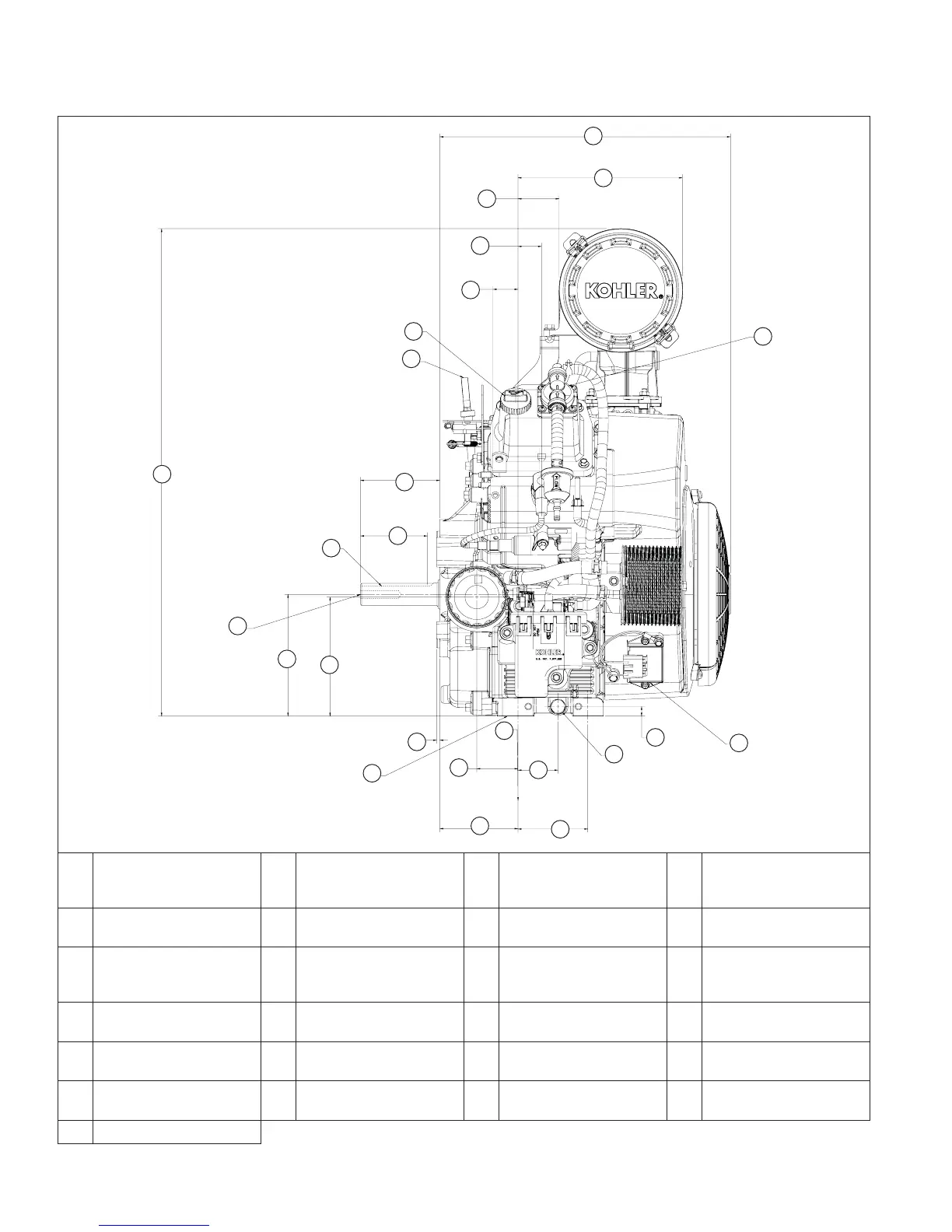

Kohler Command PRO CH745 - Engine Dimensions with Heavy-Duty Air Cleaner-Oil Filter Side

Specifi cations
6 24 690 01 Rev. KKohlerEngines.com
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
Q
S
V
T
U
W
X
Y
A
371.44 mm
(14.624 in.)
B 209.88 mm (8.263 in.) C 52.43 mm (2.064 in.) D
30.0 mm (1.181 in.)
Spark Plug Center
Line
E
32.00 mm (1.260 in.)
Exhaust Port #2
F Oil Fill G Dipstick H 101.38 mm (3.992 in.)
I
85.50 mm (3.366 in.)
Keyway
J 1/4 in. Square Keyway K 622.70 mm (24.516 in.) L
7/16-20 UNF-2B in.
38.10 mm (1.5 in.)
Deep
M 155.58 mm (6.125 in.) N
152.08 mm (5.987 in.)
Oil Filter
O
Engine Mounting
Surface
P
4.00 mm (0.157 in.)
Pilot
Q
52.75 mm (2.077 in.)
Oil Filter
R
Center Line Mounting
Hole "A"
S 100.0 mm (3.937 in.) T 89.0 mm (3.504 in.)
U 51.0 mm (2.008 in.) V
Oil Drain Plug
3/8 in. NPT
W 12.28 mm (0.483 in.) X Rectifi er-Regulator
Y Fuel Pump
Engine Dimensions with Heavy-Duty Air Cleaner-Oil Filter Side
