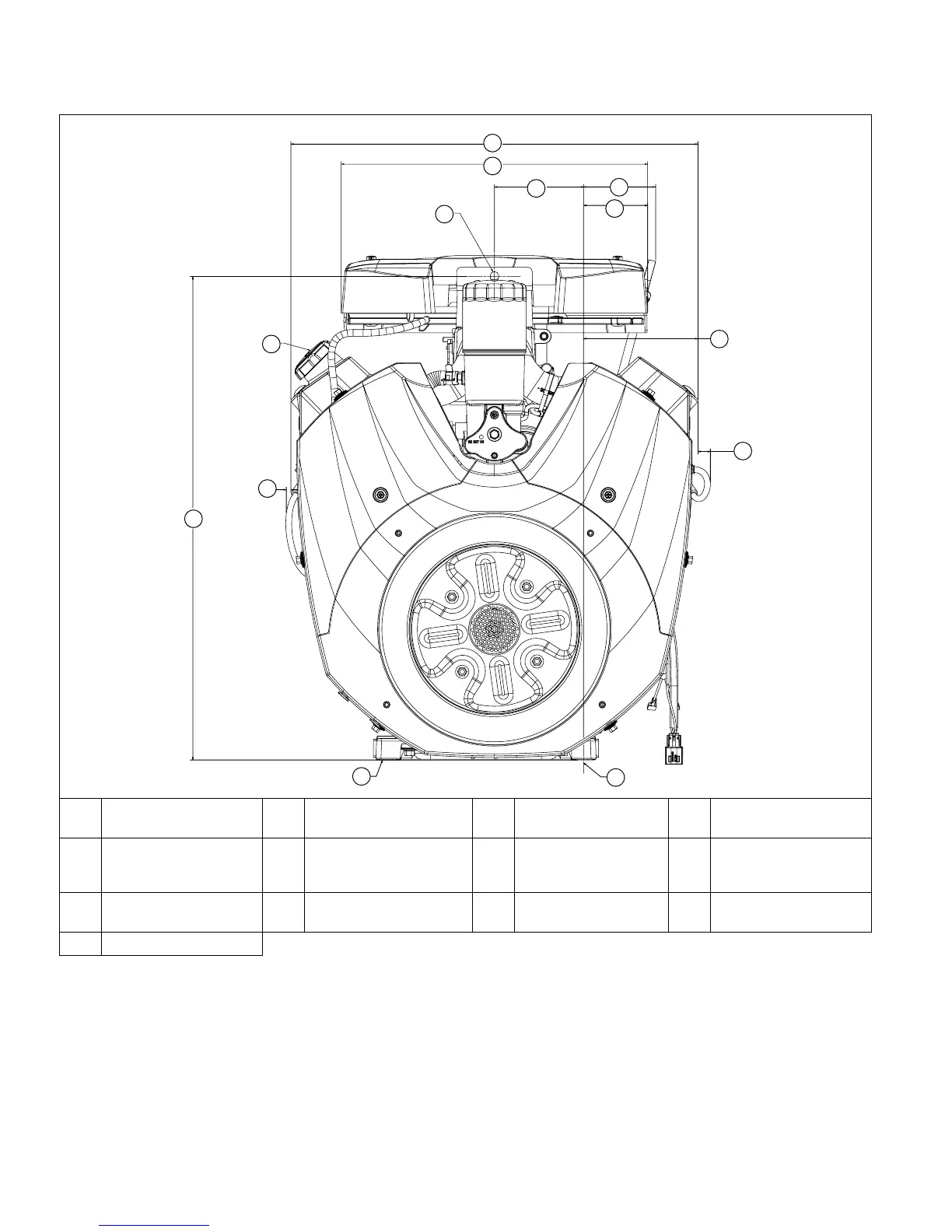

Engine Dimensions with Low-Prole Air Cleaner - Flywheel Side
A
B
C
D
E
F
G
H
I
J
K
L
M
A 484.3 mm (19.07 in.) B 364.5 mm (14.35 in.) C
106.0 mm (4.17 in.)
Lifting Point
D 85.7 mm (3.38 in.)
E 76.3 mm (3.00 in.) F
Lifting Point
10 X 12 mm
(0.39 X 0.47 in.) Slot
G 136.2 mm (5.36 in.) H
14.7 mm (0.58 in.)
Spark Plug Lead
I Mounting Hole "A" J
Engine Mounting
Surface
K
575.1 mm (22.64 in.)
Lifting Point
L
5.4 mm (0.21 in.)
Spark Plug Lead
M Oil Fill
