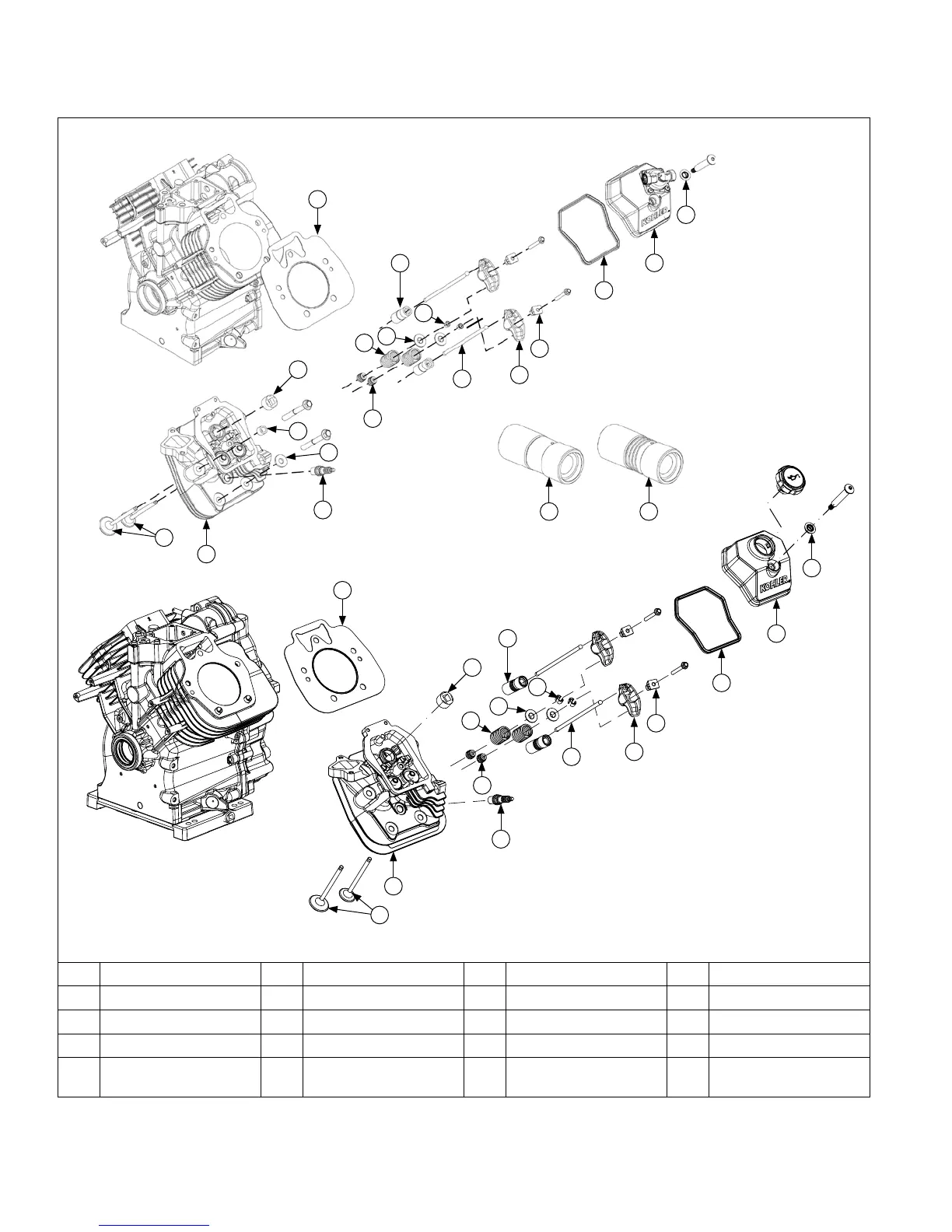

Cylinder Head Components
L
N
O
P
S T
Q
R
M
L
K
I
J
H
G
C
E
F
A
D
B
B
C
G
A
D
H
I
K
M
N
O
P
Q
R
J
A Gasket B Valve C Cylinder Head D Pipe Plug
E Spacer F Washer G Spark Plug H Valve Stem Seal
I Valve Spring J Hydraulic Lifter K Valve Spring Retainer L Push Rod
M Valve Spring Keeper N Rocker Arm O Rocker Arm Pivots P Valve Cover Gasket
Q Valve Cover R Grommet S
Hydraulic Lifter
Style A (Ribbed)
T
Hydraulic Lifter
Style B (Smooth)
To Next Page
