Kohler Command PRO CH940 Service Manual

Specications
762 690 01 Rev. J KohlerEngines.com

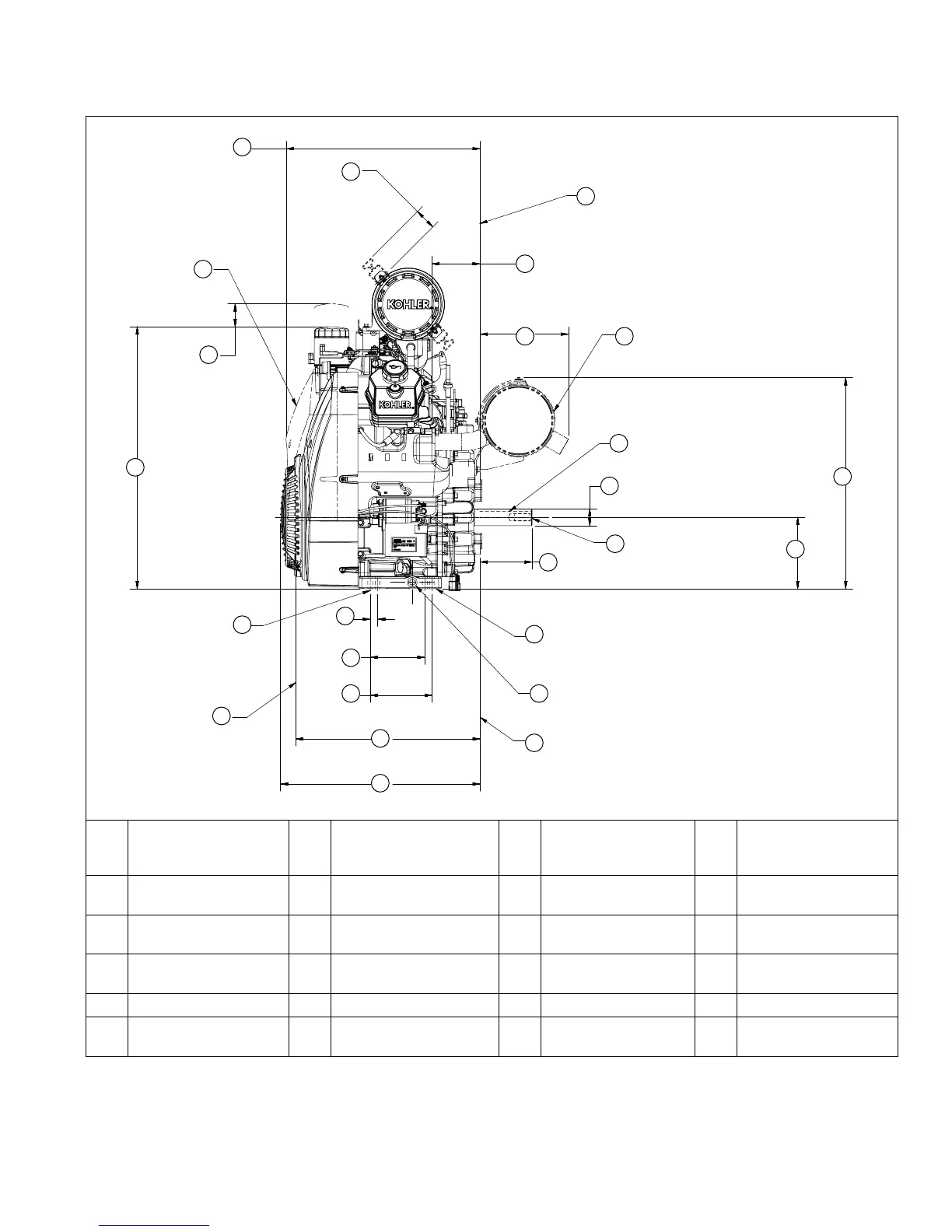

Engine Dimensions with Heavy-Duty Air Cleaner - Starter Side
A
422.7 mm (16.64 in.)
Cylinder #1 Shroud
Removed
B
4 X 47.3 mm (1.86 in.)
Air Cleaner Clip
Clearance
C
PTO Mounting
Surface
D
105.3 mm (4.14 in.)
Exhaust Port #1
E 192.3 mm (7.57 in.) F Mufer (Optional) G
460.0 mm (18.11
in.)
H
9.5 mm (0.38 in.)
SQ. Keyway
I 36.5 mm (1.44 in.) J 155.6 mm (6.13 in.) K
5/8-18 UNF-2B in.
38.1 mm (1.5 in.) Deep
L 113.2 mm (4.46 in.)
M
Engine Mounting
Surface
N
Oil Drain Plug
1/2 NPT Inch
O 435.0 mm (17.13 in.) P 401.8 mm (15.82 in.)
Q 135.0 mm (5.3 in.) R 119.0 mm (4.69 in.) S 16.0 mm (0.63 in.) T Grass Screen
U Mounting Hole "A" V 570.8 mm (22.47 in.) W
50.0 mm (1.97 in.)
Oil Filter Removal
X Cylinder #1 Shroud
A
B
X
W
V
U
T
O
P
Q
R
S
C
N
M
L
J
G
K
I
H
FE
D
C
