Kohler Command PRO CH940

Specications
8 62 690 01 Rev. JKohlerEngines.com

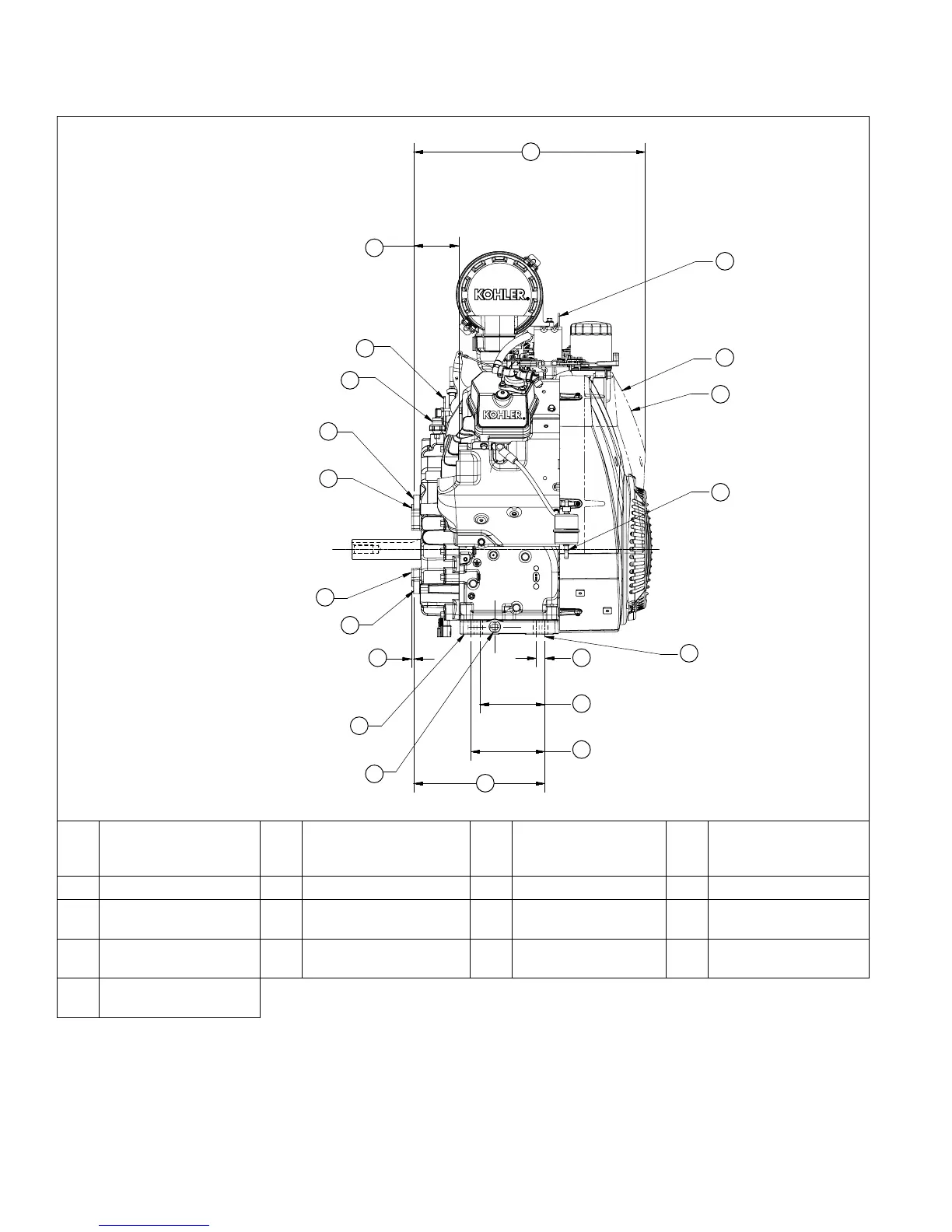

Engine Dimensions with Heavy-Duty Air Cleaner - Opposite Starter Side
A
422.7 mm (16.64 in.)
Cylinder #2 Shroud
Removed
B Lifting Point C Cylinder #2 Shroud D Access to Oil Cooler
E Fuel Filter F Mounting Hole "A" G 16.0 mm (0.63 in.) H 119.0 mm (4.69 in.)
I 135.0 mm (5.32 in.) J 239.5 mm (9.43 in.) K
Oil Drain Plug
1/2 NPT Inch
L
Engine Mounting
Surface
M
4 X 4.0 mm (0.16 in.)
Pilot Height
N
PTO Mounting
Surface
O Pilot Surface P Oil Pressure Switch
Q
82.3 mm (3.24 in.)
Exhaust Port #2
