Section 11
Reassembly
11
11.3

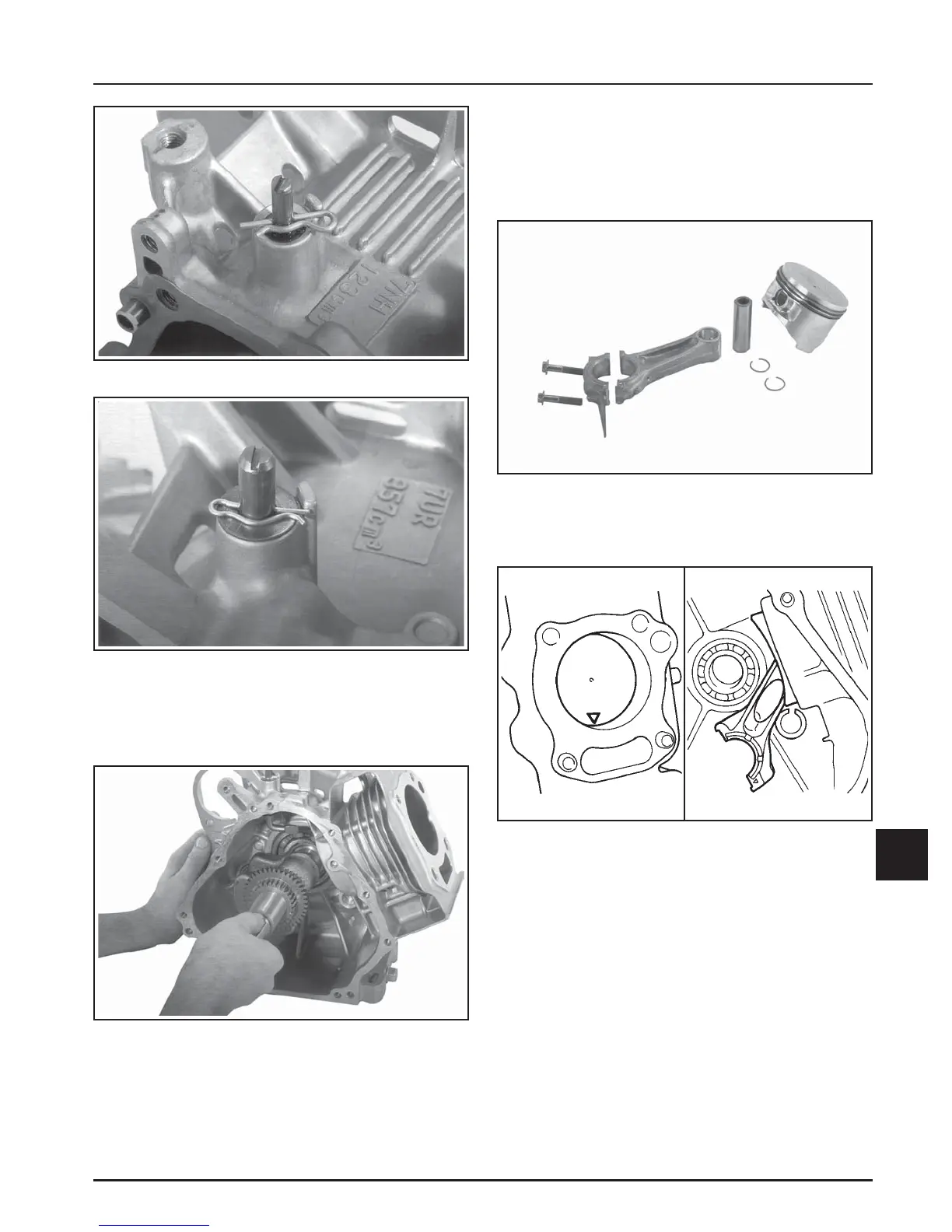

Figure 11-7. CS8.5-12. Installing Hitch Pin.
Install Crankshaft
1. Carefully slide the flywheel end of the crankshaft
through the main ball bearing and seal.
Install Connecting Rod with Piston and
Rings
1. If the piston and/or connecting rod has been
changed or removed, make sure the following is
correct before installing.
Figure 11-6. CS4, CS6. Installing Hitch Pin.
Figure 11-9.
a. The locating mark on piston is down. See
Figure 11-10.
Figure 11-10. Piston Installation Details.
Figure 11-8. Installing Crankshaft.
