Section 11
Reassembly
11.20
Install Valve Cover
1. Install a new valve cover gasket onto the cylinder
head.
2. Install the valve cover assembly.
CS4, CS6, CS8.5 (spec. 95xxxx): Install the four
hex flange screws and torque to 10-12 N·m
(88-106 in. lb.).

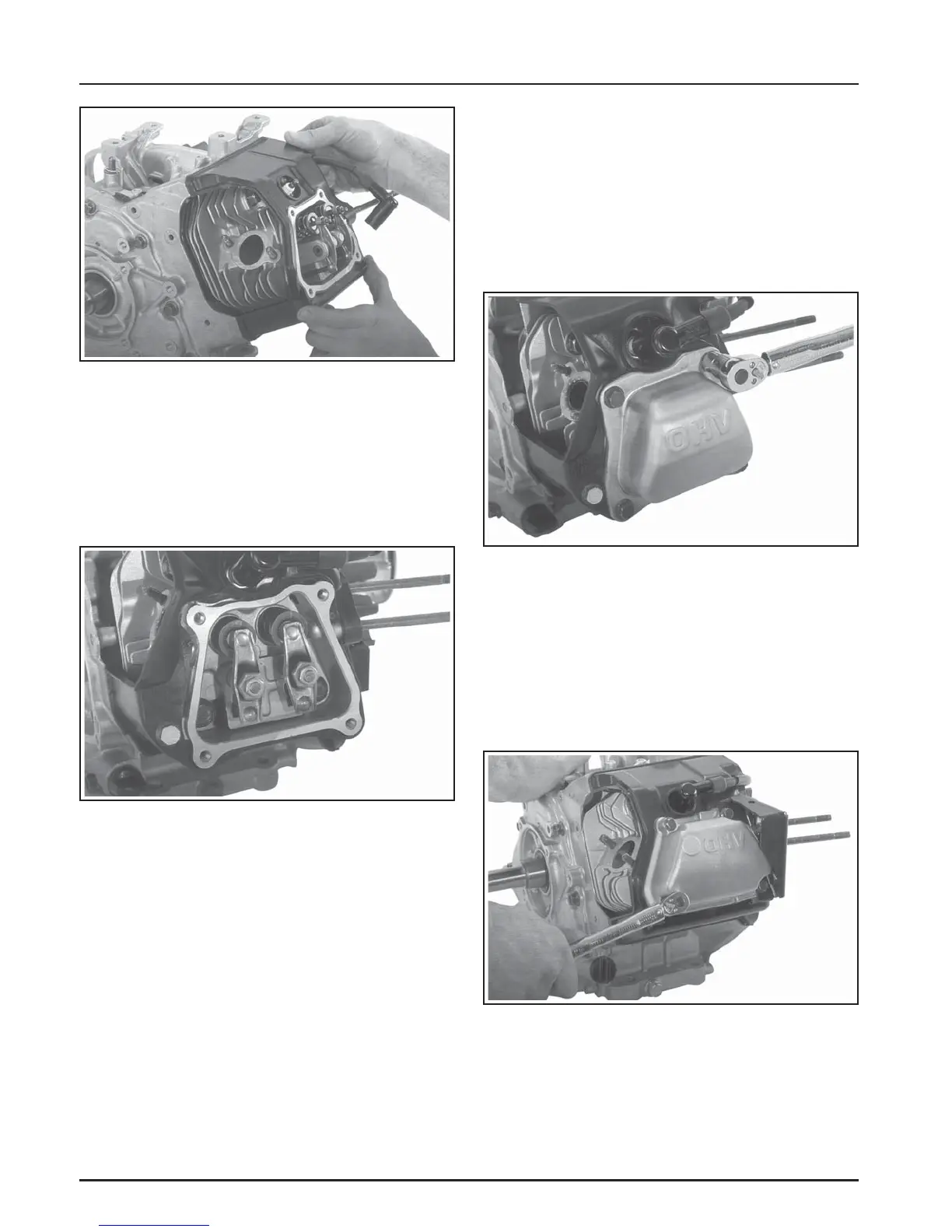

Figure 11-79. CS8.5-12. Torquing Valve Cover
Screws.
Figure 11-78. CS4, CS6, CS8.5 (spec. 95xxxx).
Torquing Valve Cover Screws.
CS8.5-12: Install the four valve cover screws.
Mount the air cleaner base support bracket off the
two right side valve cover locations, or to the
cylinder head boss locations (based upon the
model involved) using the two longer screws.
Torque all the screws to 10-12 N·m
(88-106 in. lb.). See Figure 11-79 and 11-80.
Figure 11-77. CS4, CS6. Cylinder Air Shroud
Mounting Bolt Location.
8. Position the spark plug lead within the
corresponding cutout in the air shroud.
Figure 11-76. Installing Cylinder Air Shroud.
7. Install the cylinder air shroud. Matching the
alignment slot on the ends with the
corresponding raised groove in the crankcase.
CS4, CS6: Install and torque the single M6x1.0
mounting screw to 10 N·m (88.5 in. lb.) See
Figure 11-77.
