Section 11
Reassembly
11
11.27

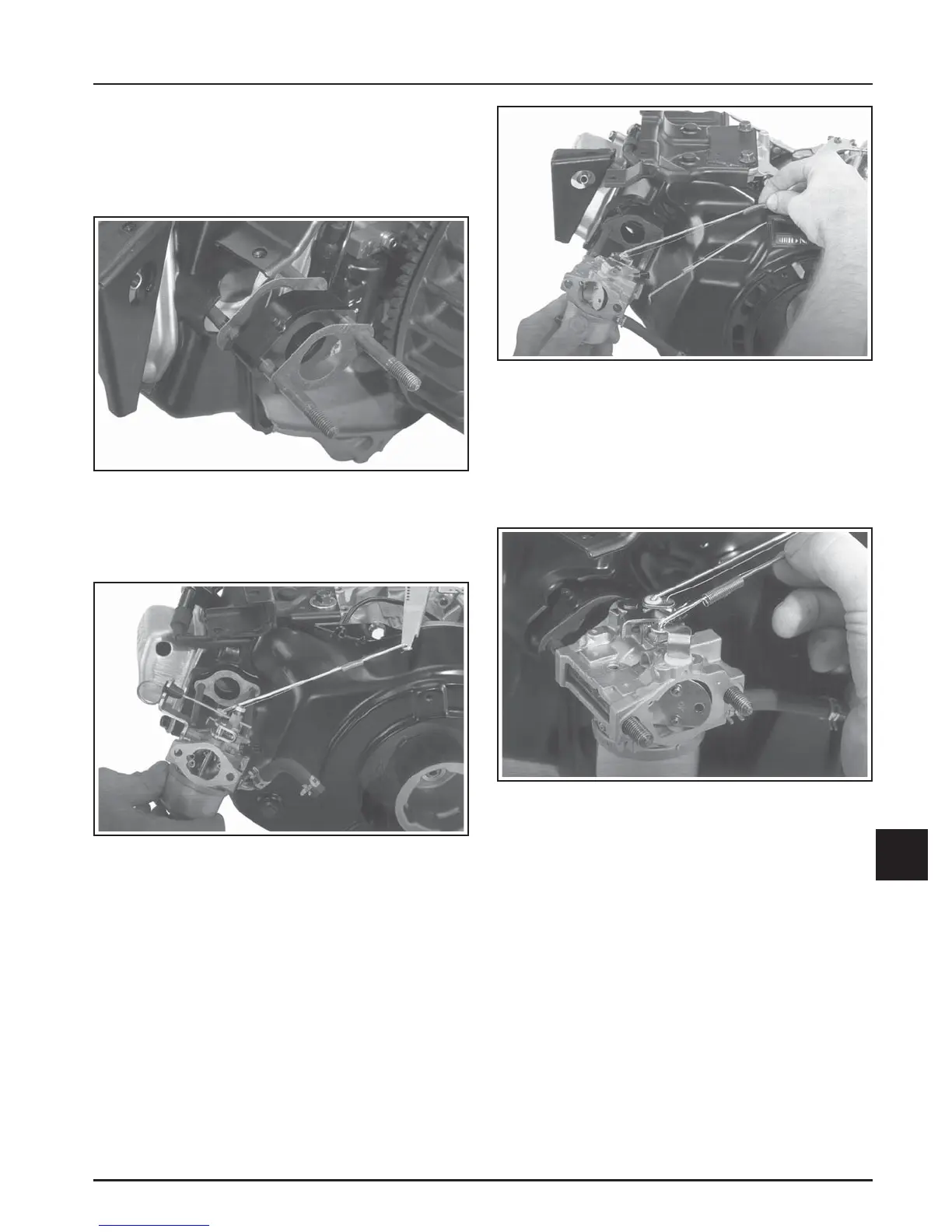

Install Carburetor
1. Install a new carburetor spacer gasket onto the
carburetor studs, followed by the carburetor
spacer and another spacer gasket. See Figure
11-100.
Figure 11-100. Carburetor Spacer and Gaskets.
2. Tilt the carburetor to hook the throttle link and
dampening spring into the hole(s) of the throttle
lever. See Figures 11-101 and 11-102.
Figure 11-101. CS4, CS6. Assembling Linkage.
Figure 11-102. CS8.5-12. Assembling Linkage.
3. CS8.5-12: Connect Z end of choke link and
dampening spring to choke lever on blower
housing or control bracket. Then connect the
angled end of the link and spring into the holes of
the choke lever on the carburetor as shown in
Figure 11-103.
Figure 11-103. CS8.5-12. Attaching Choke Link and
Dampening Spring.
4. Push the carburetor and linkage all the way onto
the studs.
