Section 11
Reassembly
11.28
Install Air Cleaner Base and Element
1. Install the air cleaner base gasket onto the
mounting studs. Attach the breather hose onto
the air cleaner base connection port. Then install
the air cleaner base onto the studs. Connect the
opposite end of the breather hose to the valve
cover. Secure the base with the two hex flange
nuts on the mounting studs and the one or two
hex flange screw(s) into the support bracket(s),
depending on the model involved. See Figures
11-104, 11-105, and 11-106. On models using a
separate rubber seal between the air filter element
and base, install or make sure the rubber seal for
the air cleaner is clean, installed, and in good
condition. See Figure 11-106.
Torque hex flange nuts to:
CS4, CS6: 5-8 N·m (44-71 in. lb.)
CS8.5-12: 10-12 N·m (88-106 in. lb.)
Torque hex flange screw(s) to:
5-8 N·m (44-71 in. lb.)
Seal
Seal

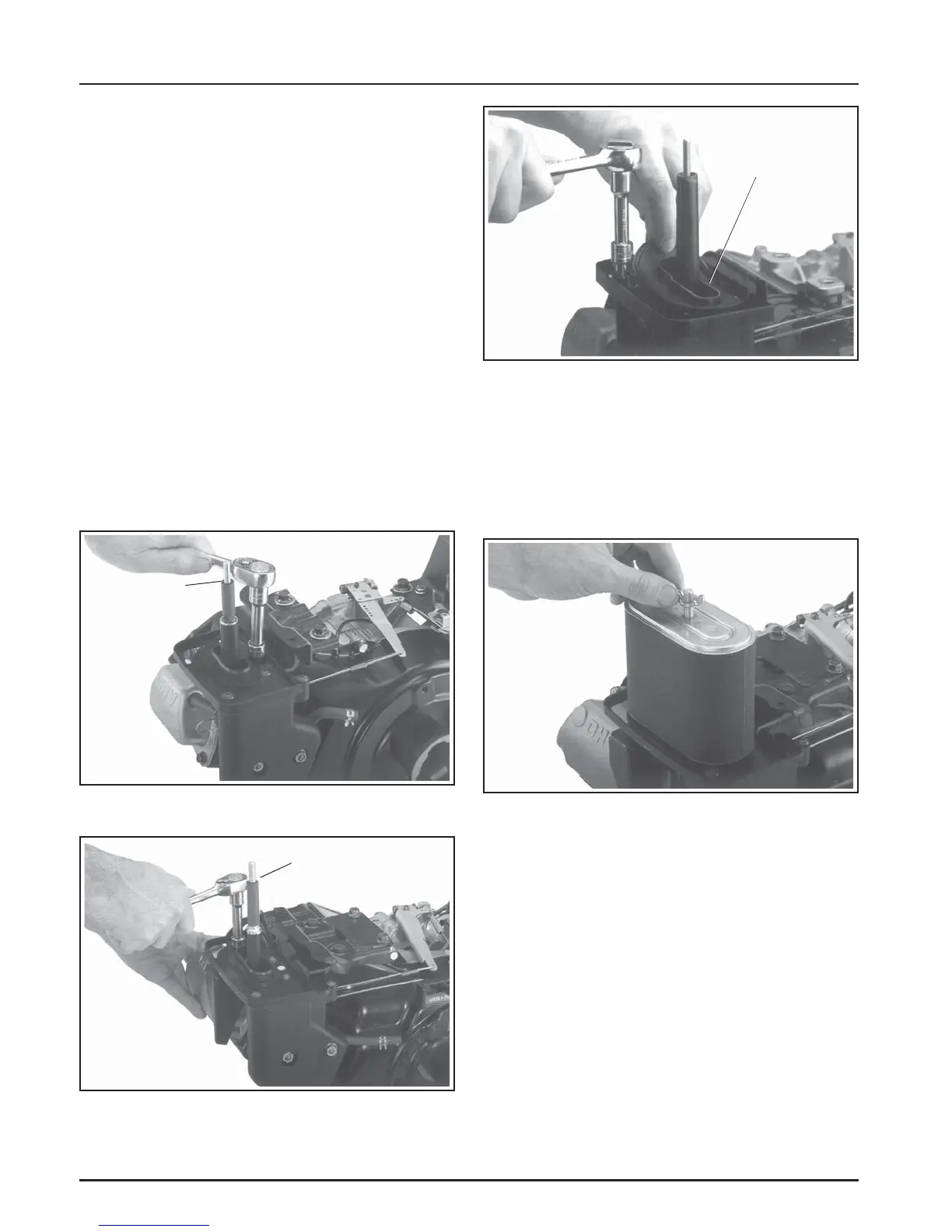

Figure 11-104. CS4, CS6. Installing Air Cleaner
Base.
Figure 11-105. CS8.5-12. Installing Air Cleaner
Base.
Figure 11-106. CS8.5 Air Cleaner Base and Rubber
Seal. (Some Models).
2. Make sure the seal is on the air cleaner base stud
(fixed on some models). See Figures 11-104,
11-105, and 11-106. Install the filter element with
precleaner and secure with the wing nut. Do not
install the outer air cleaner cover and knob at this
time.
Figure 11-107. Installing Air Filter Element,
Precleaner, and Wing Nut.
Adjust/Set Governor
1. Adjust and set the governor as follows (See
Figures 108 and 109):
a. Rotate the governor lever clockwise until it
stops.
b. Turn the governor shaft clockwise until it
stops.
c. Torque the clamp bolt to:
CS4, CS6: 8 N·m (71 in. lb.)
CS8.5-12: 10 N·m (88.5 in. lb.)
Rubber Seal
