Section 8
Disassembly
8

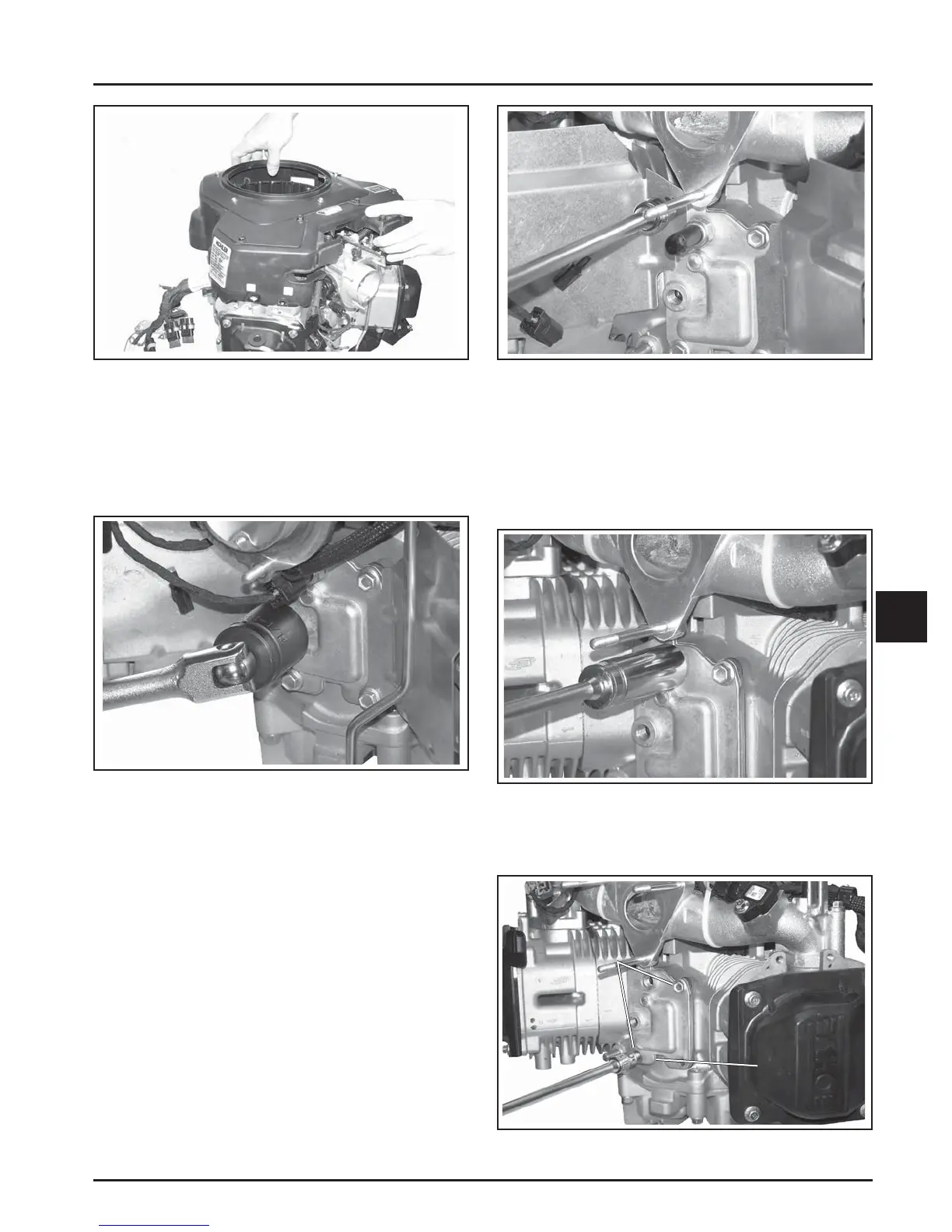

Figure 8-31. Removing Blower Housing.
Remove Oil Sentry™
1. Disconnect the lead from the Oil Sentry™ switch.
2. Remove the Oil Sentry™ switch from the
breather cover. See Figure 8-32.
Figure 8-32. Removing Oil Sentry™ Switch.
NOTE: This is optional. Removing the Oil Sentry is
not required to remove the breather cover.
Remove Inner Baffl es and Breather Cover
1. Remove the four hex fl ange screws securing the
inner baffl es to the crankcase.
2. Remove the inner (valley) baffl es. See Figure 8-33.
Figure 8-34. Remove the Oil Temperature Sensor.
4. Remove the two remaining hex fl ange screws
from the breather cover. See Figure 8-35.
Figure 8-33. Removing Inner Baffl es.
3. Disconnect and remove the oil temperature
sensor. See Figure 8-34.
NOTE: This is optional. Removing the oil
temperature sensor is not required to remove
the breather cover or inner baffl es.
Figure 8-35. Remove Breather Cover Screws.
Pry Under
Edge
Hex Flange
Screws
