8.6
Section 8
Disassembly
5. If equipped, remove the two screws securing
the heavy-duty air cleaner bracket, take off the
bracket and slide the thro le body off the intake
manifold. See Figure 8-21.

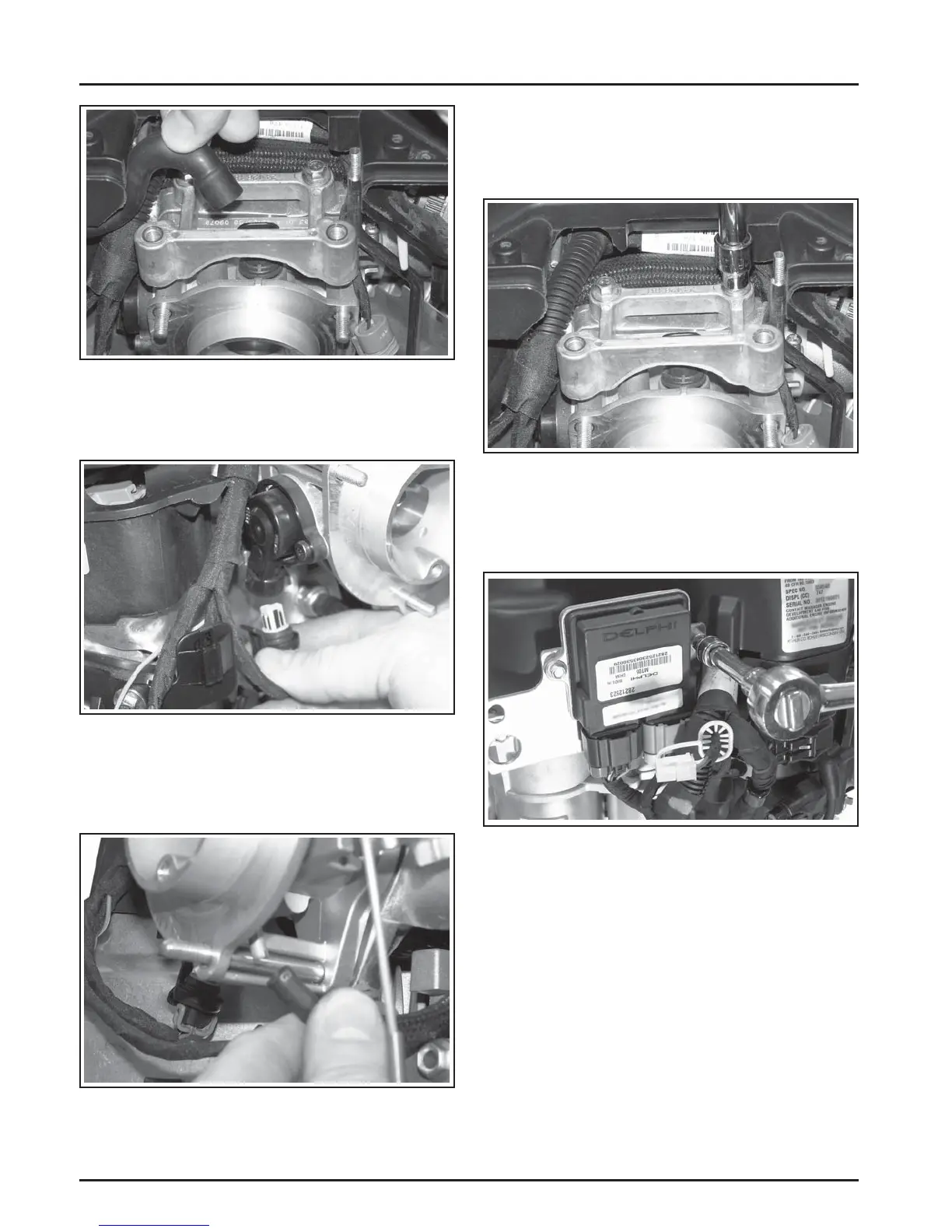

Figure 8-19. Disconnecting the Throttle Position
Sensor.
4. Disconnect the vent hose from beneath the
thro le body. See Figure 8-20.
Figure 8-20. Disconnect the Vent Hose.
Figure 8-22. Remove ECU Screws.
2. Disconnect the Black and Grey electrical
connectors from the ECU. See Figure 8-23.
Figure 8-18. Disconnect Breather Tube.
3. Disconnect the thro le position sensor connector.
See Figure 8-19.
Figure 8-21. Remove Air Cleaner Bracket Screws.
Remove the Electronic Control Unit (ECU)
1. Remove the two hex fl ange screws securing the
ECU to the bracket. See Figure 8-22.
