8.7
Section 8
Disassembly
8

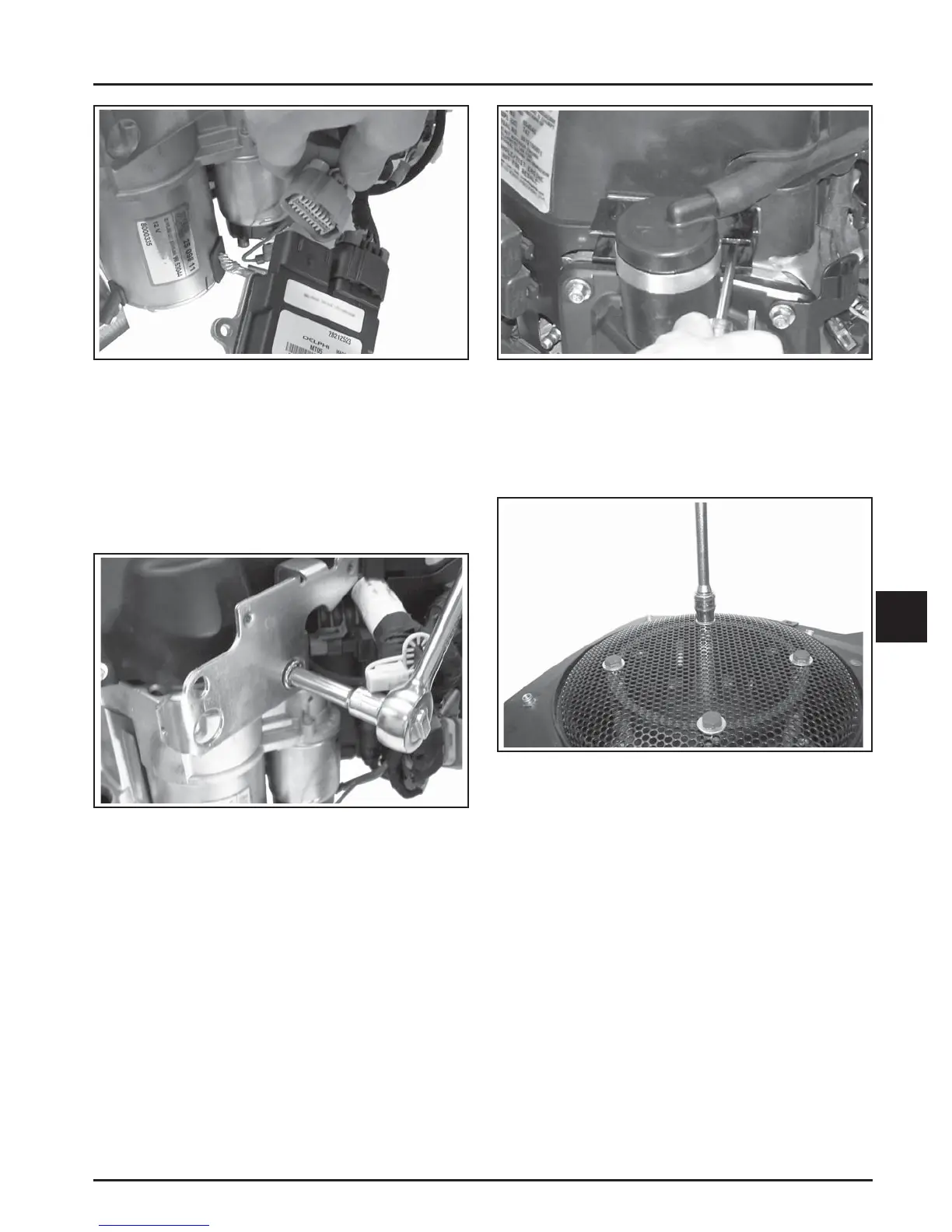

Figure 8-23. Disconnect ECU Electrical
Connectors.
Remove Electric Starter Motor and
Electronic Control Unit Bracket
1. Disconnect the leads from the starter.
2. Remove the two hex ange screws. See Figure
8-24.
Figure 8-24. Removing Electric Starter Motor.
Remove Oil Separator and Hardware
1. Remove the two screws securing the oil separator
assembly, pulling the assembly out and away
from the valve cover. See Figure 8-25.
Figure 8-25. Remove Oil Separator Assembly.
Remove Grass Screen
1. Remove the four socket head cap screws securing
the metal grass screen and remove the screen. See
Figure 8-26
Figure 8-26. Remove Grass Screen.
2. Remove the four spacers, paying a ention to
the curvature of the spring washers between the
spacers and the fan.
NOTE: The fan will be loose, but cannot be removed
until a er the blower housing is removed.
3. If there is a plastic grass screen a ached to the
fan, remove the four screws securing the grass
screen. Removing the screen will expose the
four screws fastening the fan to the ywheel. See
Figure 8-27 and Figure 8-28.
