11524 690 01 Rev. S KohlerEngines.com
EFI SYSTEM-BOSCH
WARNING
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings, away
from sparks or fl ames. Spilled fuel could ignite if it comes
in contact with hot parts or sparks from ignition. Never use
gasoline as a cleaning agent.
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.

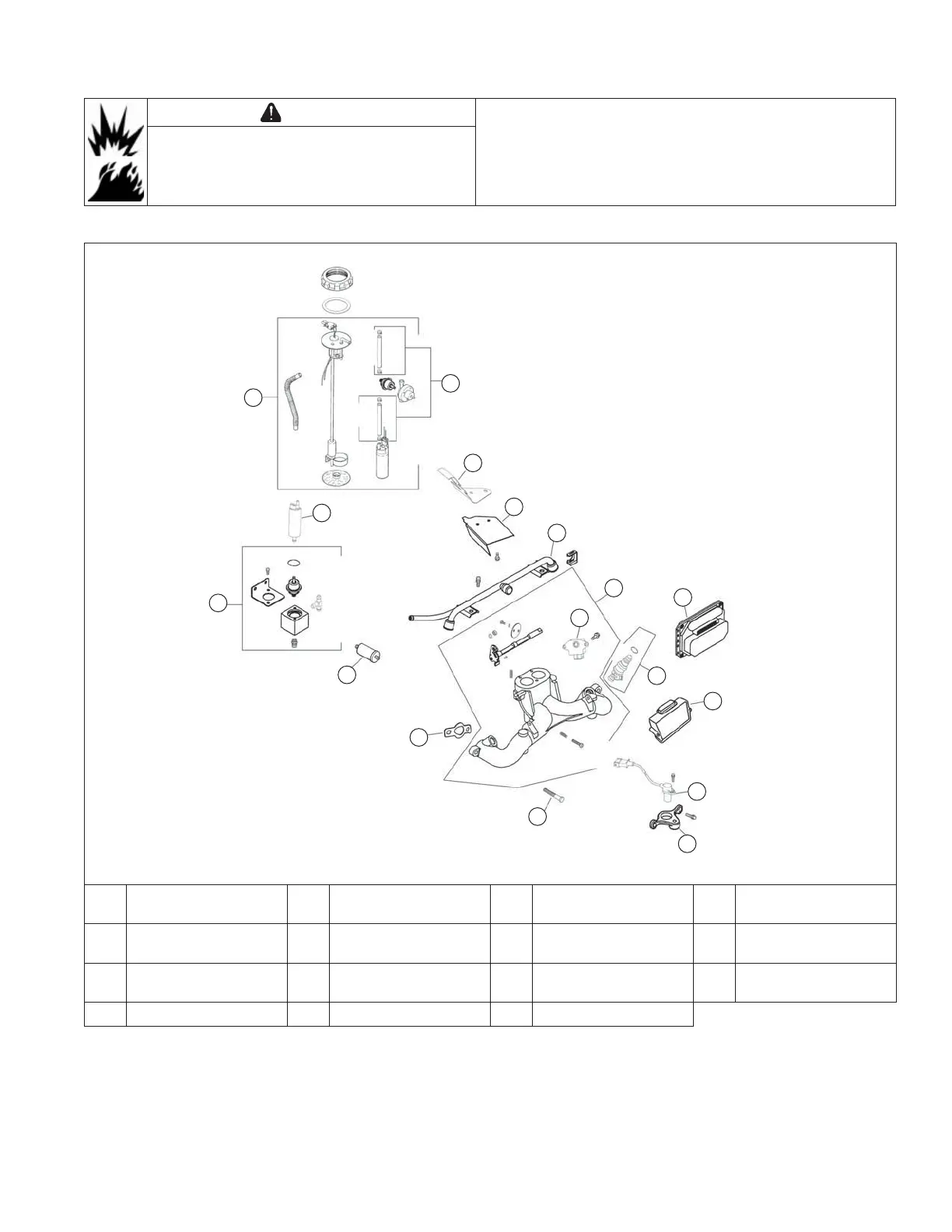

Bosch EFI System
A
A
O
A
N
M
L
K
J
G
H
G
E
F
D
C
B
A
Fuel Pressure
Regulator
B Valley Baffl e C Air Defl ector D Fuel Rail
E Intake Manifold Kit F
Throttle Position
Sensor
G Module H Fuel Injector
I ECU J Speed Pick-up Sensor K
Speed Sensor
Bracket
L Screw
M Intake Gasket N Fuel Filter O Fuel Pump Assembly
