Lubrication System
This engine uses a full pressure lubrication system which delivers oil under pressure to crankshaft, camshaft,
connecting rod bearing surfaces, and hydraulic valve lifters.
A high-effi ciency gerotor oil pump maintains high oil fl ow and oil pressure, even at low speeds and high operating
temperatures. A pressure relief valve limits maximum pressure of system. Closure plate must be removed to service
oil pickup, pressure relief valve, and oil pump.
Lubrication Components
A
H
G
B
C
D
E
F
F
A
E
H
G

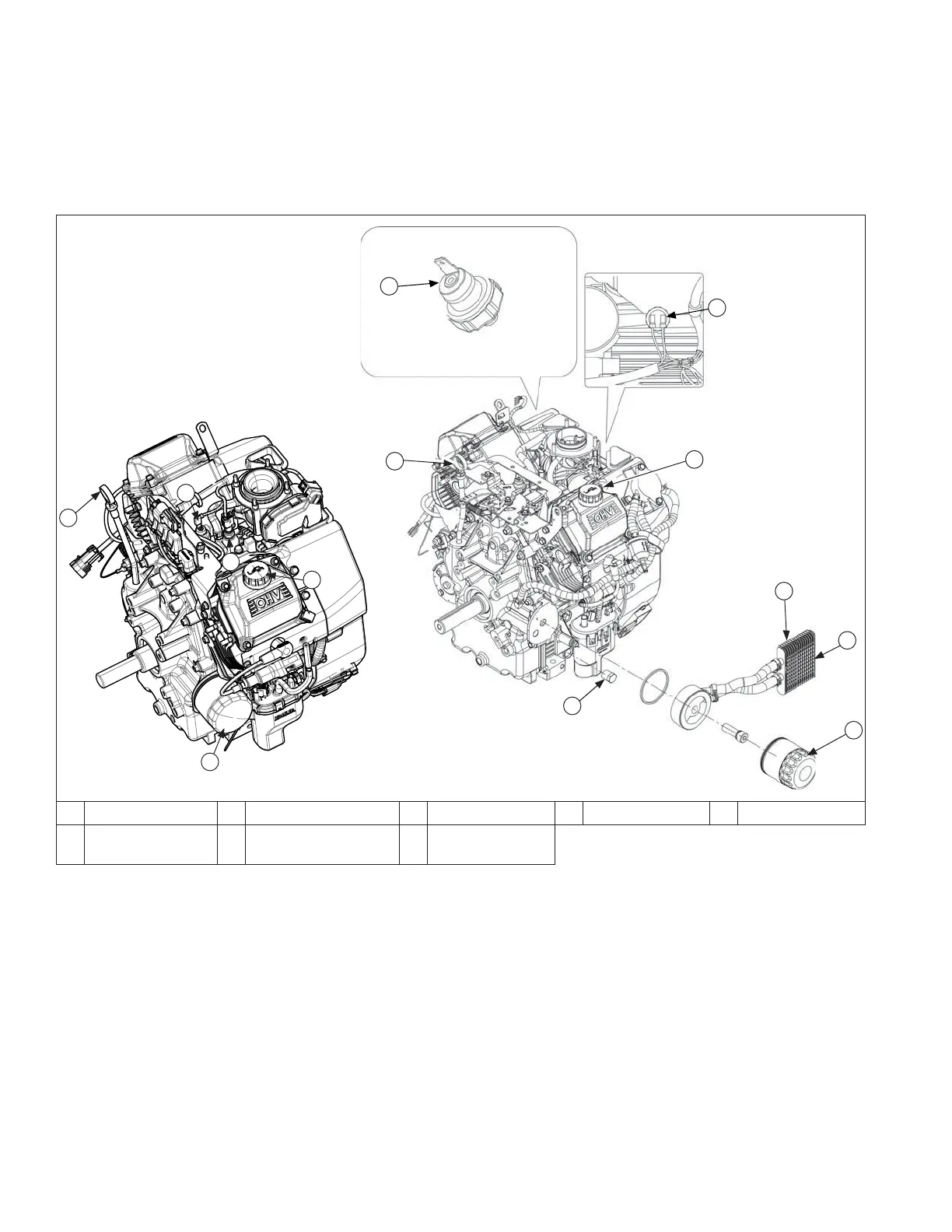

A Oil Filter B Back Side C Oil Cooler D Oil Drain Plug E Oil Fill Cap
F Oil Fill/Dipstick G
Engine Temperature
Sensor
H Oil Sentry
TM
OIL RECOMMENDATIONS
Refer to Maintenance.
CHECK OIL LEVEL
NOTE: To prevent extensive engine wear or damage, never run engine with oil level below or above operating range
indicator on dipstick.
Ensure engine is cool. Clean oil fi ll/dipstick areas of any debris.
1. Remove dipstick; wipe oil off .
a. Push-on cap: reinsert dipstick into tube; press completely down.
or
b. Threaded cap: reinsert dipstick into tube; rest cap on tube, do not thread cap onto tube.
2. Remove dipstick; check oil level. Level should be at top of indicator on dipstick.
3. If oil is low on indicator, add oil up to top of indicator mark.
4. Reinstall and secure dipstick.
