Electrical System
18 690 01 Rev. G KohlerEngines.com
6. Set an ohmmeter to Rx1 scale and zero meter. Test
ignition/key switch as follows.
a. Trace two black leads from on/off switch and
separate them from any connections. Connect
ohmmeter leads to switch leads, and check for
continuity in both switch positions.
Condition Conclusion
Continuity should be
indicated when and only
when switch is in OFF
position.
Replace switch for any
other results.

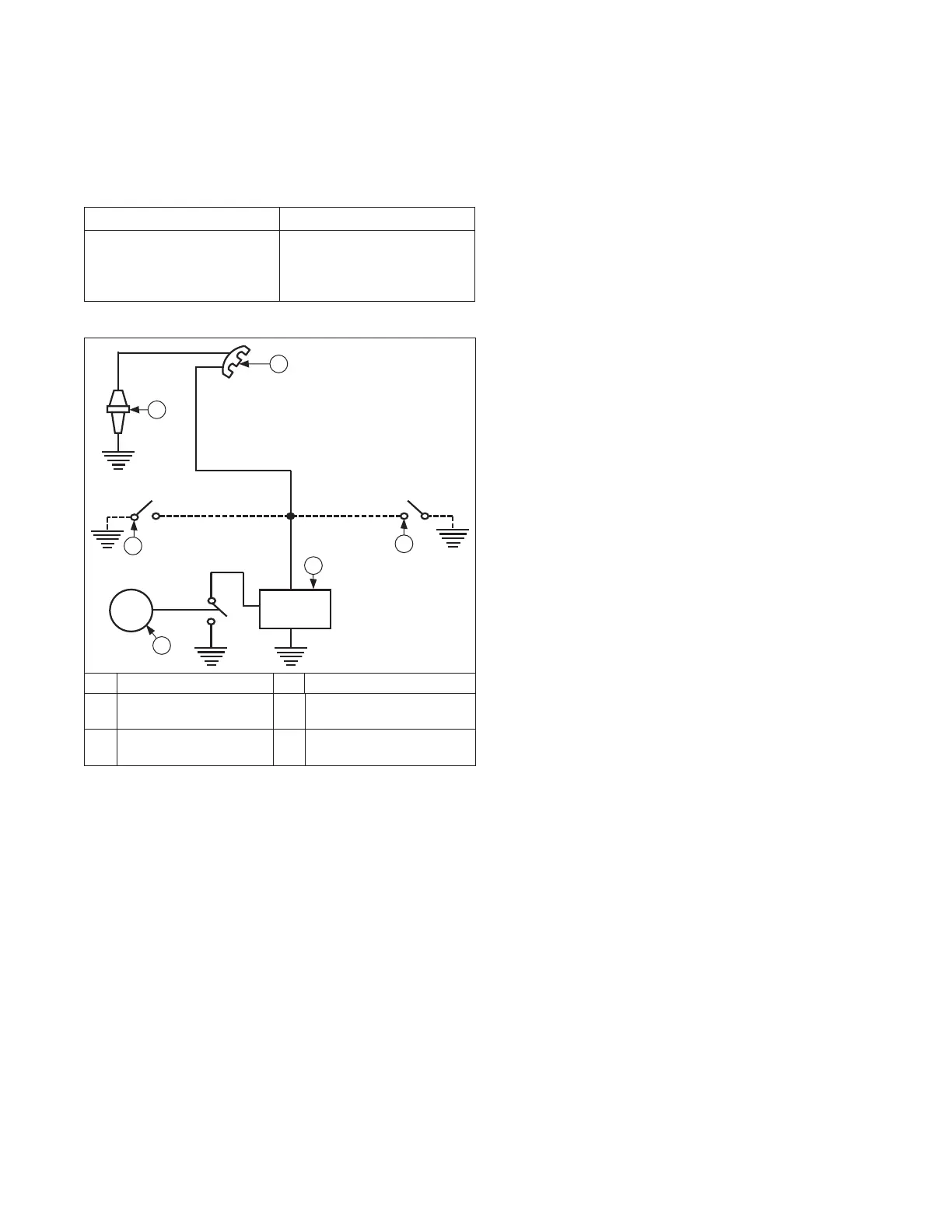

General Wiring Diagram
A
D
E
F
C
B
A Ignition Module B Spark Plug
C
Optional Red
Ignition Switch
D Oil Sensor
E Oil Alert Control Unit F
Optional Micro
Shut Down Switch
To Next Page
