Reassembly
18 690 01 Rev. G KohlerEngines.com
Install Retractable Starter
1. Install retractable starter on blower housing using screws. Finger tighten screws only.
2. Pull rope handle to engage pawls and center starter to drive cup. Hold in this position and torque screws to
5.4 N·m (47.8 in. lb.).

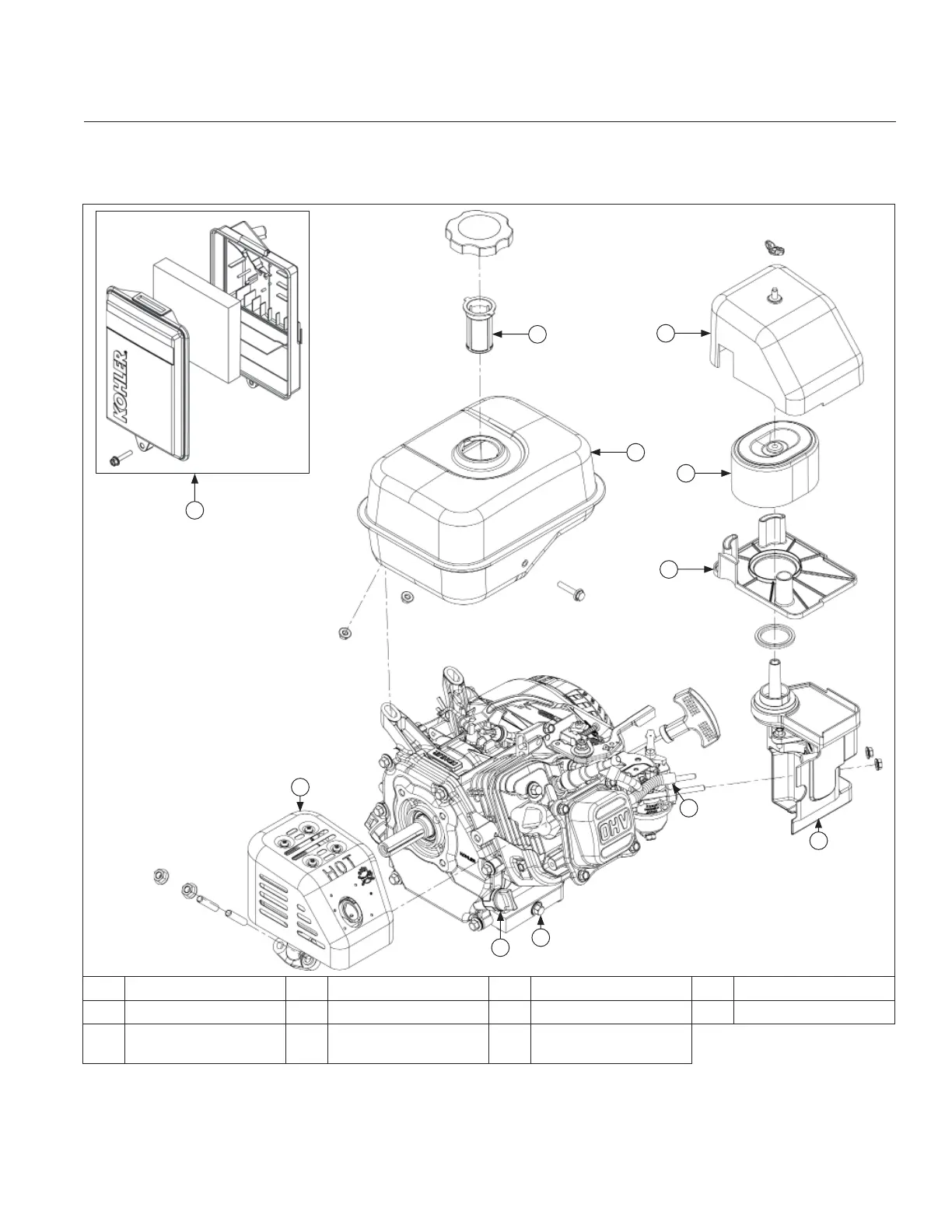

External Engine Components
D
J
E
F
G
I
C
A
H
B
K
A Oil Drain Plug B Oil Fill Plug C Muffl er Assembly D Breather Hose
E Air Cleaner Cover F Element/Precleaner G Air Cleaner Base H Carburetor Cover
I Fuel Tank J Fuel Tank Filter K
Low-Profi le Air
Cleaner
