Kohler Decision-Maker 3000 User Manual

104
Section 7 Decision-Makerr 6000 Controller TP-6356 4/12
GM65729
1
2
3
4
5
6
7
8
9
10
11
12
13
Ribbon cables not shown: 14, 15, 16, 17, 18
6
7
1. PCB assembly, DEC 6000 interconnection
2. Connection, assembly, customer
3. PCB assembly, DEC 6000 main logic
4. Display, vacuum fluorescent
5. PCB assembly, DEC 6000 display
6. Fuse holder
7. Fuse, 1.5 A, 250 V
8. Lamp, 14.4 V, 1.7 W (12 volt) or 28 V, 4.8 W (24 volt)
9. Membrane switch, DEC 6000
10. Vibromount
11. Switch, key selector
12. Switch, SPDT contact block
13. Switch, emergency stop pushbutton
14. Cable, ribbon, 34 position, P5 to P17
15. Cable, ribbon, 40 position, P4 to P16
16. Cable, ribbon, 34 position, P6 to P14
17. Cable, ribbon, 16-position, P7 to display
18. Cable, ribbon, 24 position, P2 to P12

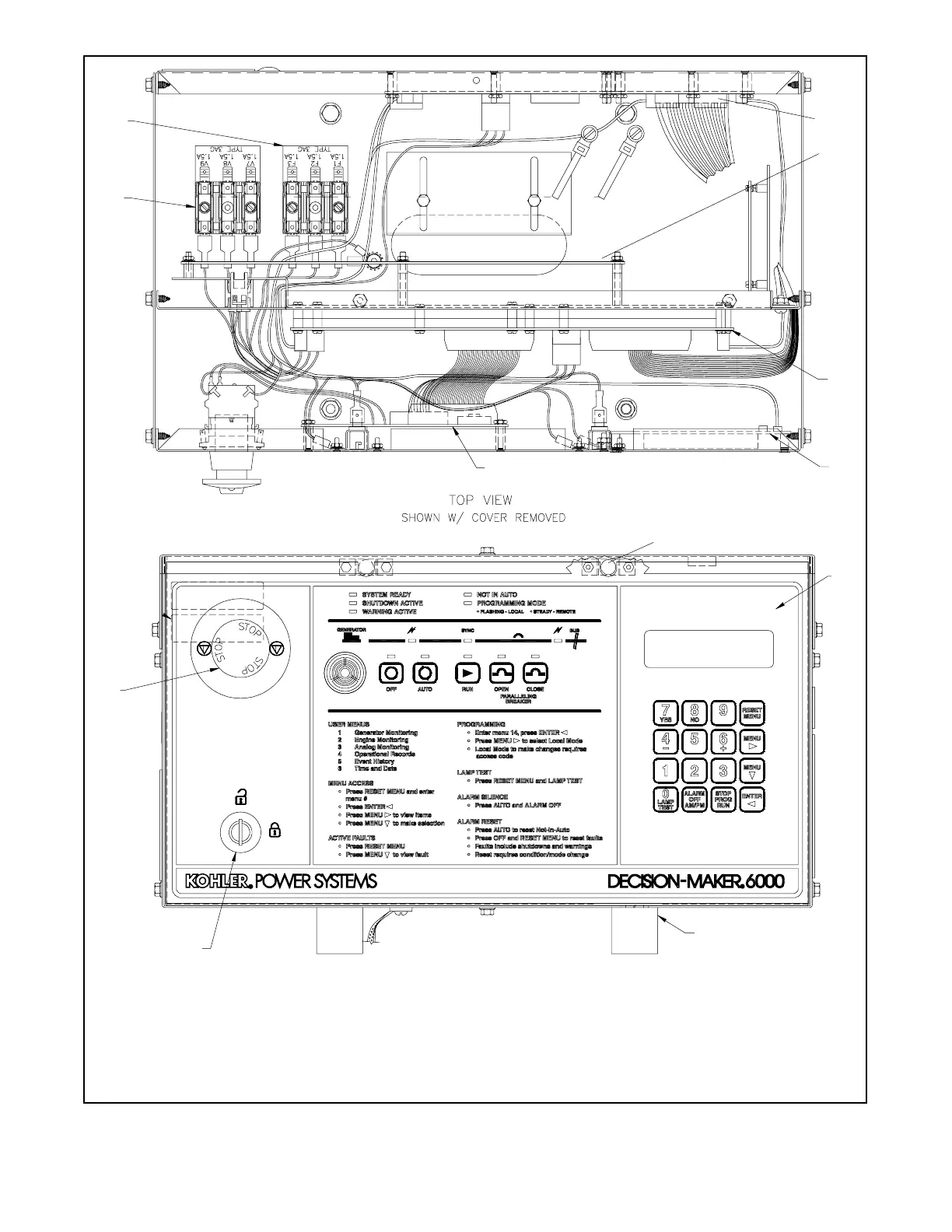

Figure 7-1 Decision-Makerr 6000 Controller Service Replacement Parts
