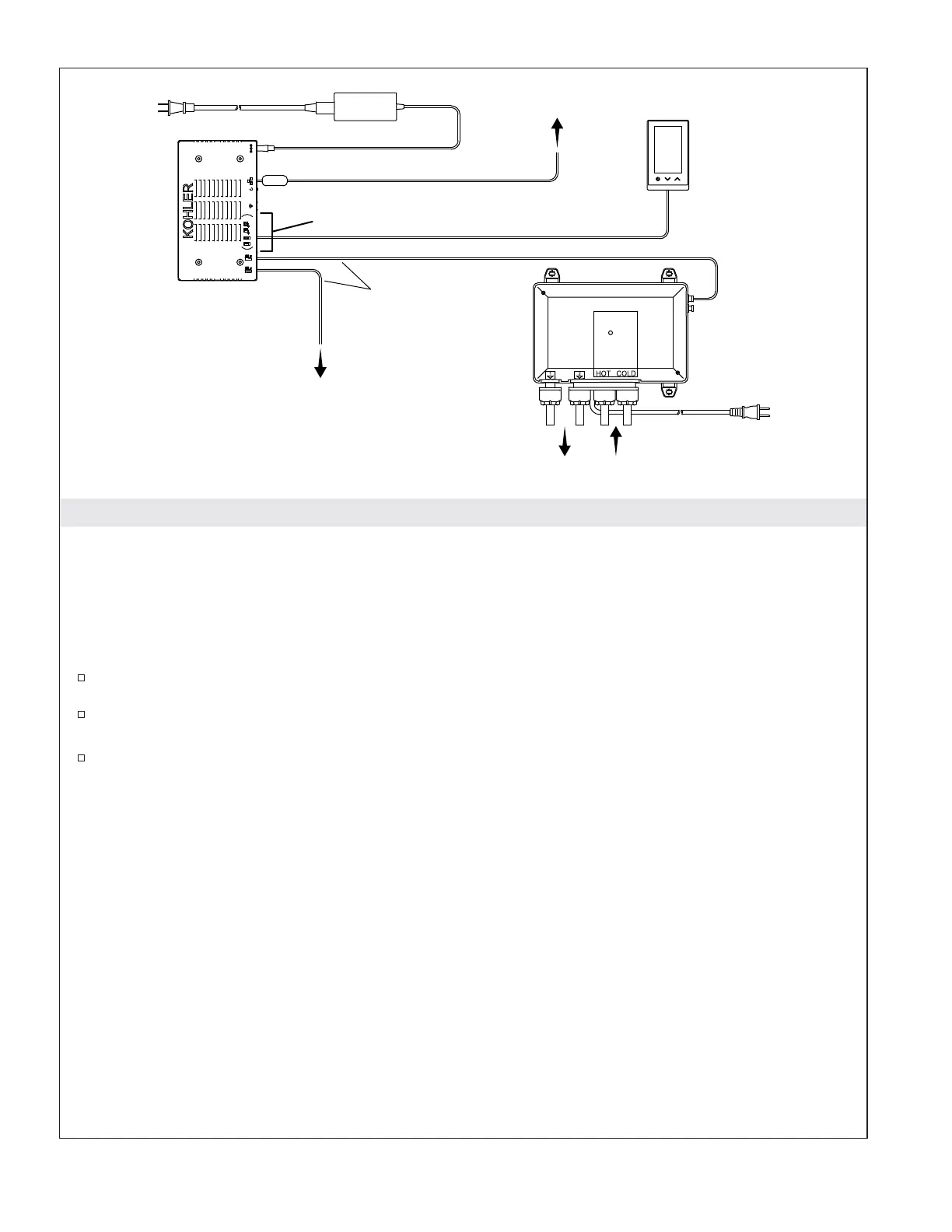

1. DTV+ System Layout
The K-99695 system controller powers the interface(s) and controls the digital valve(s) and other system
components. The controller is required to configure the valve(s).
NOTICE: If the valve will be used for a bath/shower application, the bath fill supply line must be routed
from the #1 outlet port.
NOTICE: Custom shower configurations may not allow certain features to be enabled. For shower
configuration options, refer to the guide on the K-99695 controller product page at us.kohler.com.
Determine the locations of all required components, including shower fittings.
A data cable is provided to connect the valve to the controller. If the valve is not within 25’ (7.6 m)
of the controller, obtain a longer telephone-style cable or add an extension cable.
When routing piping, make sure that each shower fitting will connect to the appropriate valve
outlet for your configuration.
Before Operating the System for the First Time:
Download and install the latest software for connected components. This may take an hour or more to
complete based on system configuration and internet connection speed. Do not disconnect the power from
any components during software download and installation.
Digital
Valve
Router
AC Power
Controller
AC Power
25' (7.6 m)
Data Cable
Component Cable
Connections
Interface
(Up to Three)
Digital
Valve
Water InletsShower Fittings
Kohler Co. 5 1240338-2-B
