Kohler DTV+ - Custom Configuration Plumbing Layout

2. Mounting Configurations
NOTICE: Do not mount the valve with the inlets pointing up or positioned above the outlet ports. Doing
so will damage this product.

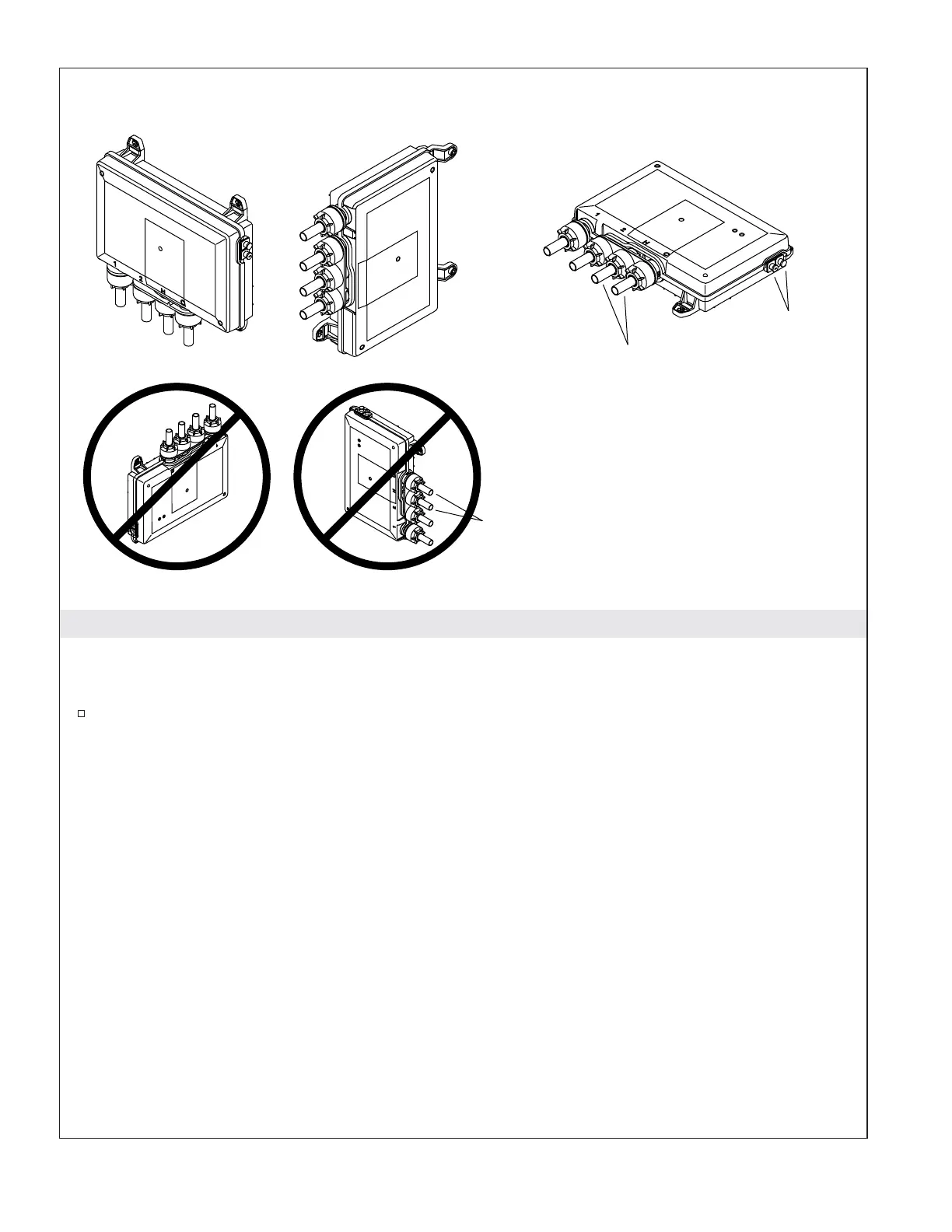

The two-port valve is shown above. The same vertical or horizontal mounting configurations apply
for the three-port valve.
Mounting on a Horizontal SurfaceMounting on a Vertical Surface
Inlets
Cable
Sockets
Inlets
