-20-
Fastener
Fastener

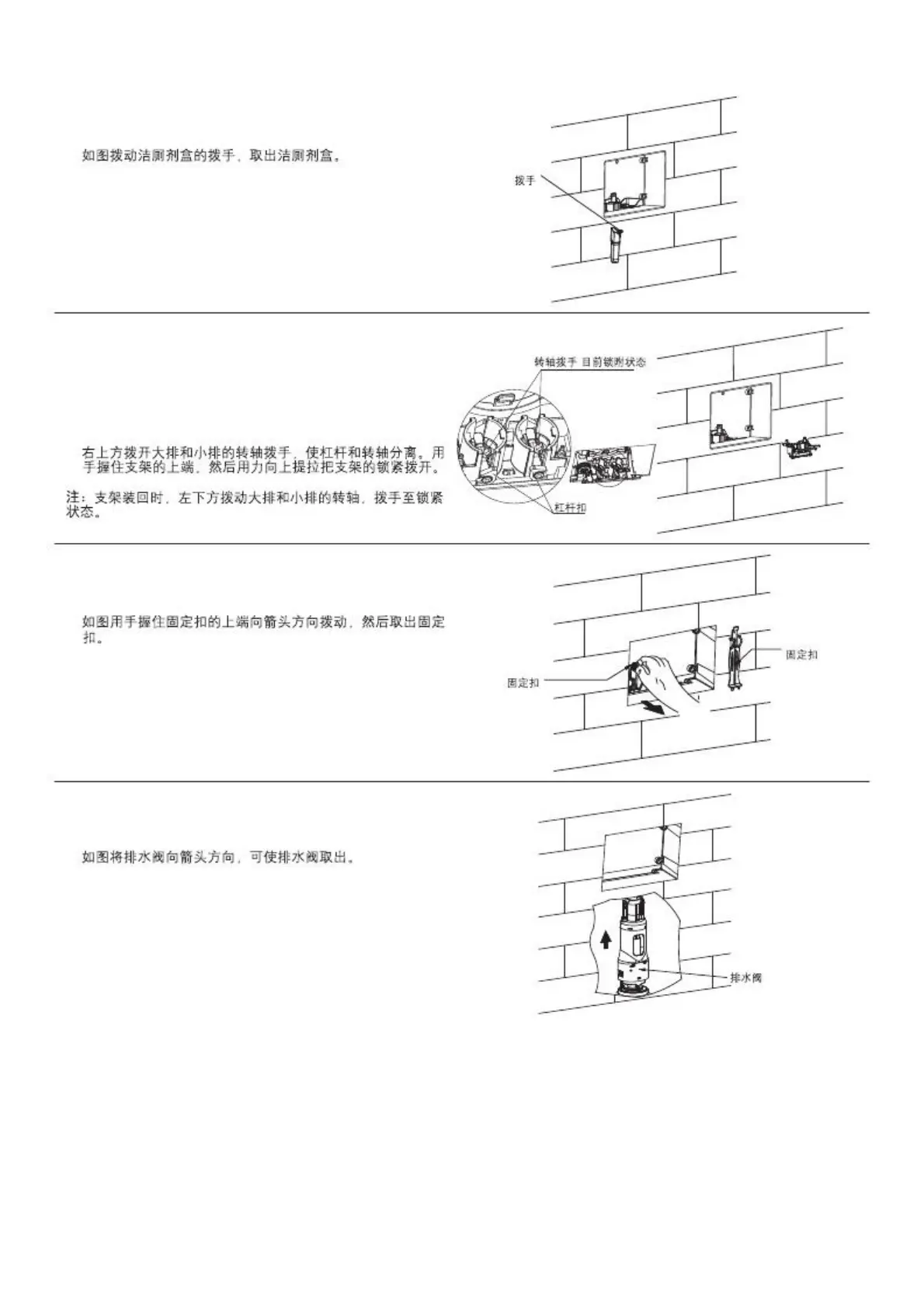

6. Push aside the snap of the toilet detergent box to take the
box out.
6.
Snap
7. Push aside the pivot snaps of the big flush and small flush
towards upper right to make the lever and pivot apart. Hold
bracket top by hand and then lift up to unlock the bracket.
Note: Push aside the pivot snaps of the big flush and small
flush towards lower left to fix back the bracket. Lock the snap.
7.
8. Hold fastener by hand as shown, pull the top of fastener
along the direction of arrow. Then remove fastener.
8.
Snap (Locked)
(
Lever Snap
)
9. Pull discharge valve along the arrow direction as shown to
remove discharge valve.
9.
Outlet Valve
1288818-T01-A
To Next Page
