10. Complete the Installation
If an interface is not available, proceed to the ″Installation Checkout″ section, and ″Test for Leaks without an
Interface.″
NOTE: Make drip loops in all cables and cords.
Route the interface cable(s) in the wall from the valve location to the interface installation
location(s).
If not already installed, install the interface(s) according to the instructions packed with the product.

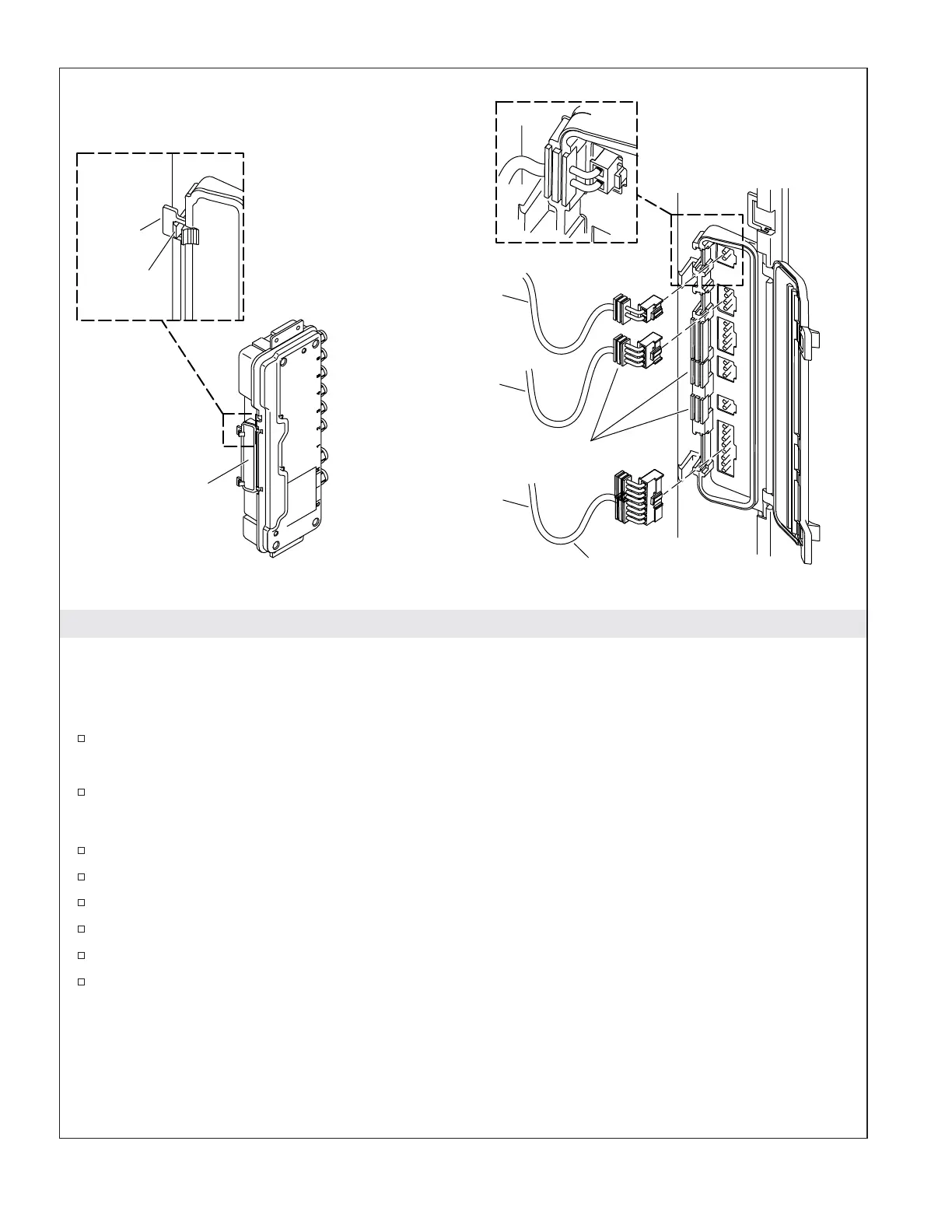

Connect the Cables
Press the clips to release and open the door on the valve.
To remove the door, slide the hinge side of the door in either direction until it slips free.
Connect the interface cable(s) to the valve.
Connect the power supply to the valve.
Verify all grommets are in place, then reinstall the door.
To close the door, press on the tabs until the clips snap in place.
Tab
Clip
Door
Power Supply
Optional External
Interface Cable
Grommets
Drip Loop
Internal
Interface Cable
Kohler Co. 15 1043183-2-E
