7. Prepare the Site
NOTICE: Do not install the power supply under a whirlpool surround or any location where the
temperature may exceed 104°F (40°C). The power supply is rated to operate in temperatures up to 104°F
(40°C).

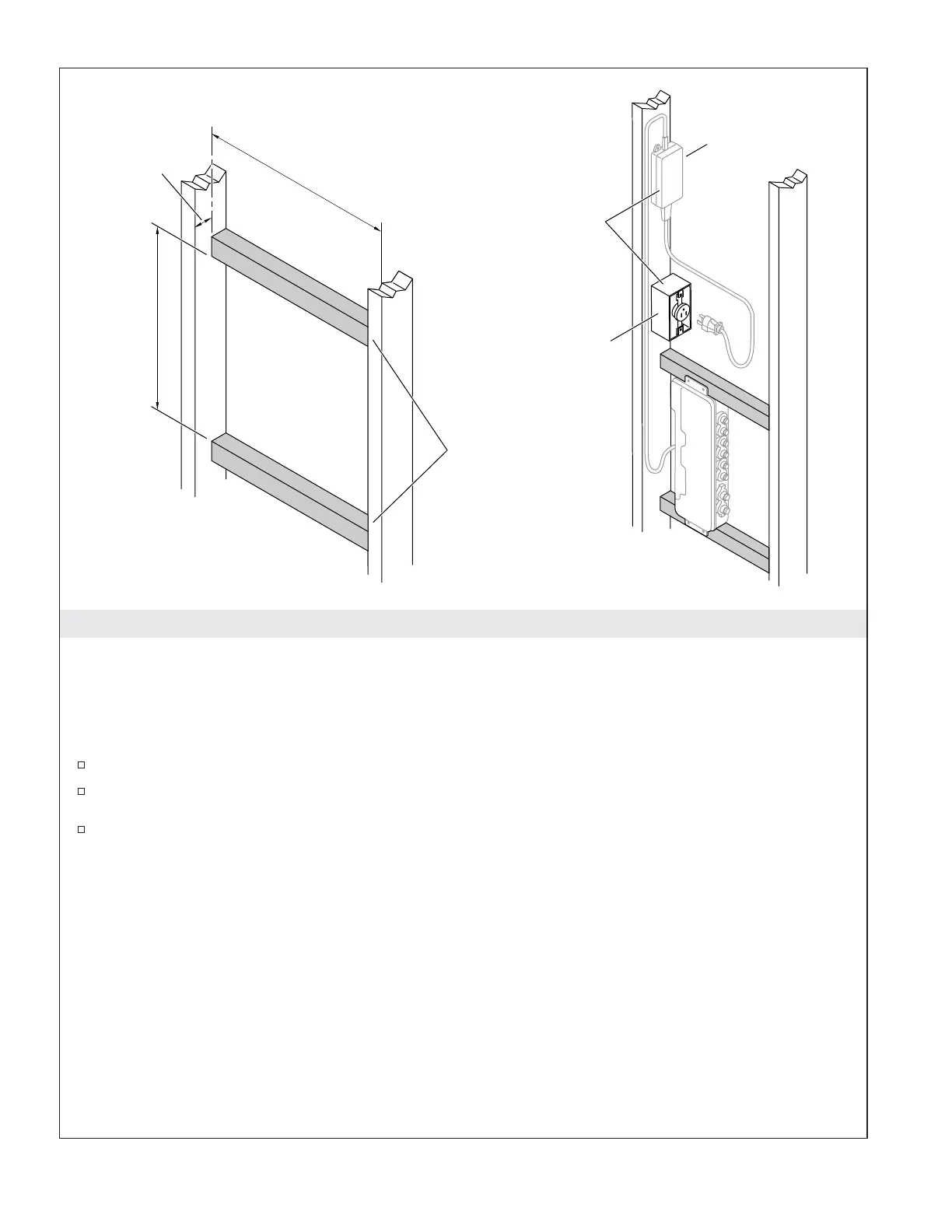

NOTE: Vertical installation within a stud cavity is shown. The valve can also be mounted to a horizontal
surface. Refer to the ″Mounting Configurations″ section.
This product is designed to fit within a minimum 21″ (533 mm) 2x4 stud cavity.
Install adequate bracing for mounting the valve.
Install a 120 V electrical outlet within the stud framing, in close proximity to the valve. Locate the
outlet above the valve, allowing space to mount the power supply close to the outlet. A GFCI outlet
may be required in some applications.
20-3/16"
(513 mm)
21"
(533 mm) Min
Outlet
Power Supply
Install
bracing.
1-1/4"
(32 mm)
Position higher
than the valve.
1043183-2-E 12 Kohler Co.
