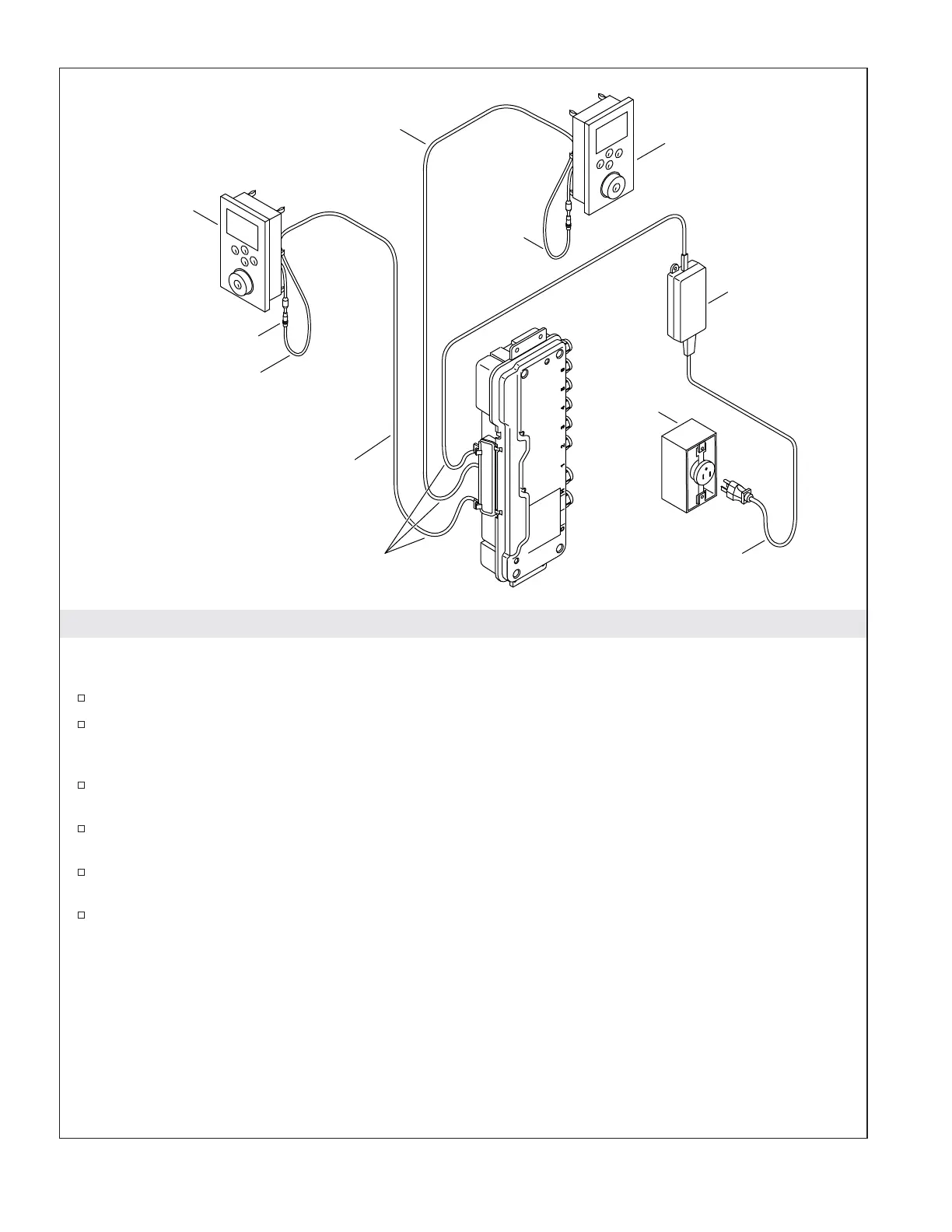

1. Plan the System Layout
NOTE: The original DTV system is shown above. The interface cables do not connect directly to the valve
for DTV II and DTV+.
Determine the locations of all required components before beginning installation.
DTV (shown above): The primary interface, with the 8-pin cable, is located inside the showering
enclosure. An optional auxiliary interface, with the 4-pin cable, can be installed outside the
showering enclosure.
DTV II: Refer to the K-638 media module installation guide for system layout and required
components.
DTV+: Refer to the K-97172 data cable installation guide for system layout and required
components.
When routing piping, the numbers marked at each valve outlet must correspond to the appropriate
shower fitting for pre-programmed or custom showering experiences to function properly.
Custom showering experiences must be programmed into the interface prior to use. Refer to the
″Homeowners Guide″ or ″Users guide″ for the interface or controller for your system.
Drip
Loop
Drip Loops
Drip Loop
Drip Loop
Outlet
Power Supply
30' (9.14 m)
8-Pin Interface Cable
Connector
Primary Interface
(Inside Shower)
30' (9.14 m)
4-Pin Interface Cable
Auxiliary Interface
(Outside Shower)
NOTE: Original DTV
System Shown
1043183-2-E 6 Kohler Co.
