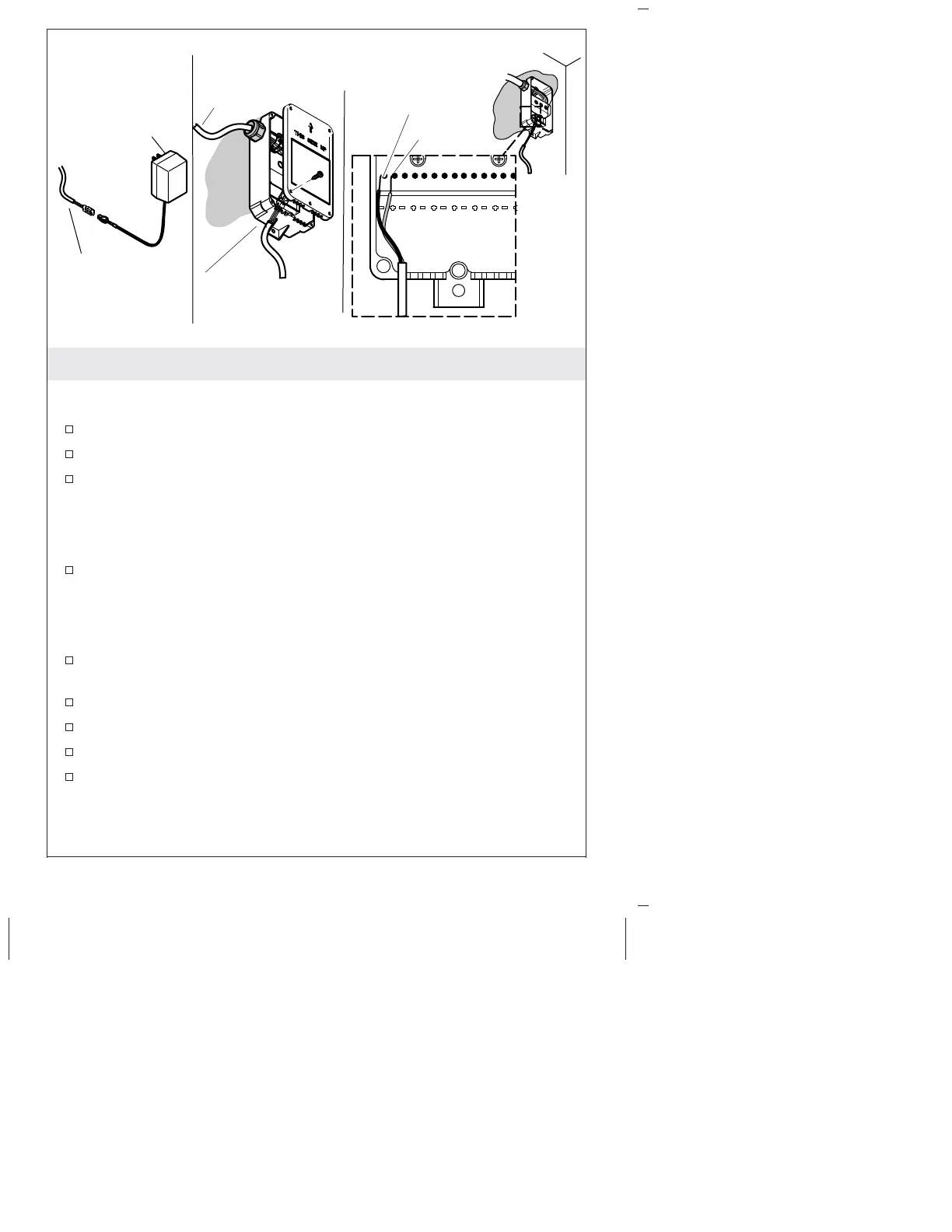

4. Install the AC Power Supply
Single Faucet Installations
Connect the faucet wire to the AC supply.
Plug the AC supply into the wall outlet.
Secure any excess wire under the counter.
IMPORTANT! The area in front of the sensor must be free of
objects during the 2 minute learning cycle or the faucet may not
function properly.
Allow 2 minutes for the sensor to cycle through the automatic
sensing distance.
Multiple Faucet Installations
Mount the AC supply under the counter using two (not supplied)
screws. Orient as shown.
Remove the cover.
Connect the faucet wire to the faucet.
If needed, cut and strip the AC supply wires to length.
Connect the stripped ends to the bottom terminal block (TB2) in
the supply box.
AC Gang
Supply
Black
Red
AC Supply
Faucet
Wire
Multiple Faucet
AC Supply
Single Faucet
Kohler Co. 7 1244026-2-A
