Operation and Maintenance Manual Operating fluids and maintenance
Daily, weekly and monthly maintenance work

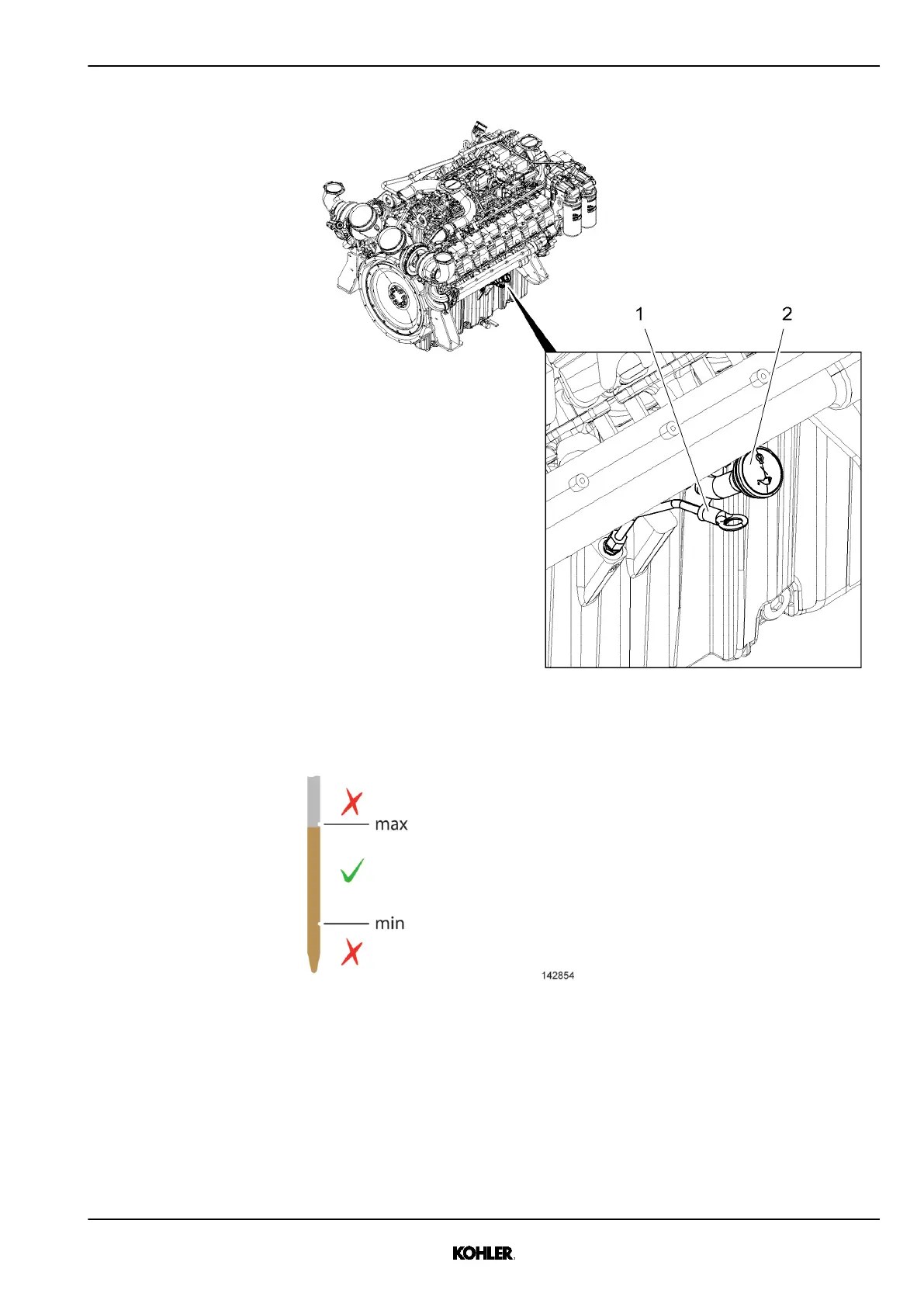

Fig. 49: Example of oil dipstick / oil filler neck
u
Pull out oil dipstick 1, wipe with a clean cloth and reinsert to the limit stop.
Fig. 50
u
Remove the oil dipstick again and check the oil level. The oil level must be
between the “min” and “max” marks.
If the oil level is too low:
u
Remove the oil refueling cap and top off with oil.
u
Fill the oil through the oil filler neck 2.
u
Do not fill the Diesel engine with oil to above the “max” mark.
u
Clean the refueling cap, place on the filler neck and tighten.
KD27V12 33521029401_3_1 en 2017-07-01
© 2017 by Kohler Co. All rights reserved.
67
