Operating fluids and maintenance Operation and Maintenance Manual
Daily, weekly and monthly maintenance work

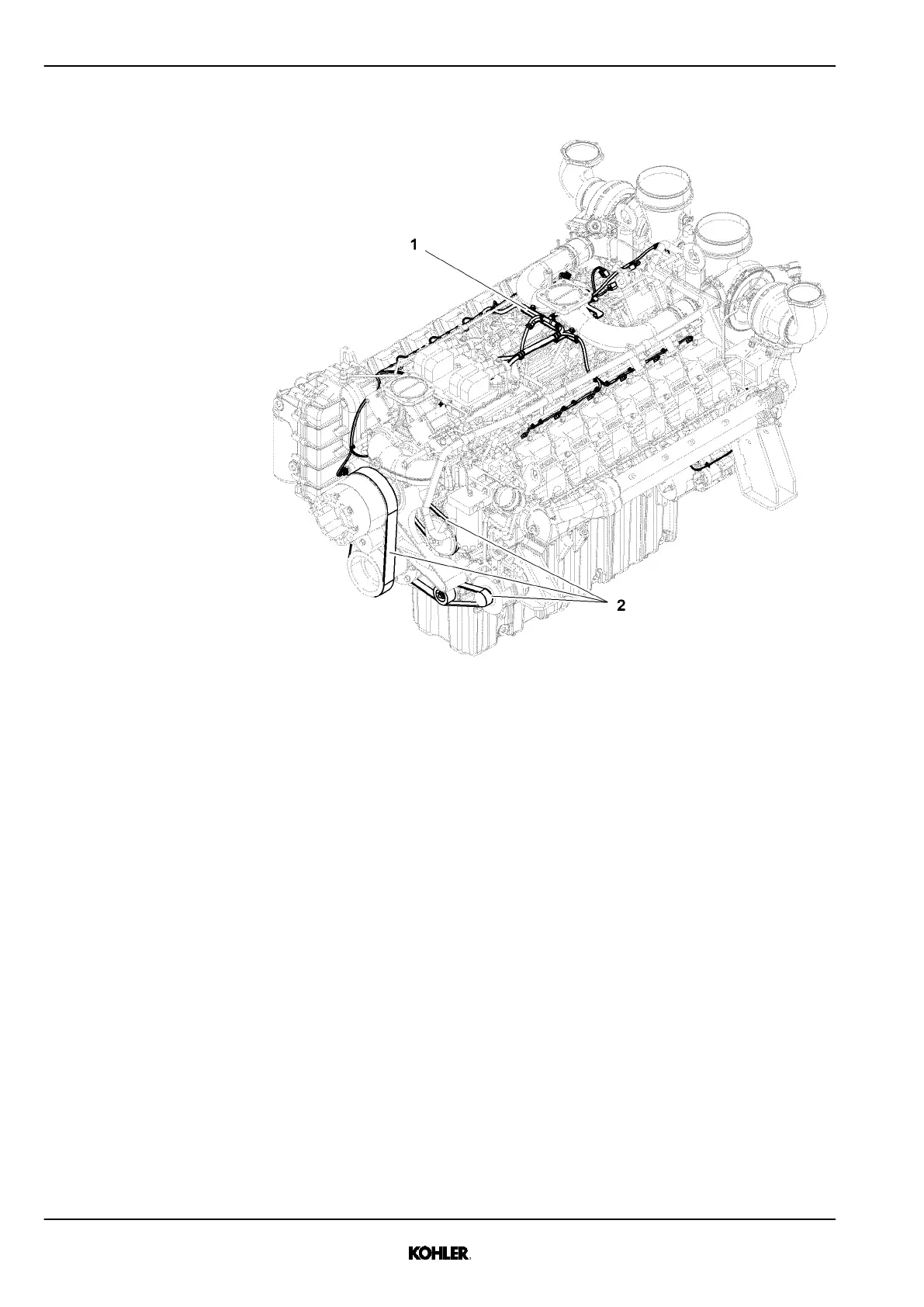

Fig. 48
1 Cable harness 2 V-ribbed belt
u
Visually check cable harness 1 for damage, friction-free installation, and
regulation-compliant fastening.
u
Visually check belt drive 2 for damage, friction-free installation, and regulation-
compliant fastening.
5.13.2 Checking the engine oil level
Oil dipstick and oil filler neck are located on the right as seen from the flywheel.
66
© 2017 by Kohler Co. All rights reserved.
KD27V12 33521029401_3_1 en 2017-07-01
