Operation and Maintenance Manual Operating fluids and maintenance
Maintenance activities

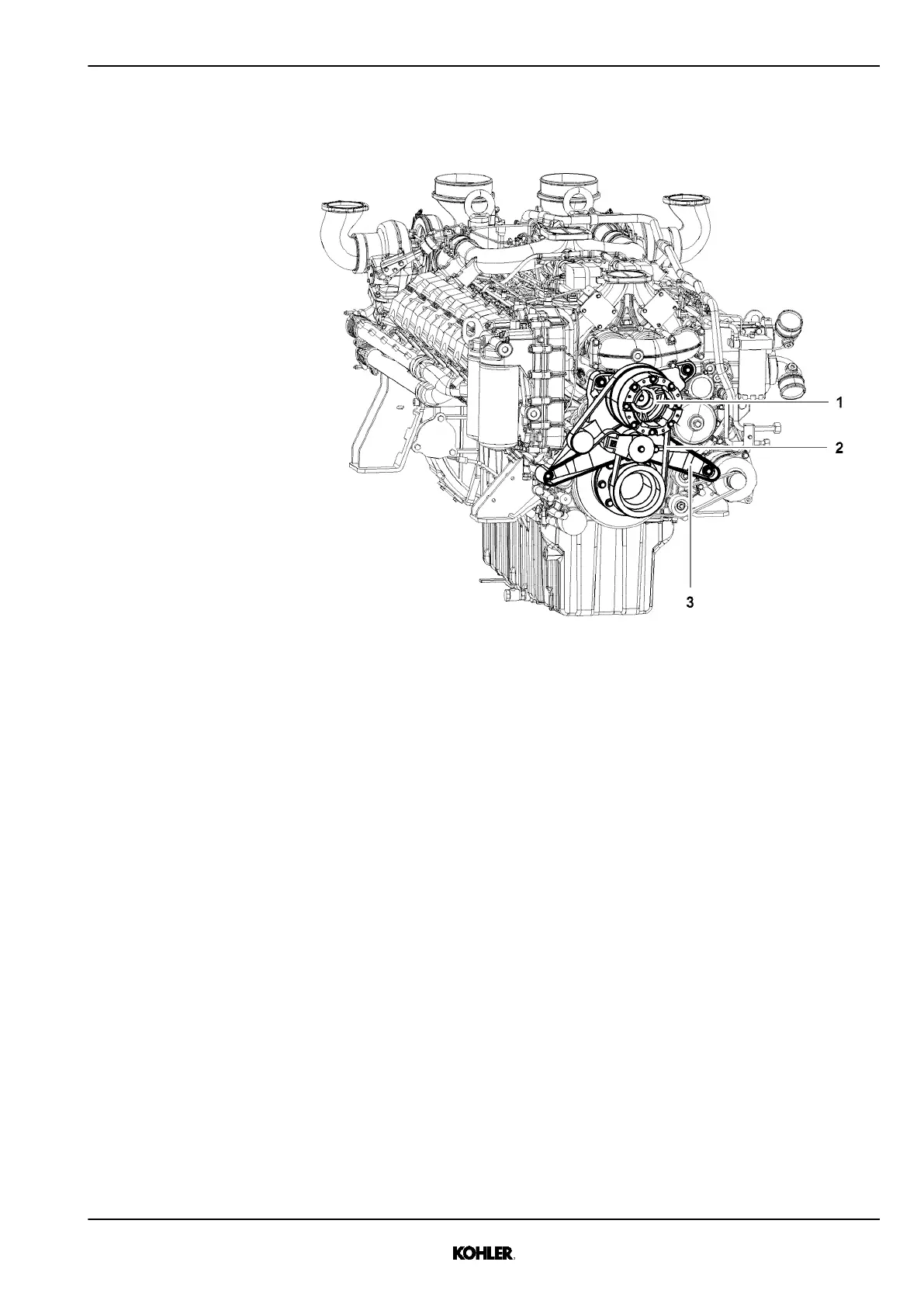

Fig. 67: V-ribbed belt drive
u
Remove fan from fan drive 1, see the generator set’s operating manual.
u
Remove the V-ribbed belt (fan) 2. (For the procedure, please refer to the
chapter “Check state of fan drive belt drive, replace if necessary”.)
u
Dismantle the bracket 3. (Please refer to the chapter on “Changing the
crankcase breather belt” for the procedure.)
KD27V12 33521029401_3_1 en 2017-07-01
© 2017 by Kohler Co. All rights reserved.
85
