131
R
P
U
P R
C
Fig. 11.10
Fig. 11.11
Fig. 11.12
C
H2J2
V
C
V
K
ED0053030410
INFORMATION ABOUT OPTIONAL COMPONENTS

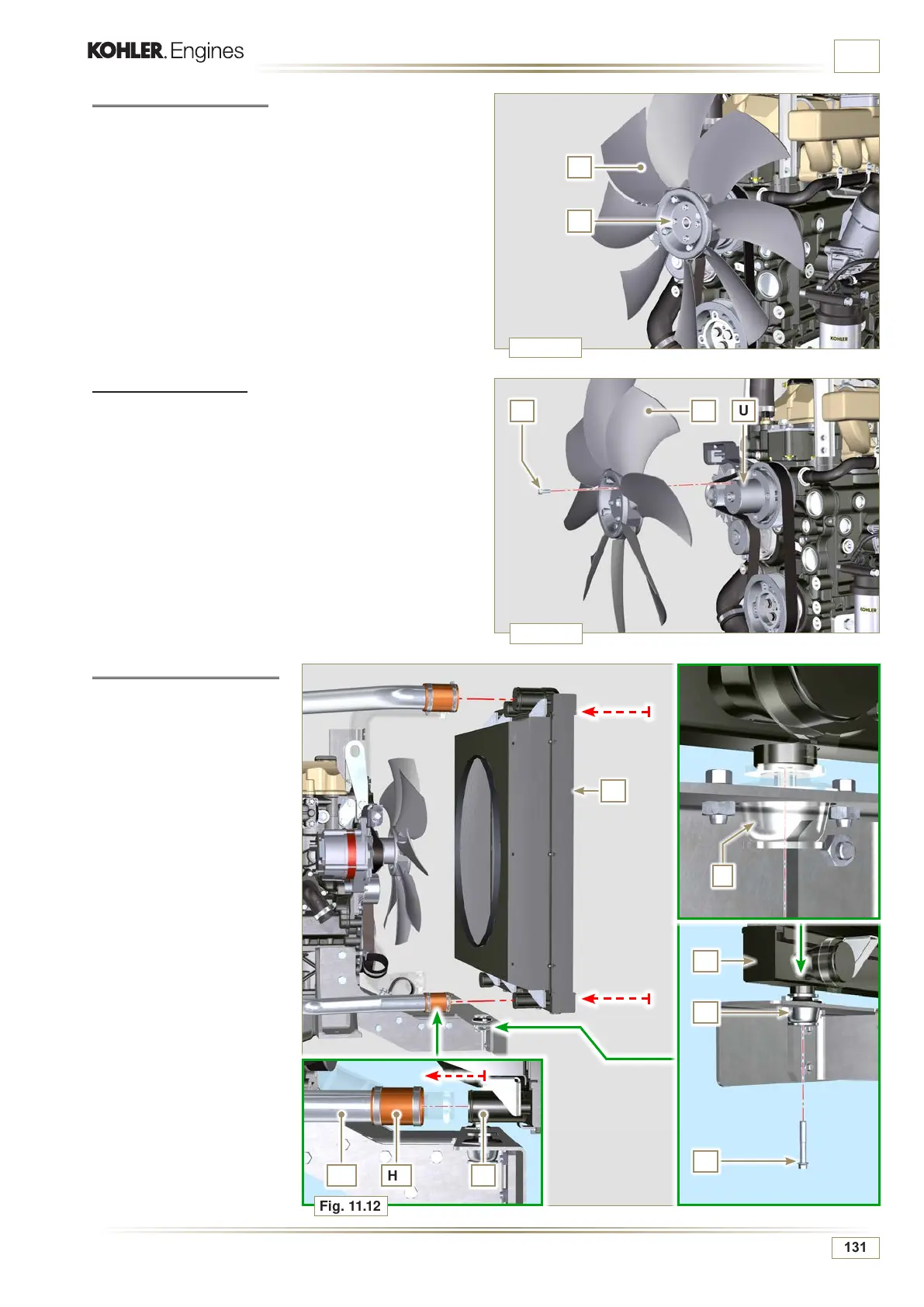

11.3.2 Fan disassembly
1 - Undo the screws P and remove the fan R.
11.3.3 Fan assembly
1 - Assemble the fan R on the pulley U.
2 - Fasten the fan R by using the screws P (tightening torque
at 10 Nm).
11.3.4 Radiator assembly
1 - Fit radiator C onto hose
H2, being careful not to
deform tube J2.
2 - Centre radiator C onto
vibration-dampening
devices V.
3 - Secure radiator C onto
vibration-dampening
devices V by means of
capscrews K (tightening
torque at 25 Nm).
