GENERAL INFORMATION
POS. DESCRIPTION
1 Oil filler cap
2 Turbocharger
3 Oil pressure switch
4 Starter motor
5 Oil steam separator
6 Oil drain plug
7 Engine identication name plate
8 Alternator
9 Coolant pump
10 Coolant temperature sensor
11 Thermostatic valve
12 Fuel injection pump

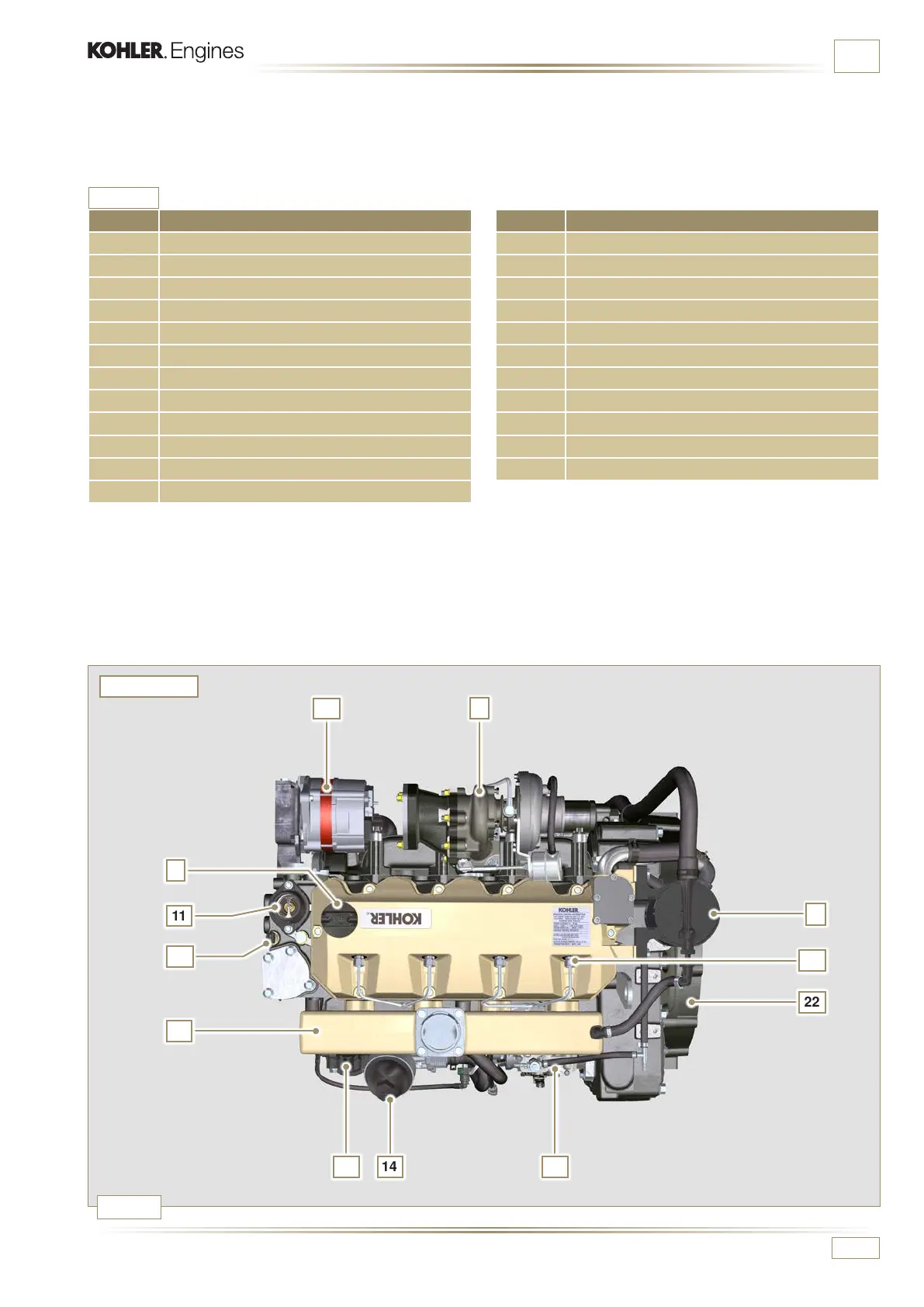

This paragraph illustrates all external components that are
present in the base conguration of the engine.
For components present on engines that differ from those
represented in these illustrations, refer to Chap. 11.
NOTE
: The illustrated components may differ from those
illustrated; the illustration is only as an example.
POS. DESCRIPTION
13 Oil Cooler
14 Lub. oil lter
15 Oil dipstick
16 Fuel lter
17 Crankshaft pulley (2
nd
PTO)
18 Flywheel (1
st
PTO)
19 Intake manifold
20 Waste Gate valve control actuator
21 Exhaust manifold
22 Flange bell
23 Injectors
UPPER VIEW
