TECHNICAL INFORMATION
2.9 Fuel system

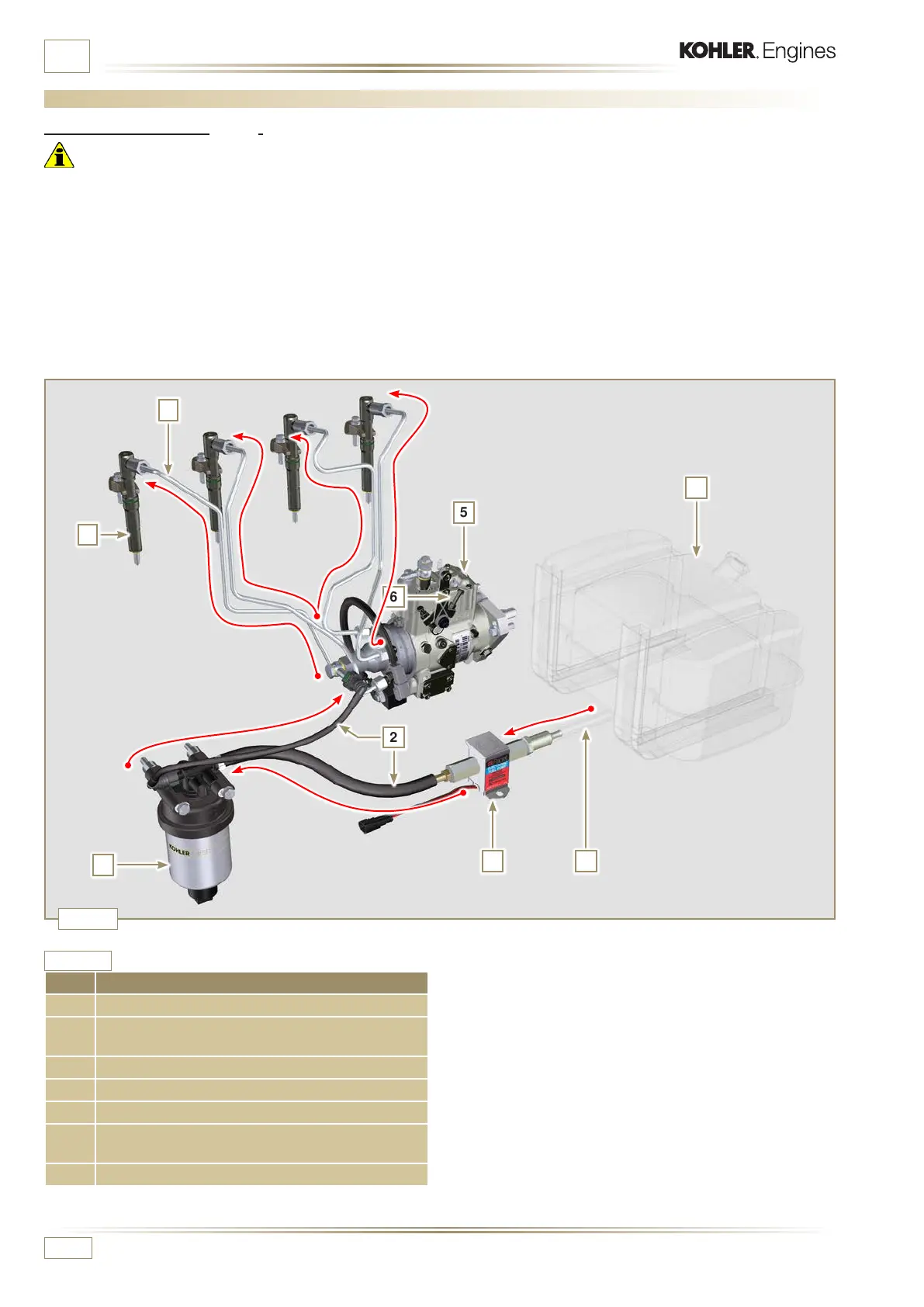

2.9.1 Supply system (Fig. 2.3)
The fuel supply system is under low pressure from the tank 1
to the injection pump 5.
NOTE:
The representation of fuel tank is purely indicative.
Component not necessarily supplied by KOHLER.
Important
The high pressure supply injection system is highly susceptible
to damage if the fuel is contaminated.
It is crucial that all components of the injection circuit are
thoroughly cleaned before the components are removed.
Thoroughly wash and clean the engine before maintenance.
Contamination in the fuel supply injection system may
cause a reduction in effectiveness / operation of engine fault
indication.
If the engine is cleaned with high pressure washer, then the
nozzle must be kept at a minimum distance of 200mm from
the surface, and not directed at electrical components and
connectors.
POS. DESCRIPTION
1 Fuel tank
2
Fuel supply hose from the tank to the injection
pump
3 Fuel lter
4 Electrical fuel feed pump
5 Injection pump
6
Injector high-pressure hose from the injection
pump to the injectors
7 Injectors
