TECHNICAL INFORMATION

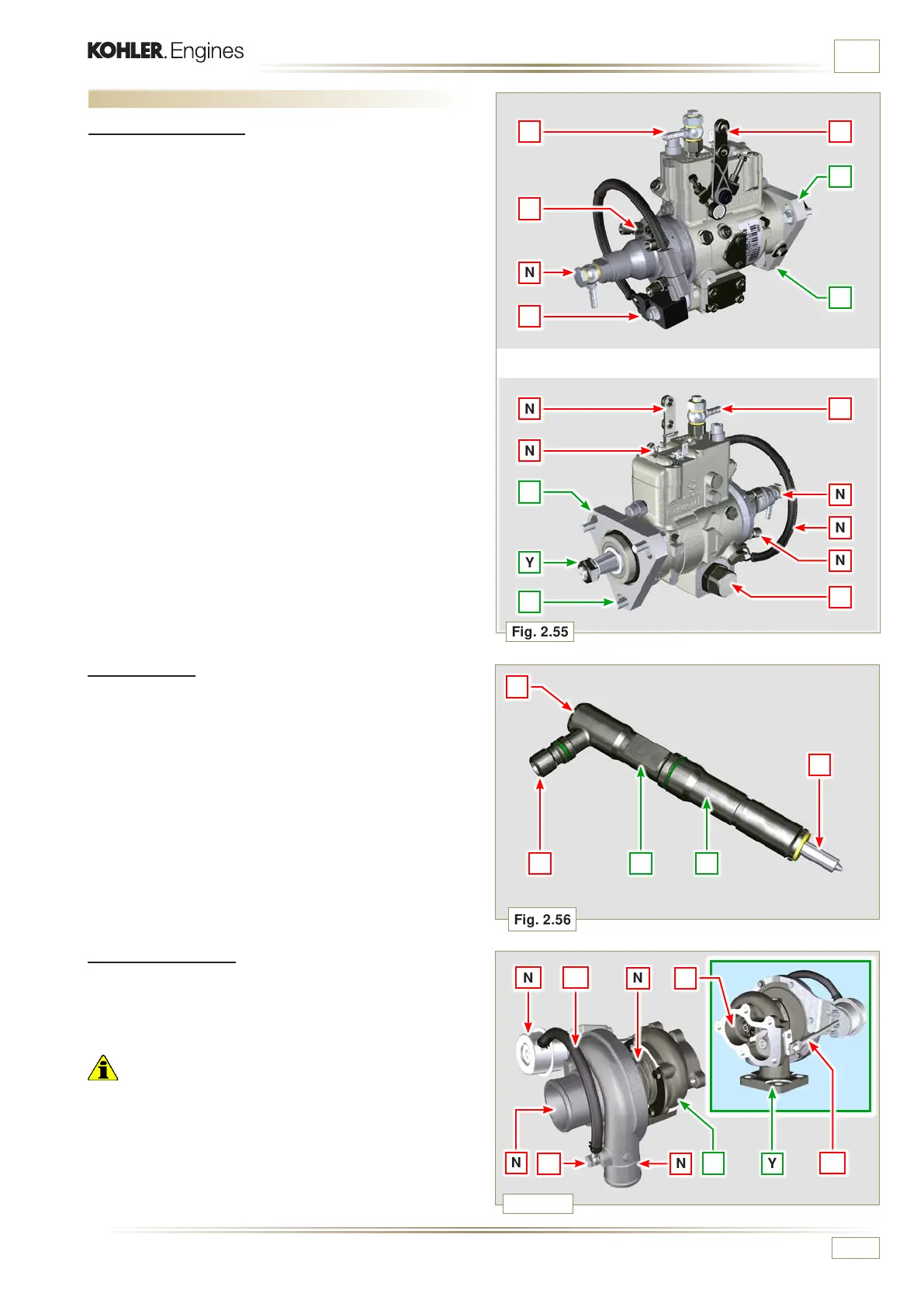

2.17 Components handling
2.17.1 Injection pump
- Only handle by means of the points marked by Y.
- It is forbidden to handle using the points marked by N.
2.17.2 Injector
- Only handle by means of the points marked by Y.
- It is forbidden to handle using the points marked by N.
2.17.4 Turbocharger
- Only handle by means of the points marked by Y.
- It is forbidden to handle using the points marked by N.
Important
• Refer to Par. 2.18.
